FLR2X-C High Strand Automotive Cables with Reduced Outer Diameter

blue

Automotive Cables Product Photos 004

FLR2X-C High Strand Automotive Cables with Reduced Outer Diameter



FLR2X-C Automotive Wire:

Nominal Cross-Section (mm2): 0.35/0.5/0.75/1/1.5/2/2.5/3/4/5/6 etc.

Diameter of Conductor (mm): 0.9/1.1/1.3/1.5/1.8/2/2.2/2.4/2.8/3.1/3.4 etc.



Color: Green/Yellow/White/Brown/Black/Red etc.



FLR2X-C Automotive Wire: Standard/Specification

ISO 6722, DIN 72551-6



FLR2X-C Automotive Wire: Application

For use in automotive and electric motor & generator applications. Rated for continuous use

from -40°C up to 125°C.



Lead Time:  Quantity(Meters): 1-10000; Time(days): 10

                    Quantity(Meters): >10000;  Time(days): To be negotiated



Customization:

                    Customized logo(Min. Order: 3000 Meters)

                    Customized packaging(Min. Order: 3000 Meters)



Our Automotive ISO 6722 Cable Product :

FLY;FLRY-A;FLRY-B;FLR2X-A;FLR2X-B;FLR2X-C;FLYY;FLRY11Y;FLYW;FLR9Y-A;FLR9Y-B;

FLR6Y-A;FLR6Y-B;FLRYY;FLYZ;FLYYF;FLR4Y;FLR5Y;FLR2X11Y;FLR7Y;FLR12Y;FLR13Y;

FLR14Y;FLR51Y;FLRYW125YW;FLRYBY FLRYCY;FL4G;FL4G11Y;FLR31Y;FLU6Y;FLRYW;

FL11Y FL91Y;FL2G;3TC-D;3SC-D;FL2X;FLYK;FLRYWd;FLALRY;FL2X11Y;FLR31Y11Y;

FLALRYW ... etc.

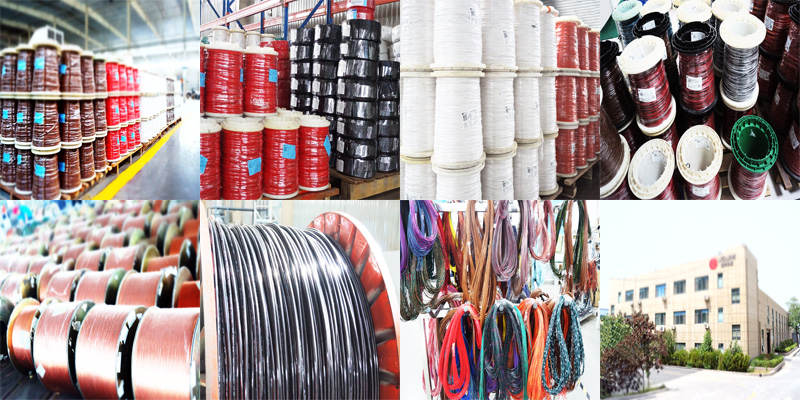

Automotive Cables Product Photos 003



The Cable Guide

Quality Policy

Automotive Wires and Cables Product Center

Contact Us





FLR2X-C Automotive Wire: Construction

Conductor: Soft-annealed electrolytic copper Cu-ETP1 according to DIN EN 13602, bare or tinned. Conductor
construction according to ISO 6722.
Insulation: Cross-linked PE(125°C )



FLR2X-C Automotive Wire: Product Features

Voltage rating 60 V d.c, 25 V a.c.
Temperature range: -40 °C to +105 °C (3000 h)
Oil resistant: Yes
Fuel resistant: Yes
Abrasion resistance: Yes
Flame resistance: Yes



FLR2X-C Automotive Wire: Technical Data

Nominal
Cross-Section
(mm2)
Strand No./Max.
Diameter
(N/mm)
Diameter of
Conductor
(mm)
Nominal Insulation
Thickness
(mm)
Nominal Overall
Diameter
(mm)
Conductor
Resistance
(20°C Ω/km)
Weight
Approx.
(kg/km)
0.35 19/0.16 0.9 0.25 1.2-1.4 54.4 4.5
0.5 26/0.16 1.1 0.28 1.4-1.6 37.1 6.6
0.75 38/0.16 1.3 0.3 1.7-1.9 24.7 9
1 54/0.16 1.5 0.3 1.9-2.1 18.5 11
1.5 76/0.16 1.8 0.3 2.2-2.4 12.7 16
2 105/0.16 2 0.35 2.5-2.8 9.42 21
2.5 140/0.16 2.2 0.35 2.7-3.0 7.6 26
3 160/0.16 2.4 0.4 3.1-3.4 6.15 33
4 224/0.16 2.8 0.4 3.4-3.7 4.71 42
5 250/0.16 3.1 0.4 3.9-4.2 3.94 52
6 320/0.16 3.4 0.4 4.0-4.3 3.14 61
