Single & Multi Pair, Collective Screen, Steel Wire Armoured, PVC Sheathed

Application

Suitable for connecting instruments and control systems for analogue or digital signal transmission.

Recommended for outdoor installation, on racks, trays, in conduits, in dry and wet locations, for direct burial.

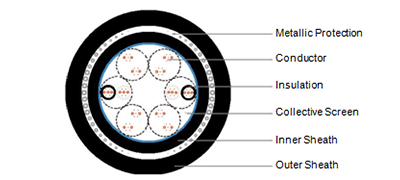

Construction

instrumentationcables 5

Conductor: Solid, stranded or flexible plain or metal coated copper in accordance with class1, 2 or 5 of
HD383 in the range of 0.5mm2 to 1.5mm2.

Insulation:                   PE, PVC or XLPE to EN 50290. Suitable alternative materials are under consideration.

Pair Identification:   Black&White color with number on the cores for multi pairs, start with 1 in the centre.

Wrapping:                   At least 1 layer of plastic tape.

Collective Screen: Aluminimum foil tape over a tinned copper drain wire.

Inner Sheath:             Polyvinyl chloride PVC, to EN 50290-2-22.

Metallic Protection: Round galvanised steel wires armour.

Outer Sheath:            Polyvinyl chloride PVC, to EN 50290-2-22.

Electrical data at 20°C


Character
Unit     Values
Conductor size nom. mm² 0.5 0.75   1.0 1.5
Conductor resistance max. Ω/km 36.7 25.0   18.5 12.3
Insulation resistance
PVC Insulation min. MΩ x km     100
PE/XLPE Insulaiton min. MΩ x km     5000
L/R (ratio) max. µH/Ω   25     40
Inductance max. mH/km     1
Mutual capacitance
PVC Insulation max. nF/m   150     160
PE/XLPE Insulation max. nF/m   75     85

Capacitance unbalance max. pF/500 m     500
Test voltage   V     1500
Operating voltage U0 / U max. V     300
