300/500V SR Insulated & Overall screened fire resistant control cables (2-4 cores & Multicores)

FR200P 052GSH-U (PH30/60) (CU/SR/OS/LSZH 300/500V Class 1)
FR200P 052GSH-R (PH30/60) (CU/SR/OS/LSZH 300/500V Class 2)

7 300500V sR Insulated Overall screened control cables 2 4 cores Multicores

Application:

The cables are primarily intended for use in the following applications:
BS 5266-1 for emergency lighting of premises
BS 5839-1 for fi re detection and fi re alarm systems in and around building
BS 5839-8 for voice alarm systems
BS 5839-9 for emergency voice communication systems.

STANDARDS:

Basic design to BS 7629-1

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);

BS 8434-1 (30mins); BS 5839-1 Clause 26 2d; CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

Circuit Integrity with mechanical shock

EN 50200(PH30/60); CEI 20-36/4-0

Circuit Integrity with mechanical shock & water spray

EN 50200 annex E

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical

Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;

VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation

(Vertically-mounted bundled wires

& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300/500 V

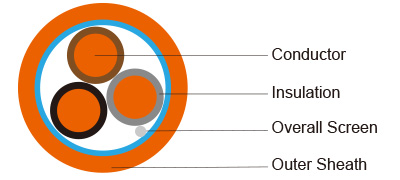

CABLE CONSTRUCTION

  1. Conductors: Plain annealed copper wire, solid according to IEC(EN) 60228 class 1, stranded

according to IEC(EN) 60228 class 2.

  1. Insulation: Fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.

Cabling: The cores are cabled together in concentric layers with suitable non-hygroscopic fillers.

  1. Overall screen: Aluminum/polyester tape with tinned copper drain wire.

Circuit Protective Conductor or Drain Wire: Uninsulated tinned copper conductor of the same

section and class as the insulated conductors in the 2-, 3-and 4-core cables. Drain wire of 0.5mm2

tinned copper conductor is provided in cables of more than 4 conductors.

  1. Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH

compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE

Insulation Colour:

2 cores blue -brown

3 cores brown -black -grey

4 cores blue -brown -black -grey

(Colour Code Up To 4 Cores In Accordance To Hd 308)

7 cores centre: brown 1st layer: brown -black -4 cores white

12 cores centre: brown -black -white 1st layer: brown -black -7 cores white

19 cores centre: brown

1st layer: brown -black -4 cores white

2nd layer: brown -black -10 cores white

(on request the cores can be one colour only, identified by printed numbers)

Sheath Colour: Orange (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -30°C – +90°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 6 x Overall Diameter

Electrical PROPERTIES

Dielectric test:

2000 V r.m.s. x 5' (core/core)

Insulation resistance

≥300 MΩ x km (at 20°C)

Short circuit temperature

350°C

CONSTRUCTION PARAMETERS

Cable Code

No. of Core X Cross Section

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.

Weight



mm2

mm

mm

mm

kg/km

2 core

FFX200 05SOZ1-U (PH30/60)

2x1.0

0.6

0.9

7.1

80

FFX200 05SOZ1-U (PH30/60)

2x1.5

0.7

0.9

8.0

95

FFX200 05SOZ1-U (PH30/60)

2x2.5

0.8

1.0

9.4

135

FFX200 05SOZ1-R (PH30/60)

2x1.5

0.7

0.9

8.4

106

FFX200 05SOZ1-R (PH30/60)

2x2.5

0.8

1.0

9.9

145

FFX200 05SOZ1-R (PH30/60)

2x4.0

0.8

1.1

11.5

210

3 core

FFX200 05SOZ1-U (PH30/60)

3x1.0

0.6

0.9

8.0

95

FFX200 05SOZ1-U (PH30/60)

3x1.5

0.7

0.9

8.5

115

FFX200 05SOZ1-U (PH30/60)

3x2.5

0.8

1.0

10.0

170

FFX200 05SOZ1-R (PH30/60)

3x1.5

0.7

0.9

8.9

134

FFX200 05SOZ1-R (PH30/60)

3x2.5

0.8

1.0

10.3

180

FFX200 05SOZ1-R (PH30/60)

3x4.0

0.8

1.1

12.2

260

4 core

FFX200 05SOZ1-U (PH30/60)

4x1.0

0.6

1.0

8.3

115

FFX200 05SOZ1-U (PH30/60)

4x1.5

0.7

1.0

9.4

150

FFX200 05SOZ1-U (PH30/60)

4x2.5

0.8

1.1

11.0

210

FFX200 05SOZ1-R (PH30/60)

4x1.5

0.7

1.0

9.8

166

FFX200 05SOZ1-R (PH30/60)

4x2.5

0.8

1.1

11.8

250

FFX200 05SOZ1-R (PH30/60)

4x4.0

0.8

1.2

13.5

330

7 core

FFX200 05SOZ1-U (PH30/60)

7x1.0

0.6

1.0

10.0

165

FFX200 05SOZ1-U (PH30/60)

7x1.5

0.7

1.1

11.3

225

12 core

FFX200 05SOZ1-U (PH30/60)

12x1.0

0.6

1.1

12.5

255

FFX200 05SOZ1-U (PH30/60)

12x1.5

0.7

1.2

14.5

350

19 core

FFX200 05SOZ1-U (PH30/60)

19x1.0

0.6

1.2

15.0

380

FFX200 05SOZ1-U (PH30/60)

19x1.5

0.7

1.3

17.0

520

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Nominal

Cross

Section

Area

Reference

Method 4

(enclosed in an conduit

insulated wall etc)

Reference Method 3

(enclosed in conduit on a wall or ceiling, or in trunking)

Reference Method 1 (clipped direct)

Reference Method 11

(on a perforated cable tray), or Reference Method

one 3-core

cable or one

4-core cable

3-phase a.c.

one 2-core cable single phase

a.c. or d.c.

one 3-core

cable or one 4-core cable 3-phase a.c.

one 2-core

cable singlephase

a.c. or d.c.

one 3-core cable or one 4-core cable

3-phase a.c.

one 2-core

cable singlephase

a.c. or

d.c.

one 3-core cable or one

4-core cable

3-phase a.c.

1

2

3

4

5

6

7

8

mm2

A

A

A

A

A

A

A

1.5

16.5

22

19.5

24

22

26

23

2.5

22

30

26

33

30

36

32

4

30

40

35

45

40

49

42

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area

2-core cable d.c.

2-core cable single- phase a.c

3-core or 4-core cable 3-phase a.c.

1

2

3

4

mm2

mV/A/m

mV/A/m

mV/A/m

1.5

31

31

27

2.5

19

19

16

4

12

12

10
