RE-2X(st)HSWAH 90°c / 500V
| STANDARDS | Basic design to EN 50288-7 |
| APPLICATION | Instrument cable minimizes noise and signal interference, delivering clean signals in harsh environments and general manufacturing operations. |
FIRE PERFORMANCE
|
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
|
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
|
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
|
Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
|
No Toxic gases |
NES 02-713; NF C 20-454 |
|
Sunlight Resistance |
UL 1581 section 1200 |
|
Oil Resistance** |
ICEA S-73-532 |
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.
| VOLTAGE RATING | 500V |

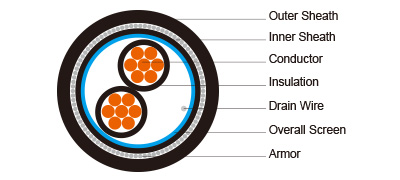

| CABLE CONSTRUCTION | |
| Conductor: | Annealed copper solid or plain copper stranded to IEC 60228 Class 2. |
| Insulation: | Extruded cross-linked XLPE compound, EN 50290. 2-29. |
| Overall Screen: | Aluminium/polyester tape with tinned copper drain wire, 0.5mm2 |
| Inner Sheath: | LSZH compound |
| Armouring: | Galvanised steel wire |
| Outer Sheath: | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
| COLOUR CODE | |
| Insulation: | Black numbered |
| Outer Sheath: | Black or blue for intrinsically safe systems |
| Physical AND THERMAL PROPERTIES | |
| Temperature Range During Operation (Fixed State): | -30°C – +90°C |
| Temperature Range During Installation (Mobile State): | -5°C – +50°C |
| Minimum Bending Radius: | 10 X Overall Diameter |
CONSTRUCTION PARAMETERS
|
Cable Code |
RE-2X(St)HSWAH |
|||||||
|
No. of Core x1xCross Section |
Nominal Insulation Thick- ness |
Nominal Inner Sheath Thick- ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick- ness |
Nominal Overall Diameter |
Approx. Weight |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
|
0.5mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
0.9 |
1.3 |
10.6 |
210 |
|
RE-2X(St)HSWAH 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
10.9 |
230 |
|
RE-2X(St)HSWAH 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7.0 |
0.9 |
1.3 |
11.4 |
253 |
|
RE-2X(St)HSWAH 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
0.9 |
1.3 |
12.0 |
283 |
|
RE-2X(St)HSWAH 8C0.5 |
8x1x0.5 |
0.55 |
1.0 |
9.1 |
0.9 |
1.4 |
13.7 |
344 |
|
RE-2X(St)HSWAH 10C0.5 |
10x1x0.5 |
0.55 |
1.0 |
10.4 |
0.9 |
1.4 |
15.0 |
399 |
|
RE-2X(St)HSWAH 12C0.5 |
12x1x0.5 |
0.55 |
1.0 |
10.7 |
0.9 |
1.4 |
15.3 |
442 |
|
RE-2X(St)HSWAH 14C0.5 |
14x1x0.5 |
0.55 |
1.0 |
11.3 |
0.9 |
1.4 |
15.9 |
474 |
|
RE-2X(St)HSWAH 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
0.9 |
1.4 |
16.4 |
505 |
|
RE-2X(St)HSWAH 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
0.9 |
1.5 |
18.1 |
569 |
|
RE-2X(St)HSWAH 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
0.9 |
1.5 |
19.5 |
642 |
|
RE-2X(St)HSWAH 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15.0 |
0.9 |
1.5 |
19.8 |
808 |
|
RE-2X(St)HSWAH 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
0.9 |
1.5 |
20.5 |
848 |
|
RE-2X(St)HSWAH 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
963 |
|
RE-2X(St)HSWAH 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
1014 |
|
0.75mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
10.9 |
230 |
|
RE-2X(St)HSWAH 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
11.3 |
247 |
|
RE-2X(St)HSWAH 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
0.9 |
1.3 |
11.8 |
278 |
|
RE-2X(St)HSWAH 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
0.9 |
1.4 |
12.7 |
322 |
|
RE-2X(St)HSWAH 8C0.75 |
8x1x0.75 |
0.55 |
1.0 |
9.7 |
0.9 |
1.4 |
14.3 |
383 |
|
RE-2X(St)HSWAH 10C0.75 |
10x1x0.75 |
0.55 |
1.0 |
11.1 |
0.9 |
1.4 |
15.7 |
461 |
|
RE-2X(St)HSWAH 12C0.75 |
12x1x0.75 |
0.55 |
1.0 |
11.5 |
0.9 |
1.4 |
16.1 |
477 |
|
RE-2X(St)HSWAH 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
0.9 |
1.5 |
17.0 |
527 |
|
RE-2X(St)HSWAH 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
0.9 |
1.5 |
17.7 |
572 |
|
RE-2X(St)HSWAH 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
0.9 |
1.5 |
19.1 |
669 |
|
RE-2X(St)HSWAH 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16.0 |
0.9 |
1.5 |
20.8 |
877 |
|
RE-2X(St)HSWAH 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
0.9 |
1.6 |
21.3 |
929 |
|
RE-2X(St)HSWAH 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
986 |
|
RE-2X(St)HSWAH 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
1.25 |
1.6 |
23.9 |
1102 |
|
RE-2X(St)HSWAH 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
1.25 |
1.6 |
24.8 |
1181 |
|
1.0mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
11.3 |
247 |
|
RE-2X(St)HSWAH 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
0.9 |
1.3 |
11.7 |
270 |
|
RE-2X(St)HSWAH 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
0.9 |
1.4 |
12.5 |
299 |
|
RE-2X(St)HSWAH 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
0.9 |
1.4 |
13.2 |
342 |
|
RE-2X(St)HSWAH 8C1.0 |
8x1x1.0 |
0.55 |
1.0 |
10.3 |
0.9 |
1.4 |
14.9 |
424 |
|
RE-2X(St)HSWAH 10C1.0 |
10x1x1.0 |
0.55 |
1.0 |
11.9 |
0.9 |
1.4 |
16.5 |
514 |
|
RE-2X(St)HSWAH 12C1.0 |
12x1x1.0 |
0.55 |
1.0 |
12.2 |
0.9 |
1.5 |
17.0 |
548 |
|
RE-2X(St)HSWAH 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13.0 |
0.9 |
1.5 |
17.8 |
590 |
|
RE-2X(St)HSWAH 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
649 |
|
RE-2X(St)HSWAH 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
0.9 |
1.5 |
20.0 |
864 |
|
RE-2X(St)HSWAH 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17.0 |
0.9 |
1.6 |
22.0 |
1005 |
|
RE-2X(St)HSWAH 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
1.25 |
1.6 |
23.1 |
1058 |
|
RE-2X(St)HSWAH 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18.0 |
1.25 |
1.6 |
23.7 |
1113 |
|
RE-2X(St)HSWAH 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
1.25 |
1.6 |
25.3 |
1271 |
|
RE-2X(St)HSWAH 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
1.25 |
1.7 |
26.3 |
1351 |
|
1.3mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
0.9 |
1.3 |
11.8 |
275 |
|
RE-2X(St)HSWAH 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
0.9 |
1.3 |
12.3 |
?? |
|
RE-2X(St)HSWAH 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
0.9 |
1.4 |
13.1 |
340 |
|
RE-2X(St)HSWAH 5C1.3 |
5x1x1.3 |
0.6 |
1.0 |
9.5 |
0.9 |
1.4 |
14.1 |
383 |
|
RE-2X(St)HSWAH 8C1.3 |
8x1x1.3 |
0.6 |
1.0 |
11.2 |
0.9 |
1.4 |
15.8 |
483 |
|
RE-2X(St)HSWAH 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
0.9 |
1.5 |
18.0 |
578 |
|
RE-2X(St)HSWAH 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
0.9 |
1.5 |
18.4 |
633 |
|
RE-2X(St)HSWAH 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
0.9 |
1.5 |
19.1 |
698 |
|
RE-2X(St)HSWAH 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15.0 |
0.9 |
1.5 |
19.8 |
870 |
|
RE-2X(St)HSWAH 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
1014 |
|
RE-2X(St)HSWAH 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
1.25 |
1.6 |
24.4 |
1163 |
|
RE-2X(St)HSWAH 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
1.25 |
1.6 |
25.0 |
1227 |
|
RE-2X(St)HSWAH 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20.0 |
1.25 |
1.6 |
25.7 |
1305 |
|
RE-2X(St)HSWAH 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
1.25 |
1.7 |
27.5 |
1504 |
|
RE-2X(St)HSWAH 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
1.25 |
1.7 |
28.6 |
1584 |
|
1.5mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
0.9 |
1.3 |
12.1 |
279 |
|
RE-2X(St)HSWAH 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
0.9 |
1.4 |
12.7 |
322 |
|
RE-2X(St)HSWAH 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
0.9 |
1.4 |
13.4 |
347 |
|
RE-2X(St)HSWAH 5C1.5 |
5x1x1.5 |
0.6 |
1.0 |
9.8 |
0.9 |
1.4 |
14.4 |
392 |
|
RE-2X(St)HSWAH 8C1.5 |
8x1x1.5 |
0.6 |
1.0 |
11.6 |
0.9 |
1.4 |
16.2 |
518 |
|
RE-2X(St)HSWAH 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
614 |
|
RE-2X(St)HSWAH 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
0.9 |
1.5 |
18.9 |
670 |
|
RE-2X(St)HSWAH 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
0.9 |
1.5 |
19.6 |
742 |
|
RE-2X(St)HSWAH 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
0.9 |
1.5 |
20.4 |
925 |
|
RE-2X(St)HSWAH 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
1062 |
|
RE-2X(St)HSWAH 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
1.25 |
1.6 |
25.3 |
1218 |
|
RE-2X(St)HSWAH 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
1.25 |
1.6 |
25.8 |
1289 |
|
RE-2X(St)HSWAH 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
1.25 |
1.7 |
26.7 |
1418 |
|
RE-2X(St)HSWAH 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
1.25 |
1.7 |
28.5 |
1586 |
|
RE-2X(St)HSWAH 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
1.25 |
1.7 |
29.5 |
1687 |
|
2.5mm2, Multicore |
||||||||
|
RE-2X(St)HSWAH 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
0.9 |
1.4 |
13.5 |
364 |
|
RE-2X(St)HSWAH 3C2.5 |
3x1x2.5 |
0.7 |
1.0 |
9.7 |
0.9 |
1.4 |
14.3 |
389 |
|
RE-2X(St)HSWAH 4C2.5 |
4x1x2.5 |
0.7 |
1.0 |
10.5 |
0.9 |
1.4 |
15.1 |
430 |
|
RE-2X(St)HSWAH 5C2.5 |
5x1x2.5 |
0.7 |
1.0 |
11.9 |
0.9 |
1.4 |
16.5 |
547 |
|
RE-2X(St)HSWAH 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
0.9 |
1.5 |
18.7 |
684 |
|
RE-2X(St)HSWAH 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
0.9 |
1.6 |
21.3 |
952 |
|
RE-2X(St)HSWAH 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
1012 |
|
RE-2X(St)HSWAH 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
1.25 |
1.6 |
23.4 |
1126 |
|
RE-2X(St)HSWAH 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
1.25 |
1.6 |
24.6 |
1252 |
|
RE-2X(St)HSWAH 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
1.25 |
1.7 |
27.0 |
1456 |
|
RE-2X(St)HSWAH 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
1.25 |
1.7 |
29.5 |
1644 |
|
RE-2X(St)HSWAH 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
1.25 |
1.8 |
30.2 |
1811 |
|
RE-2X(St)HSWAH 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1.25 |
1.8 |
31.3 |
2154 |
|
RE-2X(St)HSWAH 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1.25 |
1.8 |
33.3 |
2477 |
|
RE-2X(St)HSWAH 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1.25 |
1.9 |
34.8 |
2614 |
Note : Other conductor sizes & core configurations are available upon request.
Electrical PROPERTIES
|
Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
2.5 |
|
|
Insulation thickness (nominal) |
mm |
0.55 |
0.55 |
0.55 |
0.6 |
0.6 |
0.7 |
|
|
Conductor resistance (20°C) |
Ω/km |
36.7 |
25.0 |
18.5 |
14.2 |
12.3 |
7.4 |
|
|
Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
||||||
|
Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
||||||
|
Capacitance unbalance(1 kHz) |
pF/500 m (Max.) |
500 |
||||||
|
Inductance |
mH/km(Max.) |
1 |
||||||
|
L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
40 |
|
|
Operating voltage |
V |
500 |
||||||
|
Test Voltage Urms |
Core to Core |
V |
2000 |
|||||
|
Core to Screen |
V |
2000 |
||||||
