| Application | These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free. |
| Standards | IEC 60092-350/351/353/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

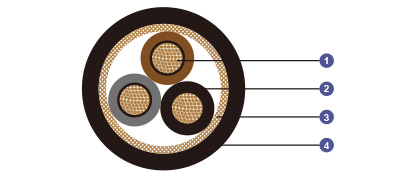

| Construction | |
| Conductors | Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request. |
| Insulation | XLPE |
| Inner Covering | Lapping |
| Armour | Copper wire braid |
| Outer Sheath | LSOH (SHF1). SHF2 can be offered upon request |
| Core Identification | Two cores: Blue, Brown. Three cores: Brown, Black, Grey. Four cores: Blue, Brown, Black, Grey. Five cores: Blue, Brown, Black, Grey, Black. Multi cores: White with black numbers With yellow/green (optional) Two cores + earth (3G): Yellow/green, Blue, Brown. Three cores + earth (4G): Yellow/green, Brown, Black, Grey. Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD Temperature Range: -30℃ ~ +80℃ |
Dimensions and Weight
Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
2C1.5 |
2×1.5 |
0.7 |
1.1 |
9.3 |
120 |
|
2C2.5 |
2×2.5 |
0.7 |
1.1 |
10.1 |
150 |
|
2C4 |
2×4 |
0.9 |
1.2 |
12.2 |
195 |
|
2C6 |
2×6 |
0.9 |
1.2 |
13.7 |
275 |
|
2C10 |
2×10 |
0.9 |
1.3 |
15.7 |
385 |
|
2C16 |
2×16 |
0.9 |
1.4 |
18.4 |
595 |
|
2C25 |
2×25 |
0.9 |
1.5 |
21.3 |
820 |
|
2C35 |
2×35 |
0.9 |
1.5 |
23.9 |
1140 |
|
2C50 |
2×50 |
1.0 |
1.5 |
26.7 |
1500 |
|
3C1.5(3G1.5) |
3×(G)1.5 |
0.7 |
1.1 |
9.8 |
145 |
|
3C2.5(3G2.5) |
3×(G)2.5 |
0.7 |
1.1 |
10.7 |
180 |
|
3C4 |
3×4 |
0.9 |
1.2 |
12.9 |
245 |
|
3C6 |
3×6 |
0.9 |
1.3 |
14.7 |
345 |
|
3C10 |
3×10 |
0.9 |
1.3 |
16.6 |
490 |
|
3C16 |
3×16 |
0.9 |
1.4 |
19.5 |
755 |
|
3C25 |
3×25 |
0.9 |
1.6 |
22.7 |
1095 |
|
3C35 |
3×35 |
0.9 |
1.6 |
24.9 |
1340 |
|
3C35S |
3×35 (sector shaped) |
0.9 |
1.6 |
22.0 |
1320 |
|
3C50 |
3×50 |
1.0 |
1.6 |
27.1 |
1750 |
|
3C50S |
3×50 (sector shaped) |
1.0 |
1.6 |
24.8 |
1820 |
|
3C70S |
3×70 (sector shaped) |
1.1 |
2.0 |
29.7 |
2575 |
|
3C95S |
3×95 (sector shaped) |
1.1 |
2.1 |
33.1 |
3435 |
|
3C120S |
3×120 (sector shaped) |
1.2 |
2.2 |
36.0 |
4070 |
|
3C150S |
3×150 (sector shaped) |
1.4 |
2.4 |
40.9 |
5435 |
|
4C1.5(4G1.5) |
4×(G)1.5 |
0.7 |
1.1 |
10.5 |
170 |
|
4C2.5(4G2.5) |
4×(G)2.5 |
0.7 |
1.2 |
11.8 |
225 |
|
4C4 |
4×4 |
0.9 |
1.3 |
14.7 |
335 |
|
4C6 |
4×6 |
0.9 |
1.3 |
16.0 |
425 |
|
4C10 |
4×10 |
0.9 |
1.4 |
18.3 |
625 |
|
4C16 |
4×16 |
0.9 |
1.5 |
21.5 |
935 |
|
4C25 |
4×25 |
0.9 |
1.6 |
24.4 |
1345 |
|
4C35 |
4×35 |
0.9 |
1.7 |
27.5 |
1715 |
|
4C35S |
4×35 (sector shaped) |
0.9 |
1.7 |
24.3 |
1700 |
|
4C50 |
4×50 |
1.0 |
1.6 |
29.9 |
2400 |
|
4C50S |
4×50(sector shaped) |
1.0 |
1.6 |
27.3 |
2300 |
|
4C70S |
4×70(sector shaped) |
1.1 |
2.1 |
32.8 |
3250 |
|
4C95S |
4×95(sector shaped) |
1.1 |
2.2 |
37.3 |
4390 |
|
5C1.5(5G1.5) |
5×(G)1.5 |
0.7 |
1.2 |
11.7 |
205 |
|
5C2.5(5G2.5) |
5×(G)2.5 |
0.7 |
1.2 |
12.8 |
265 |
|
5G4 |
5G4 |
0.9 |
1.2 |
15.2 |
360 |
|
6C1.5 |
6×1.5 |
0.7 |
1.2 |
12.7 |
240 |
|
7C1.5 |
7×1.5 |
0.7 |
1.2 |
12.7 |
260 |
|
8C1.5 |
8×1.5 |
0.7 |
1.2 |
15.5 |
340 |
|
10C1.5 |
10×1.5 |
0.7 |
1.3 |
16.2 |
390 |
|
12C1.5 |
12×1.5 |
0.7 |
1.4 |
16.9 |
440 |
|
16C1.5 |
16×1.5 |
0.7 |
1.4 |
18.6 |
550 |
|
19C1.5 |
19×1.5 |
0.7 |
1.5 |
19.7 |
620 |
|
24C1.5 |
24×1.5 |
0.7 |
1.6 |
22.9 |
800 |
|
5C2.5 |
5×2.5 |
0.7 |
1.2 |
12.9 |
290 |
|
7C2.5 |
7×2.5 |
0.7 |
1.2 |
14.6 |
390 |
|
12C2.5 |
12×2.5 |
0.7 |
1.4 |
18.7 |
610 |
|
19C2.5 |
19×2.5 |
0.7 |
1.5 |
21.8 |
870 |
|
24C2.5 |
24×2.5 |
0.7 |
1.6 |
25.6 |
1100 |
|
27C2.5 |
27×2.5 |
0.7 |
1.7 |
26.1 |
1200 |
|
37C2.5 |
37×2.5 |
0.7 |
1.9 |
29.2 |
1560 |
