| Application | These cables are used for fixed installations on ships and offshore units in all locations. These cables are flame retardant, low smoke & halogen free. |
| Standards | DIN 89160/98 IEC 60092-353 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

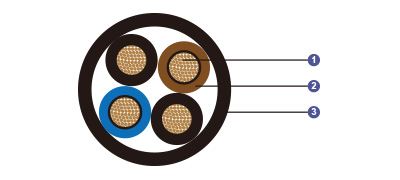

| Construction | |
| Conductors | Class 2 stranded copper conductor. |
| Insulation | HEPR. |
| Outer Sheath | LSOH (SHF1). |
| Core Identification | Two cores: Black, Blue. Three cores: Black, Blue, Brown. Four cores: Black, Blue, Brown, Black. Five cores: Black, Blue, Brown, Black, Black. Multi cores: All cores natural coloured, printed with numbers, starting in center with number 1. Cables with 3 cores and more also with green/yellow core (has to be stated in order). |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm) Temperature Range: -20℃ ~ +75℃ |
Dimensions and Weight
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
M092-0.6/1KV-1G7H-R-2C1.5 |
2×1.5 |
0.7 |
1.0 |
8.4 |
130 |
|
M092-0.6/1KV-1G7H-R-2C2.5 |
2×2.5 |
0.7 |
1.1 |
9.3 |
170 |
|
M092-0.6/1KV-1G7H-R-2C4 |
2×4 |
0.7 |
1.1 |
10.5 |
220 |
|
M092-0.6/1KV-1G7H-R-2C6 |
2×6 |
0.7 |
1.2 |
11.8 |
280 |
|
M092-0.6/1KV-1G7H-R-2C10 |
2×10 |
0.7 |
1.2 |
13.8 |
410 |
|
M092-0.6/1KV-1G7H-R-2C16 |
2×16 |
0.7 |
1.3 |
16.2 |
590 |
|
M092-0.6/1KV-1G7H-R-2C25 |
2×25 |
0.9 |
1.5 |
20.1 |
880 |
|
M092-0.6/1KV-1G7H-R-3C1.5 |
3×1.5 |
0.7 |
1.1 |
8.9 |
160 |
|
M092-0.6/1KV-1G7H-R-3C2.5 |
3×2.5 |
0.7 |
1.1 |
9.9 |
210 |
|
M092-0.6/1KV-1G7H-R-3C4 |
3×4 |
0.7 |
1.1 |
11.1 |
270 |
|
M092-0.6/1KV-1G7H-R-3C6 |
3×6 |
0.7 |
1.2 |
12.6 |
350 |
|
M092-0.6/1KV-1G7H-R-3C10 |
3×10 |
0.7 |
1.3 |
14.8 |
510 |
|
M092-0.6/1KV-1G7H-R-3C16 |
3×16 |
0.7 |
1.4 |
17.3 |
750 |
|
M092-0.6/1KV-1G7H-R-3C25 |
3×25 |
0.9 |
1.5 |
21.5 |
1130 |
|
M092-0.6/1KV-1G7H-R-3C35 |
3×35 |
0.9 |
1.6 |
24.2 |
1500 |
|
M092-0.6/1KV-1G7H-R-3C50 |
3×50 |
1.0 |
1.8 |
28.5 |
1970 |
|
M092-0.6/1KV-1G7H-R-3C70 |
3×70 |
1.1 |
2.0 |
32.9 |
2770 |
|
M092-0.6/1KV-1G7H-R-3C95 |
3×95 |
1.1 |
2.1 |
37.4 |
3680 |
|
M092-0.6/1KV-1G7H-R-3C120 |
3×120 |
1.2 |
2.3 |
41.6 |
4580 |
|
M092-0.6/1KV-1G7H-R-4C1.5 |
4×1.5 |
0.7 |
1.1 |
9.8 |
200 |
|
M092-0.6/1KV-1G7H-R-4C2.5 |
4×2.5 |
0.7 |
1.1 |
10.9 |
250 |
|
M092-0.6/1KV-1G7H-R-4C4 |
4×4 |
0.7 |
1.2 |
12.3 |
330 |
|
M092-0.6/1KV-1G7H-R-4C6 |
4×6 |
0.7 |
1.2 |
13.9 |
440 |
|
M092-0.6/1KV-1G7H-R-4C10 |
4×10 |
0.7 |
1.3 |
16.3 |
660 |
|
M092-0.6/1KV-1G7H-R-4C16 |
4×16 |
0.7 |
1.4 |
19.2 |
950 |
|
M092-0.6/1KV-1G7H-R-4C25 |
4×25 |
0.9 |
1.6 |
23.9 |
1460 |
|
M092-0.6/1KV-1G7H-R-4C35 |
4×35 |
0.9 |
1.7 |
27.0 |
1920 |
|
M092-0.6/1KV-1G7H-R-4C50 |
4×50 |
1.0 |
1.9 |
30.5 |
2520 |
|
M092-0.6/1KV-1G7H-R-4C70 |
4×70 |
1.1 |
2.1 |
36.7 |
3530 |
|
M092-0.6/1KV-1G7H-R-4C95 |
4×95 |
1.1 |
2.3 |
41.7 |
4730 |
|
M092-0.6/1KV-1G7H-R-5C1.5 |
5×1.5 |
0.7 |
1.1 |
12.3 |
230 |
|
M092-0.6/1KV-1G7H-R-5C2.5 |
5×2.5 |
0.7 |
1.2 |
13.3 |
300 |
|
M092-0.6/1KV-1G7H-R-7C1.5 |
7×1.5 |
0.7 |
1.2 |
13.3 |
290 |
|
M092-0.6/1KV-1G7H-R-10C1.5 |
10×1.5 |
0.7 |
1.3 |
15.8 |
360 |
|
M092-0.6/1KV-1G7H-R-12C1.5 |
12×1.5 |
0.7 |
1.3 |
16.3 |
410 |
|
M092-0.6/1KV-1G7H-R-14C1.5 |
14×1.5 |
0.7 |
1.4 |
17.0 |
470 |
|
M092-0.6/1KV-1G7H-R-16C1.5 |
16×1.5 |
0.7 |
1.4 |
18.0 |
530 |
|
M092-0.6/1KV-1G7H-R-19C1.5 |
19×1.5 |
0.7 |
1.4 |
19.0 |
610 |
|
M092-0.6/1KV-1G7H-R-24C1.5 |
24×1.5 |
0.7 |
1.5 |
22.0 |
760 |
