| Application | These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels. |
| Standards | IEC 60092-350/351/376/359 IEC 60331-21 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

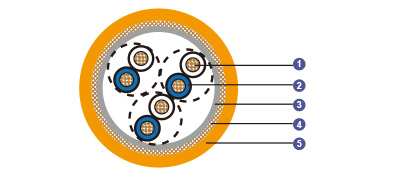

| Construction | |
| Conductors | Class 2 stranded copper conductor. |
| Insulation | Mica tape + XLPE. |
| Cabling Element | Pair/Triple. |
| Inner Covering | Lapped polyester tape. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). |
| Core Identification | Pair: White/blue with printed pair number and core number. Triple: White/blue/red with printed triple number. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 6×OD Temperature Range: -30℃ ~ +80℃ |
Dimensions and Weight
|
Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|
|
mm² |
mm |
mm |
mm |
kg/km |
|
M092FR-RE-M2XCH -1P0.75 |
1×2×0.75 |
0.5 |
1.3 |
9.1 |
120 |
|
M092FR-RE-M2XCH -2P0.75 |
2×2×0.75 |
0.5 |
1.3 |
10.2 |
150 |
|
M092FR-RE-M2XCH -3P0.75 |
3×2×0.75 |
0.5 |
1.8 |
14.6 |
280 |
|
M092FR-RE-M2XCH -4P0.75 |
4×2×0.75 |
0.5 |
1.8 |
15.4 |
320 |
|
M092FR-RE-M2XCH -5P0.75 |
5×2×0.75 |
0.5 |
1.9 |
17.2 |
390 |
|
M092FR-RE-M2XCH -6P0.75 |
6×2×0.75 |
0.5 |
1.9 |
18.3 |
440 |
|
M092FR-RE-M2XCH -7P0.75 |
7×2×0.75 |
0.5 |
1.9 |
18.3 |
460 |
|
M092FR-RE-M2XCH -8P0.75 |
8×2×0.75 |
0.5 |
2.0 |
19.6 |
520 |
|
M092FR-RE-M2XCH -10P0.75 |
10×2×0.75 |
0.5 |
2.0 |
21.7 |
620 |
|
M092FR-RE-M2XCH -12P0.75 |
12×2×0.75 |
0.5 |
2.1 |
22.8 |
700 |
|
M092FR-RE-M2XCH -14P0.75 |
14×2×0.75 |
0.5 |
2.1 |
23.6 |
770 |
|
M092FR-RE-M2XCH -16P0.75 |
16×2×0.75 |
0.5 |
2.2 |
25.4 |
870 |
|
M092FR-RE-M2XCH -19P0.75 |
19×2×0.75 |
0.5 |
2.2 |
27.0 |
990 |
|
M092FR-RE-M2XCH -20P0.75 |
20×2×0.75 |
0.5 |
2.2 |
27.0 |
1010 |
|
M092FR-RE-M2XCH -24P0.75 |
24×2×0.75 |
0.5 |
2.4 |
30.9 |
1240 |
|
M092FR-RE-M2XCH -30P0.75 |
30×2×0.75 |
0.5 |
2.5 |
33.5 |
1480 |
|
M092FR-RE-M2XCH -37P0.75 |
37×2×0.75 |
0.5 |
2.6 |
35.9 |
1730 |
|
M092FR-RE-M2XCH -1P1.0 |
1×2×1.0 |
0.5 |
1.3 |
9.5 |
130 |
|
M092FR-RE-M2XCH -2P1.0 |
2×2×1.0 |
0.5 |
1.3 |
10.7 |
170 |
|
M092FR-RE-M2XCH -3P1.0 |
3×2×1.0 |
0.5 |
1.8 |
15.3 |
320 |
|
M092FR-RE-M2XCH -4P1.0 |
4×2×1.0 |
0.5 |
1.8 |
16.2 |
360 |
|
M092FR-RE-M2XCH -5P1.0 |
5×2×1.0 |
0.5 |
1.9 |
18.1 |
440 |
|
M092FR-RE-M2XCH -6P1.0 |
6×2×1.0 |
0.5 |
2.0 |
19.5 |
510 |
|
M092FR-RE-M2XCH -7P1.0 |
7×2×1.0 |
0.5 |
2.0 |
19.5 |
530 |
|
M092FR-RE-M2XCH -8P1.0 |
8×2×1.0 |
0.5 |
2.0 |
20.7 |
590 |
|
M092FR-RE-M2XCH -10P1.0 |
10×2×1.0 |
0.5 |
2.1 |
23.2 |
730 |
|
M092FR-RE-M2XCH -12P1.0 |
12×2×1.0 |
0.5 |
2.1 |
24.1 |
810 |
|
M092FR-RE-M2XCH -14P1.0 |
14×2×1.0 |
0.5 |
2.2 |
25.1 |
900 |
|
M092FR-RE-M2XCH-16P1.0 |
16×2×1.0 |
0.5 |
2.2 |
26.9 |
1010 |
|
M092FR-RE-M2XCH -19P1.0 |
19×2×1.0 |
0.5 |
2.3 |
28.8 |
1160 |
|
M092FR-RE-M2XCH -20P1.0 |
20×2×1.0 |
0.5 |
2.3 |
28.8 |
1190 |
|
M092FR-RE-M2XCH -24P1.0 |
24×2×1.0 |
0.5 |
2.5 |
33.0 |
1460 |
|
M092FR-RE-M2XCH -30P1.0 |
30×2×1.0 |
0.5 |
2.6 |
35.8 |
1740 |
|
M092FR-RE-M2XCH -37P1.0 |
37×2×1.0 |
0.5 |
2.9 |
38.8 |
2140 |
|
M092FR-RE-M2XCH -1P1.5 |
1×2×1.5 |
0.6 |
1.3 |
10.5 |
160 |
|
M092FR-RE-M2XCH -2P1.5 |
2×2×1.5 |
0.6 |
1.4 |
12.1 |
220 |
|
M092FR-RE-M2XCH -3P1.5 |
3×2×1.5 |
0.6 |
1.9 |
17.4 |
400 |
|
M092FR-RE-M2XCH -4P1.5 |
4×2×1.5 |
0.6 |
1.9 |
18.4 |
470 |
|
M092FR-RE-M2XCH -5P1.5 |
5×2×1.5 |
0.6 |
2.0 |
20.6 |
570 |
|
M092FR-RE-M2XCH -6P1.5 |
6×2×1.5 |
0.6 |
2.1 |
22.2 |
660 |
|
M092FR-RE-M2XCH -7P1.5 |
7×2×1.5 |
0.6 |
2.1 |
22.2 |
700 |
|
M092FR-RE-M2XCH -8P1.5 |
8×2×1.5 |
0.6 |
2.1 |
23.6 |
780 |
|
M092FR-RE-M2XCH -10P1.5 |
10×2×1.5 |
0.6 |
2.2 |
26.5 |
950 |
|
M092FR-RE-M2XCH -12P1.5 |
12×2×1.5 |
0.6 |
2.3 |
27.7 |
1070 |
|
M092FR-RE-M2XCH -14P1.5 |
14×2×1.5 |
0.6 |
2.3 |
28.7 |
1180 |
|
M092FR-RE-M2XCH -16P1.5 |
16×2×1.5 |
0.6 |
2.4 |
31.0 |
1350 |
|
M092FR-RE-M2XCH -19P1.5 |
19×2×1.5 |
0.6 |
2.5 |
33.2 |
1560 |
|
M092FR-RE-M2XCH -20P1.5 |
20×2×1.5 |
0.6 |
2.5 |
33.2 |
1590 |
|
M092FR-RE-M2XCH -24P1.5 |
24×2×1.5 |
0.6 |
2.9 |
38.5 |
2060 |
|
M092FR-RE-M2XCH -30P1.5 |
30×2×1.5 |
0.6 |
3.0 |
41.8 |
2450 |
|
M092FR-RE-M2XCH -37P1.5 |
37×2×1.5 |
0.6 |
3.1 |
44.7 |
2880 |
|
M092FR-RE-M2XCH -1T0.75 |
1×3×0.75 |
0.5 |
1.3 |
9.5 |
130 |
|
M092FR-RE-M2XCH -2T0.75 |
2×3×0.75 |
0.5 |
1.8 |
14.9 |
290 |
|
M092FR-RE-M2XCH -3T0.75 |
3×3×0.75 |
0.5 |
1.8 |
15.7 |
340 |
|
M092FR-RE-M2XCH -4T0.75 |
4×3×0.75 |
0.5 |
1.9 |
17.2 |
410 |
|
M092FR-RE-M2XCH -5T0.75 |
5×3×0.75 |
0.5 |
1.9 |
18.8 |
480 |
|
M092FR-RE-M2XCH -6T0.75 |
6×3×0.75 |
0.5 |
2.0 |
21.2 |
590 |
|
M092FR-RE-M2XCH -7T0.75 |
7×3×0.75 |
0.5 |
2.0 |
21.2 |
620 |
|
M092FR-RE-M2XCH -8T0.75 |
8×3×0.75 |
0.5 |
2.1 |
22.8 |
700 |
|
M092FR-RE-M2XCH -10T0.75 |
10×3×0.75 |
0.5 |
2.2 |
25.7 |
860 |
|
M092FR-RE-M2XCH -12T0.75 |
12×3×0.75 |
0.5 |
2.2 |
27.0 |
970 |
|
M092FR-RE-M2XCH -14T0.75 |
14×3×0.75 |
0.5 |
2.3 |
28.3 |
1080 |
|
M092FR-RE-M2XCH-16T0.75 |
16×3×0.75 |
0.5 |
2.3 |
29.9 |
1200 |
|
M092FR-RE-M2XCH-19T0.75 |
19×3×0.75 |
0.5 |
2.4 |
32.3 |
1390 |
|
M092FR-RE-M2XCH -20T0.75 |
20×3×0.75 |
0.5 |
2.5 |
33.0 |
1460 |
|
M092FR-RE-M2XCH -24T0.75 |
24×3×0.75 |
0.5 |
2.6 |
35.9 |
1710 |
|
M092FR-RE-M2XCH -30T0.75 |
30×3×0.75 |
0.5 |
2.9 |
40.1 |
2170 |
|
M092FR-RE-M2XCH -32T0.75 |
32×3×0.75 |
0.5 |
3.0 |
41.7 |
2320 |
|
M092FR-RE-M2XCH -1T1.0 |
1×3×1.0 |
0.5 |
1.3 |
9.9 |
150 |
|
M092FR-RE-M2XCH -2T1.0 |
2×3×1.0 |
0.5 |
1.8 |
15.6 |
320 |
|
M092FR-RE-M2XCH -3T1.0 |
3×3×1.0 |
0.5 |
1.8 |
16.5 |
380 |
|
M092FR-RE-M2XCH -4T1.0 |
4×3×1.0 |
0.5 |
1.9 |
18.1 |
470 |
|
M092FR-RE-M2XCH -5T1.0 |
5×3×1.0 |
0.5 |
2.0 |
20.1 |
560 |
|
M092FR-RE-M2XCH -6T1.0 |
6×3×1.0 |
0.5 |
2.1 |
22.6 |
680 |
|
M092FR-RE-M2XCH -7T1.0 |
7×3×1.0 |
0.5 |
2.1 |
22.6 |
720 |
|
M092FR-RE-M2XCH -8T1.0 |
8×3×1.0 |
0.5 |
2.1 |
24.1 |
810 |
|
M092FR-RE-M2XCH -10T1.0 |
10×3×1.0 |
0.5 |
2.2 |
27.2 |
990 |
|
M092FR-RE-M2XCH -12T1.0 |
12×3×1.0 |
0.5 |
2.3 |
28.8 |
1130 |
|
M092FR-RE-M2XCH -14T1.0 |
14×3×1.0 |
0.5 |
2.3 |
30.0 |
1260 |
|
M092FR-RE-M2XCH -16T1.0 |
16×3×1.0 |
0.5 |
2.4 |
31.9 |
1410 |
|
M092FR-RE-M2XCH-19T1.0 |
19×3×1.0 |
0.5 |
2.5 |
34.4 |
1640 |
|
M092FR-RE-M2XCH -20T1.0 |
20×3×1.0 |
0.5 |
2.5 |
35.0 |
1700 |
|
M092FR-RE-M2XCH -24T1.0 |
24×3×1.0 |
0.5 |
2.9 |
38.8 |
2110 |
|
M092FR-RE-M2XCH-30T1.0 |
30×3×1.0 |
0.5 |
3.0 |
42.8 |
2560 |
|
M092FR-RE-M2XCH -32T1.0 |
32×3×1.0 |
0.5 |
3.1 |
44.4 |
2730 |
|
M092FR-RE-M2XCH -1T1.5 |
1×3×1.5 |
0.6 |
1.3 |
11.0 |
180 |
|
M092FR-RE-M2XCH -2T1.5 |
2×3×1.5 |
0.6 |
1.9 |
17.7 |
410 |
|
M092FR-RE-M2XCH -3T1.5 |
3×3×1.5 |
0.6 |
1.9 |
18.7 |
490 |
|
M092FR-RE-M2XCH-4T1.5 |
4×3×1.5 |
0.6 |
2.0 |
20.6 |
610 |
|
M092FR-RE-M2XCH -5T1.5 |
5×3×1.5 |
0.6 |
2.1 |
22.9 |
740 |
|
M092FR-RE-M2XCH -6T1.5 |
6×3×1.5 |
0.6 |
2.2 |
25.8 |
890 |
|
M092FR-RE-M2XCH -7T1.5 |
7×3×1.5 |
0.6 |
2.2 |
25.8 |
950 |
|
M092FR-RE-M2XCH -8T1.5 |
8×3×1.5 |
0.6 |
2.3 |
27.7 |
1070 |
|
M092FR-RE-M2XCH -10T1.5 |
10×3×1.5 |
0.6 |
2.4 |
31.3 |
1320 |
|
M092FR-RE-M2XCH -12T1.5 |
12×3×1.5 |
0.6 |
2.5 |
33.2 |
1520 |
|
M092FR-RE-M2XCH -14T1.5 |
14×3×1.5 |
0.6 |
2.5 |
34.6 |
1690 |
|
M092FR-RE-M2XCH -16T1.5 |
16×3×1.5 |
0.6 |
2.8 |
37.3 |
1990 |
|
M092FR-RE-M2XCH -19T1.5 |
19×3×1.5 |
0.6 |
2.9 |
40.3 |
2310 |
|
M092FR-RE-M2XCH -20T1.5 |
20×3×1.5 |
0.6 |
3.0 |
41.1 |
2420 |
|
M092FR-RE-M2XCH -24T1.5 |
24×3×1.5 |
0.6 |
3.1 |
44.7 |
2840 |
|
M092FR-RE-M2XCH -30T1.5 |
30×3×1.5 |
0.6 |
3.3 |
49.5 |
3460 |
|
M092FR-RE-M2XCH -32T1.5 |
32×3×1.5 |
0.6 |
3.3 |
51.2 |
3670 |
*: 2 pairs are assembled as a quad.
