| Applications | These cables are designed for use on electric mining locomotives and other mobile equipment of the gathering-reel type, where the cable must withstand constant flexing and reeling. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No.96 |

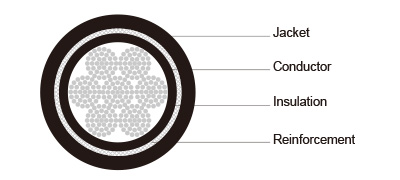

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Reinforcement | A layer of polyester braid, applied between the insulation and jacket for mechanical strength. |
| Jacket | Heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon reques. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
|
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
1×8 |
133 |
0.060 |
1.5 |
0.060 |
1.5 |
0.44 |
11.2 |
150 |
223 |
83 |
|
1×6 |
168 |
0.060 |
1.5 |
0.080 |
2.0 |
0.51 |
13.0 |
205 |
305 |
109 |
|
1×4 |
259 |
0.060 |
1.5 |
0.080 |
2.0 |
0.57 |
14.5 |
280 |
417 |
145 |
|
1×3 |
329 |
0.060 |
1.5 |
0.095 |
2.4 |
0.63 |
16.0 |
350 |
521 |
167 |
|
1×2 |
259 |
0.060 |
1.5 |
0.095 |
2.4 |
0.66 |
16.8 |
370 |
550 |
192 |
|
1×1 |
329 |
0.080 |
2.0 |
0.110 |
2.8 |
0.74 |
18.8 |
500 |
744 |
223 |
|
1×1/0 |
259 |
0.080 |
2.0 |
0.110 |
2.8 |
0.77 |
19.6 |
550 |
818 |
258 |
|
1×2/0 |
329 |
0.080 |
2.0 |
0.110 |
2.8 |
0.82 |
20.1 |
660 |
982 |
298 |
|
1×3/0 |
427 |
0.080 |
2.0 |
0.125 |
3.2 |
0.87 |
22.1 |
830 |
1235 |
345 |
|
1×4/0 |
532 |
0.080 |
2.0 |
0.125 |
3.2 |
0.93 |
23.6 |
950 |
1413 |
400 |
|
1×250 |
608 |
0.095 |
2.4 |
0.140 |
3.6 |
1.03 |
26.2 |
1240 |
1845 |
445 |
|
1×300 |
741 |
0.095 |
2.4 |
0.140 |
3.6 |
1.09 |
27.7 |
1400 |
2083 |
500 |
|
1×350 |
855 |
0.095 |
2.4 |
0.155 |
3.9 |
1.15 |
29.2 |
1480 |
2202 |
552 |
|
1×500 |
1221 |
0.095 |
2.4 |
0.155 |
3.9 |
1.31 |
33.3 |
2140 |
3184 |
695 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
