| Applications | These cables are designed for guse with mobile miningequipment such as continuous miners, drills,cutters, loading machines and AC shuttle cars.Type W cables are for applications where bare groundingconductors are not required or desired. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

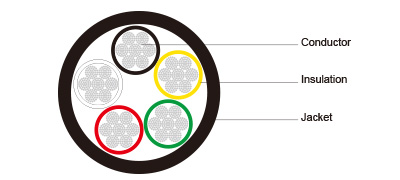

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Sheath | Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
5×8 |
133 |
0.06 |
1.5 |
0.140 |
3.6 |
1.07 |
27.2 |
776 |
1154 |
50 |
|
5×6 |
133 |
0.06 |
1.5 |
0.155 |
3.9 |
1.24 |
31.5 |
1024 |
1524 |
68 |
|
5×4 |
259 |
0.06 |
1.5 |
0.155 |
3.9 |
1.36 |
35.2 |
1432 |
2131 |
88 |
|
5×2 |
259 |
0.06 |
1.5 |
0.170 |
4.3 |
1.56 |
39.8 |
2051 |
3052 |
116 |
|
5×1 |
259 |
0.06 |
1.5 |
0.190 |
4.8 |
1.85 |
47.1 |
2665 |
3967 |
136 |
|
5×1/0 |
266 |
0.08 |
2.0 |
0.205 |
5.2 |
1.98 |
50.4 |
3406 |
5069 |
150 |
|
5×2/0 |
342 |
0.08 |
2.0 |
0.205 |
5.2 |
2.13 |
54.1 |
3596 |
5351 |
172 |
|
5×3/0 |
418 |
0.08 |
2.0 |
0.220 |
5.6 |
2.27 |
57.6 |
4728 |
7035 |
200 |
|
5×4/0 |
532 |
0.08 |
2.0 |
0.220 |
5.6 |
2.46 |
62.6 |
5512 |
8203 |
230 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
