| Applications | These heavy duty cables are designed for applications such as longwall shearers, continuous miners and mobile equipment such as shovels, dredges and drills. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

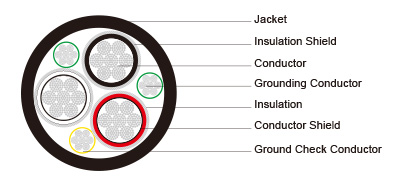

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Conducting tape + Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 8×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×1 |
259 |
5 |
8 |
0.260 |
6.6 |
0.265 |
6.7 |
2.95 |
74.9 |
5290 |
7872 |
191 |
|
3×1/0 |
259 |
4 |
8 |
0.260 |
6.6 |
0.265 |
6.7 |
3.05 |
77.5 |
5800 |
8631 |
218 |
|
3×2/0 |
329 |
3 |
8 |
0.260 |
6.6 |
0.280 |
7.1 |
3.20 |
81.3 |
6515 |
9695 |
249 |
|
3×3/0 |
413 |
2 |
8 |
0.260 |
6.6 |
0.280 |
7.1 |
3.33 |
84.6 |
7215 |
10737 |
286 |
|
3×4/0 |
532 |
1 |
8 |
0.260 |
6.6 |
0.295 |
7.5 |
3.50 |
88.9 |
8250 |
12277 |
327 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
