UL Industrial Cables XHHW/XLPO, 3-core, Type TC Power Cable

American Standard UL Industrial Cables XHHWXLPO 3 core Type TC Power Cable

Application and Description XHHW/XLPO, type TC Power Cable is used to supply power to motors, or for connection to otder power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial or in underground ducts and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used in wet and dry locations at temperatures not to exceed 90°C.

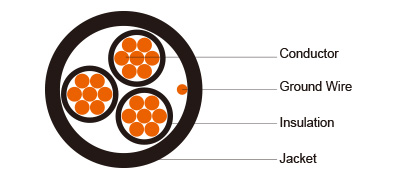

Cable Construction
Conductor Stranded bare annealed copper (Type XHHW-2)
Insulation Flame-retardant and moisture resistant Cross-Linked Polyetdylene (FRXLPE)
Ground Wire bare annealed copper (Type XHHW-2)
Jacket Flame retardant, moisture and sunlight resistant XLPO (LSOH is available upon request)
Color upon request, black is preferable
Technical Characteristics - UL 44 -Thermoset-Insulated Wires and Cables
- UL 1277 - Electrical Power and Control Tray Cables
- UL 1581 - Flame Exposure Test (VW-1)
- ICEA S-58-679 Metdod 4
- UL 1685 - Flame Exposure Test
- ICEA T-29-520 - Vertical Cable Tray Flame Test
- IEEE 383 (IEEE 1202/FT4) - Flame Test
- ICEA S-95-658 (NEMA WC 70) construction requirements

Cable Parameter

AWG OR KCMIL

STRAND

GROUND WIRE SIZE AWG

NOMINAL JACKET THICKNESS INCH/MM

NOMINAL OVERALL DIAMETER INCH/MM

CABLE WEIGHT

LBS/KFT KG/KM

8

7

10

0.060

1.52

0.681

17.30

330

491

6

7

8

0.060

1.52

0.766

19.46

468

697

4

7

8

0.060

1.52

0.797

20.24

606

901

2

7

6

0.080

2.03

0.96

24.38

954

1420

1

19

6

0.080

2.03

1.1

27.94

1173

1746

1/0

19

6

0.080

2.03

1.186

30.12

1421

2115

2/0

19

6

0.080

2.03

1.279

32.49

1704

2536

3/0

19

4

0.080

2.03

1.385

35.18

2135

3177

4/0

19

4

0.080

2.03

1.506

38.25

2580

3839

250

37

4

0.080

2.03

1.653

41.99

3021

4496

300

37

3

0.110

2.79

1.827

46.41

3684

5481

350

37

3

0.110

2.79

1.935

49.15

4219

6277

400

37

3

0.110

2.79

2.032

51.61

4747

7064

500

37

2

0.110

2.79

2.214

56.24

5755

8564

750

61

1

0.110

2.79

2.663

67.64

8543

12711
