Harmonized Standard Industrial Cables H03V2V2-F/H03V2V2H2-F

Harmonized Standard Industrial Cables H03V2V2 FH03V2V2H2 F 1

Harmonized Standard Industrial Cables H03V2V2 FH03V2V2H2 F 2

Application and Description These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheatd compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use: 90°C.While high temperature use, skin contact must be avoided.
Standard and Approval HD 21.12; HD 308 S2 DIN VDE 0281 part 1, part 12; DIN VDE 0293 part 308; DIN VDE 0295 CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

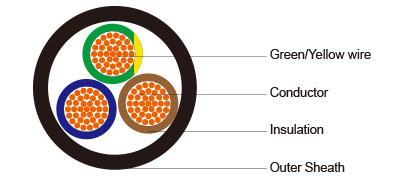

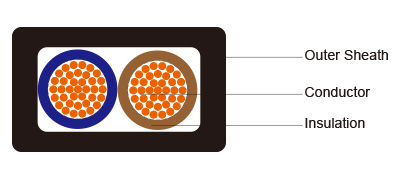

Cable Construction - Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- PVC outer jacket TM3
Technical Characteristics - Working voltage: 300/300 volts
- Test voltage: 3000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²

NOMINAL THICKNESS OF INSULATIONMM

NOMINAL THICKNESS OF SHEATHMM

NOMINAL OVERALL DIAMETERMM

NOMINAL COPPER WEIGHTKG/KM

NOMINAL WEIGHTKG/KM

H03V2V2-F

20(16/32)

2 x 0.50

0.5

0.6

5

9.6

38

20(16/32)

3 x 0.50

0.5

0.6

5.4

14.4

45

20(16/32)

4 x 0.50

0.5

0.6

5.8

19.2

55

18(24/32)

2 x 0.75

0.5

0.6

5.5

14.4

46

18(24/32)

3 x 0.75

0.5

0.6

6

21.6

59

18(24/32)

4 x 0.75

0.5

0.6

6.5

28.8

72

H03V2V2H2-F

20(16/32)

2 x 0.50

0.5

0.6

3.2 x 5.2

9.7

32

18(24/32)

2 x 0.75

0.5

0.3

3.4 x 5.6

14.4

35
