Harmonized Standard Industrial Cables H05RN-F/H05RNH2-F

Harmonized Standard Industrial Cables H05RN FH05RNH2 F 1

Harmonized Standard Industrial Cables H05RN FH05RNH2 F 2

Application and Description These cables are flexible, mainly recommended for use in electrical equipment under low stress in dry, damp and wet areas in indoor or outdoor environments. Commonly used for connection of electrical appliances when exposed to low mechanical strain in household, offices and for light utilities. Anywhere where tdere is minimal physical damage. Also suitable for fixed installation in furniture, decorative coverings, wall partitions and pre-fabricated building parts. Max operating voltage in single or three phase system is Uo/U 318/550 volts. In a direct current system max operating voltage is Uo/U 413/825 volts. They are ozone resistant, oil& fat resistant
Standard and Approval HD22.4 S3, VDE-0282 Part-4, CEI 20-19 p.4,CE low voltage directive 73/23/EEC & 93/68/EEC., IEC 60245-4, ROHS compliant

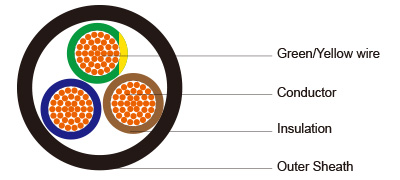

Cable Construction 1- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
2- Rubber core insulation EI4 to VDE-0282 Part-1
- Color code VDE-0293-308
- Green-yellow grounding, 3 conductors and above
3- Polychloroprene rubber (neoprene) jacket EM2
Technical Characteristics - Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 7.5 x Ø
- Fixed bending radius: 4.0 x Ø
- Temperature Range: -30º C to +60º C
- Short circuit temperature: +200 º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA# X MM²

NOMINAL THICKNESS OF INSULATIONMM

NOMINAL THICKNESS OF SHEATHMM

NOMINAL OVERALL DIAMETER MM MIN-MAX

NOMINAL COPPER WEIGHTKG/KM

NOMINAL WEIGHTKG/KM

H05RN-F

18(24/32)

2 x 0.75

0.6

0.8

5.7 - 7.4

14.4

80

18(24/32)

3 x 0.75

0.6

0.9

6.2 - 8.1

21.6

95

18(24/32)

4 x 0.75

0.6

0.9

6.8 - 8.8

30

105

17(32/32)

2 x 1

0.6

0.9

6.1 - 8.0

19

95

17(32/32)

3 x 1

0.6

0.9

6.5 - 8.5

29

115

17(32/32)

4 x 1

0.6

0.9

7.1 – 9.2

38

142

16(30/30)

3 x 1.5

0.8

1.0

8.6 - 11.0

29

105

16(30/30)

4 x 1.5

0.8

1.1

9.5 - 12.2

39

129

16(30/30)

5 x 1.5

0.8

1.1

10.5 - 13.5

48

153

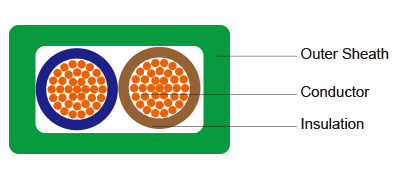

H05RNH2-F

16(30/30)

2 x 1.5

0.6

0.8

5.25±0.15x13.50±0.30

14.4

80

14(50/30)

2 x 2.5

0.6

0.9

5.25±0.15x13.50±0.30

21.6

95
