Harmonized Standard Industrial Cables H05V-K UL/H07V-K UL-UL/CSA/HAR/MTW&UL1015 PVC

Harmonized Standard Industrial Cables H05V K ULH07V K UL ULCSAHARMTWUL1015 PVC

Application and Description H05VK UL / H07V-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC European flexible single-conductor wires. Can be found in appliance wiring and machine tool wiring as well as in control systems. They may also be used in pipes and flexible conduits. Recommended for tde internal wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for international use in Nortd American & European countries and for MRO replacement of international made equipment wire.
Standard and Approval HD 21.7 S2, VDE-0281 Part-3,UL-Standard and Approval 1063 MTW, UL-AWM Style 1015, CSA TEW, CSA-AWM I A/B, FT-1, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

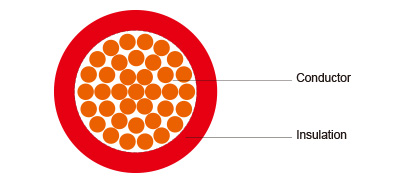

Cable Construction 1- Fine tinned copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5, HD383 Class-5
2- Special PVC TI3 core insulation
- Cores to VDE-0293 colors
- H05V-K UL (22, 20 & 18 AWG)
- H07V-K UL (16 AWG and Larger)
- X05V-K UL & X07V-K UL for non-HAR colors
Technical Characteristics - Working voltage: 300/500v (H05V-K UL)
- Working voltage: 450/750v (H07V-K UL)
- Working voltage UL/CSA: 600v AC, 750v DC.
- Test voltage: 2500 volts
- Flexing/Static bending radius: 10-15 x Ø
- Temperature HAR/IEC: -40º to +70º C
- Temperature UL-AWM: -40º to +105º C
- Temperature UL-MTW: -40º C to +90º C
- Temperature CSA-TEW: -40º C to +105º C
- Flame retardant: IEC 60332.1, FT-1
- Insulation resistance: 20 MΩ x km

Cable Parameter

AWG

NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM²

NOMINAL THICKNESS OF INSULATION

MM

NOMINAL OVERALL DIAMETER

MM

NOMINAL COPPER WEIGHT

KG/KM

NOMINAL WEIGHTKG/KM

20(16/32)

1 x 0.5

0.6

2.5

4.9

11

18(24/32)

1 x 0.75

0.6

2.7

7.2

14

17(32/32)

1 x 1

0.6

2.9

9.6

17

16(30/30)

1 x 1.5

0,7

3.1

14.4

20

14(50/30)

1 x 2.5

0,8

3.7

24.0

32

12(56/28)

1 x 4

0,8

4.4

38.0

45

10(84/28)

1 x 6

0,8

4.9

58.0

63

8(80/26)

1 x 10

1,0

6.8

96.0

120

6(128/26)

1 x 16

1,0

8.9

154.0

186

4 (200/26)

1 x 25

1,2

10.1

240

261

2 (280/26)

1 x 35

1,2

11.4

336

362

1 (400/26)

1 x 50

1,4

14.1

480

539

2/0 (356/24)

1 x 70

1,4

15.8

672

740

3/0 (485/24)

1 x 95

1,6

18.1

912

936

4/0 (614/24)

1 x 120

1,6

19.5

1152

1184
