Automotive Connector Terminals HY8812 - 3 ( Equivalent TE171631 - 2 )

002001



Product Type Features

Sealable: Yes

Material Type: Brass

Surface Treatment: Gold Plating

Automotive Terminal Wire Type: Copper

Operating Temperature Range: -30–105 ℃ [-22–221 °F]



Contact Features

Typical Current Rating: 6A

Crimp Type: F-Crimp

Terminal & Splice Type: Tab

Automotive Terminal Interface Plating: Gold (Au)



Termination Features

Automotive Terminal Termination Method: Crimp

003

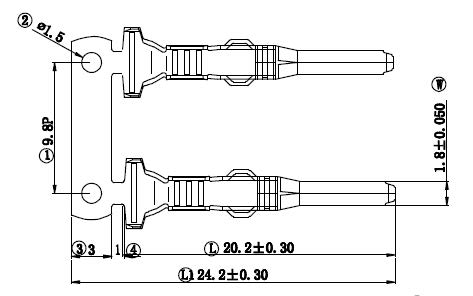

Dimensions

Material Thickness: Main Body: 0.3mm

Wire Size: 0.2-0.5mm2

Wire Insulation Diameter: 1.4 – 2.4 mm[.055 – .094 in]

004

Packaging

Packing Method: Reel

Packaging Quantity per Reel: 6000pcs

1 carton: 3 reels
