Multi Core PVC IEC60502-1 Lov Voltage Power Cable
CU/PVC/PVC (Multi - Cores)
PVC Insulated, PVC Sheathed Cable
Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.

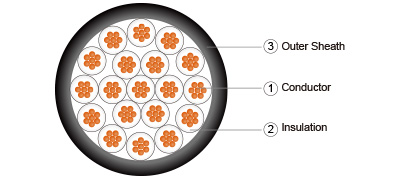

Construction
Conductor: Plain annealed copper, class 1 solid or class 2 stranded acc. to IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.
Insulation: Polyviny chloride (PVC) compound as per IEC 60502-1.
Insulation Color Code:
| Number of Cores | Color Code to IEC 60502-1 | Color Code to BS 5467 |
| 6 and above | White with Black Numbering or Others |
White with Black Numbering or Others |
Assembly: Cores cabled together with PP filler and covered with non-woven tape.
Outer Sheath: Polyvinyl choride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Outer Sheath Color: Black or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage (Um) (kV) |
Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
| 70 | 160 |
Minimum Insulation Resistance at 20°C: 36.7 MΩ·km
Operating Temperature: -15°C to 70°C
Test Voltage: 3.5 kV for 5 minutes
Installation Refference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 50
Reference Standards
Design: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC 60332-1, BS EN60332-1
Dimension
| No.of Cores | Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Sheath Thickness (mm) |
Overall Diameter (mm) | Approximate Weight (kg/km) |
| 5 | 1.5 | 7/0.53 | 0.8 | 1.8 | 12.2 | 223 |
| 7 | 7/0.53 | 0.8 | 1.8 | 13.2 | 283 | |
| 10 | 7/0.53 | 0.8 | 1.8 | 16.4 | 389 | |
| 12 | 7/0.53 | 0.8 | 1.8 | 16.9 | 445 | |
| 19 | 7/0.53 | 0.8 | 1.8 | 19.6 | 649 | |
| 20 | 7/0.53 | 0.8 | 1.8 | 20 | 679 | |
| 24 | 7/0.53 | 0.8 | 1.8 | 22.7 | 806 | |
| 37 | 7/0.53 | 0.8 | 1.8 | 25.9 | 1169 | |
| 5 | 2.5 | 7/0.67 | 0.8 | 1.8 | 13.3 | 289 |
| 7 | 7/0.67 | 0.8 | 1.8 | 14.4 | 373 | |
| 10 | 7/0.67 | 0.8 | 1.8 | 18 | 516 | |
| 12 | 7/0.67 | 0.8 | 1.8 | 18.6 | 595 | |
| 19 | 7/0.67 | 0.8 | 1.8 | 21.7 | 880 | |
| 20 | 7/0.67 | 0.8 | 1.8 | 22.2 | 922 | |
| 24 | 7/0.67 | 0.8 | 1.8 | 25.3 | 1097 | |
| 37 | 7/0.67 | 0.8 | 1.8 | 28.9 | 1609 | |
| 5 | 4 | 7/0.85 | 1 | 1.8 | 15.9 | 423 |
| 7 | 7/0.85 | 1 | 1.8 | 17.3 | 553 | |
| 10 | 7/0.85 | 1 | 1.8 | 21.8 | 771 | |
| 12 | 7/0.85 | 1 | 1.8 | 22.5 | 895 | |
| 19 | 7/0.85 | 1 | 1.8 | 26.4 | 1343 | |
| 20 | 7/0.85 | 1 | 1.8 | 27.1 | 1408 | |
| 24 | 7/0.85 | 1 | 1.8 | 30.9 | 1679 | |
| 37 | 7/0.85 | 1 | 1.8 | 35.5 | 2486 |
