2 3 4 5 core Galvanised Steel Wire Armoured SWA PVC IEC60502 - 1 Power Cable
CU/PVC/PVC/SWA/PVC (2 Core to 5 Cores)
PVC Insulated, PVC Bedded, Galvanised Steel Wire Armoured, PVC Sheathed Cable
Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.
Armoured cable suitable for direct burial.

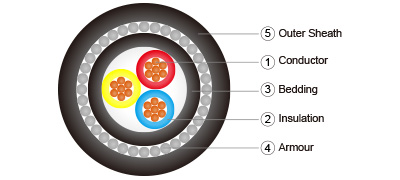

Construction
Conductor: Plain annealed copper, class1 solid or class 2 stranded as per IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.
Insulation: Polyviny chloride (PVC) compound as per IEC 60502-1.
Insulation Colour:
| Number of Cores | Color Code to IEC 60502-1 | Color Code to BS 5467 |
| 2 | Red & Black | Brown & Blue |
| 3 | Red, Yellow and Blue | Brown, Black and Grey |
| 4 | Red, Yellow, Blue and Black | Blue, Brown, Black and Grey |
| 5 | Red, Yellow, Blue, Black and Green / Yellow |
Green / Yellow, Blue, Brown, Black and Grey |
Assembly: Cores cabled together with PP filler and covered with non-woven tape
Bedding: Polyvinyl chloride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Bedding Color: Black or other color as per customer request.
Armour: Round galvanized steel wire armoured (SWA).
Outer Sheath: Polyvinyl chloride (PVC) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Outer Sheath Colour: Black or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage (Um) (kV) |
Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| PVC Insulation compound | Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
|
| Conductor cross-section ≤300 mm2 | 70 | 160 |
| Conductor cross-section >300 mm2 | 70 | 140 |
Minimum Insulation Resistance at 20°C: 36.7 MΩ·km
Operating Temperature: -15°C to 70°C
Test Voltage: 3.5 kV for 5 minutes
Installation Refference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 70
Reference Standards
Design: IEC60502-1
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC 60332-1, BS EN60332-1
Dimension
2 Cores
| Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Thickness of Inner Sheath (mm) |
Diameter of Armour Wire (mm) |
Thickness of Outer Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 2x1.5 | 7/0.53 | 0.8 | 1 | 0.8 | 1.8 | 13.6 | 346 |
| 2x2.5 | 7/0.67 | 0.8 | 1 | 0.8 | 1.8 | 14.4 | 394 |
| 2x4 | 7/0.85 | 1 | 1 | 1.25 | 1.8 | 17.2 | 625 |
| 2x6 | 7/1.04 | 1 | 1 | 1.25 | 1.8 | 18.3 | 716 |
| 2x10 | 7/1.35 | 1 | 1 | 1.25 | 1.8 | 20.2 | 883 |
| 2x16 | 7/1.70 | 1 | 1 | 1.6 | 1.8 | 23 | 1239 |
| 2x25 | 7/2.14 | 1.2 | 1 | 1.6 | 1.8 | 26.4 | 1621 |
| 2x35 | 7/2.52 | 1.2 | 1 | 1.6 | 1.8 | 28.7 | 1941 |
| 2x50 | 19/1.78 | 1.4 | 1 | 2 | 2 | 33.8 | 2721 |
| 2x70 | 19/2.14 | 1.4 | 1.2 | 2 | 2.1 | 37.6 | 3401 |
| 2x95 | 19/2.52 | 1.6 | 1.2 | 2 | 2.3 | 43 | 4364 |
| 2x120 | 37/2.03 | 1.6 | 1.2 | 2.5 | 2.4 | 47.4 | 5558 |
| 2x150 | 37/2.25 | 1.8 | 1.4 | 2.5 | 2.6 | 51.7 | 6507 |
| 2x185 | 37/2.52 | 2 | 1.4 | 2.5 | 2.7 | 56.5 | 7706 |
| 2x240 | 61/2.25 | 2.2 | 1.6 | 2.5 | 3 | 63.5 | 9601 |
| 2x300 | 61/2.52 | 2.4 | 1.6 | 2.5 | 3.2 | 69.6 | 11464 |
| 2x400 | 61/2.85 | 2.6 | 1.8 | 3.15 | 3.5 | 78.6 | 15016 |
| 2x500 | 61/3.20 | 2.8 | 1.8 | 3.15 | 3.7 | 86.1 | 17977 |
| 2x630 | 127/2.52 | 2.8 | 1.8 | 3.15 | 4 | 94.6 | 21881 |
| 2x800 | 127/2.85 | 2.8 | 2 | 3.15 | 4.3 | 104.2 | 26700 |
| 2x1000 | 127/3.20 | 3 | 2 | 3.15 | 4.6 | 114.7 | 32369 |
3 Cores
| Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Thickness of Inner Sheath (mm) |
Diameter of Armour Wire (mm) |
Thickness of Outer Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 3x1.5 | 7/0.53 | 0.8 | 1 | 0.8 | 1.8 | 14.1 | 387 |
| 3x2.5 | 7/0.67 | 0.8 | 1 | 0.8 | 1.8 | 15 | 448 |
| 3x4 | 7/0.85 | 1 | 1 | 1.25 | 1.8 | 17.9 | 711 |
| 3x6 | 7/1.04 | 1 | 1 | 1.25 | 1.8 | 19.1 | 829 |
| 3x10 | 7/1.35 | 1 | 1 | 1.25 | 1.8 | 21.1 | 1048 |
| 3x16 | 7/1.70 | 1 | 1 | 1.6 | 1.8 | 24.1 | 1484 |
| 3x25 | 7/2.14 | 1.2 | 1 | 1.6 | 1.8 | 27.8 | 1989 |
| 3x35 | 7/2.52 | 1.2 | 1 | 1.6 | 1.9 | 30.5 | 2439 |
| 3x50 | 19/1.78 | 1.4 | 1.2 | 2 | 2.1 | 35.8 | 3399 |
| 3x70 | 19/2.14 | 1.4 | 1.2 | 2 | 2.2 | 39.9 | 4326 |
| 3x95 | 19/2.52 | 1.6 | 1.2 | 2.5 | 2.4 | 46.2 | 5989 |
| 3x120 | 37/2.03 | 1.6 | 1.4 | 2.5 | 2.5 | 50.3 | 7125 |
| 3x150 | 37/2.25 | 1.8 | 1.4 | 2.5 | 2.7 | 54.9 | 8412 |
| 3x185 | 37/2.52 | 2 | 1.6 | 2.5 | 2.9 | 60.6 | 10169 |
| 3x240 | 61/2.25 | 2.2 | 1.6 | 2.5 | 3.1 | 67.5 | 12649 |
| 3x300 | 61/2.52 | 2.4 | 1.6 | 3.15 | 3.4 | 75.5 | 16200 |
| 3x400 | 61/2.85 | 2.6 | 1.8 | 3.15 | 3.6 | 83.6 | 19844 |
| 3x500 | 61/3.20 | 2.8 | 1.8 | 3.15 | 3.9 | 91.8 | 24024 |
| 3x630 | 127/2.52 | 2.8 | 2 | 3.15 | 4.2 | 101.3 | 29639 |
| 3x800 | 127/2.85 | 2.8 | 2 | 3.15 | 4.5 | 111.2 | 36292 |
| 3x1000 | 127/3.20 | 3 | 2 | 3.15 | 4.9 | 122.6 | 44389 |
4 Cores
| Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Thickness of Inner Sheath (mm) |
Diameter of Armour Wire (mm) |
Thickness of Outer Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 4x1.5 | 7/0.53 | 0.8 | 1 | 0.8 | 1.8 | 14.9 | 438 |
| 4x2.5 | 7/0.67 | 0.8 | 1 | 1.25 | 1.8 | 16.8 | 639 |
| 4x4 | 7/0.85 | 1 | 1 | 1.25 | 1.8 | 19.1 | 817 |
| 4x6 | 7/1.04 | 1 | 1 | 1.25 | 1.8 | 20.5 | 964 |
| 4x10 | 7/1.35 | 1 | 1 | 1.6 | 1.8 | 23.4 | 1384 |
| 4x16 | 7/1.70 | 1 | 1 | 1.6 | 1.8 | 25.9 | 1764 |
| 4x25 | 7/2.14 | 1.2 | 1 | 1.6 | 1.9 | 30.3 | 2416 |
| 4x35 | 7/2.52 | 1.2 | 1 | 2 | 2 | 34 | 3239 |
| 4x50 | 19/1.78 | 1.4 | 1.2 | 2 | 2.2 | 39 | 4151 |
| 4x70 | 19/2.14 | 1.4 | 1.2 | 2 | 2.3 | 43.6 | 5337 |
| 4x95 | 19/2.52 | 1.6 | 1.4 | 2.5 | 2.6 | 51.1 | 7476 |
| 4x120 | 37/2.03 | 1.6 | 1.4 | 2.5 | 2.7 | 55.2 | 8855 |
| 4x150 | 37/2.25 | 1.8 | 1.6 | 2.5 | 2.9 | 60.7 | 10576 |
| 4x185 | 37/2.52 | 2 | 1.6 | 2.5 | 3.1 | 66.6 | 12739 |
| 4x240 | 61/2.25 | 2.2 | 1.6 | 3.15 | 3.4 | 75.8 | 16902 |
| 4x300 | 61/2.52 | 2.4 | 1.8 | 3.15 | 3.6 | 83.4 | 20445 |
| 4x400 | 61/2.85 | 2.6 | 1.8 | 3.15 | 3.9 | 92.2 | 25071 |
| 4x500 | 61/3.20 | 2.8 | 2 | 3.15 | 4.2 | 101.7 | 30598 |
| 4x630 | 127/2.52 | 2.8 | 2 | 3.15 | 4.6 | 112.1 | 37801 |
| 4x800 | 127/2.85 | 2.8 | 2 | 3.15 | 4.9 | 123.1 | 46466 |
| 4x1000 | 127/3.20 | 3 | 2 | 3.15 | 5.3 | 135.8 | 57010 |
5 Cores
| Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Thickness of Inner Sheath (mm) |
Diameter of Armour Wire (mm) |
Thickness of Outer Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 5x1.5 | 7/0.53 | 0.8 | 1 | 1.25 | 1.8 | 16.7 | 616 |
| 5x2.5 | 7/0.67 | 0.8 | 1 | 1.25 | 1.8 | 17.8 | 716 |
| 5x4 | 7/0.85 | 1 | 1 | 1.25 | 1.8 | 20.4 | 928 |
| 5x6 | 7/1.04 | 1 | 1 | 1.6 | 1.8 | 22.6 | 1244 |
| 5x10 | 7/1.35 | 1 | 1 | 1.6 | 1.8 | 25.1 | 1594 |
| 5x16 | 7/1.70 | 1 | 1 | 1.6 | 1.8 | 28 | 2053 |
| 5x25 | 7/2.14 | 1.2 | 1 | 2 | 2 | 33.8 | 3105 |
| 5x35 | 7/2.52 | 1.2 | 1.2 | 2 | 2.1 | 37.5 | 3879 |
| 5x50 | 19/1.78 | 1.4 | 1.2 | 2 | 2.3 | 42.6 | 4924 |
| 5x70 | 19/2.14 | 1.4 | 1.4 | 2.5 | 2.5 | 49.3 | 6917 |
| 5x95 | 19/2.52 | 1.6 | 1.4 | 2.5 | 2.7 | 55.9 | 8911 |
| 5x120 | 37/2.03 | 1.6 | 1.6 | 2.5 | 2.9 | 61 | 10704 |
| 5x150 | 37/2.25 | 1.8 | 1.6 | 2.5 | 3.1 | 66.6 | 12717 |
| 5x185 | 37/2.52 | 2 | 1.6 | 3.15 | 3.3 | 74.5 | 16277 |
| 5x240 | 61/2.25 | 2.2 | 1.8 | 3.15 | 3.6 | 83.7 | 20453 |
| 5x300 | 61/2.52 | 2.4 | 1.8 | 3.15 | 3.9 | 91.9 | 24721 |
| 5x400 | 61/2.85 | 2.6 | 2 | 3.15 | 4.2 | 102 | 30521 |
| 5x500 | 61/3.20 | 2.8 | 2 | 3.15 | 4.6 | 112.4 | 37232 |
| 5x630 | 127/2.52 | 2.8 | 2 | 3.15 | 4.9 | 123.7 | 46042 |
| 5x800 | 127/2.85 | 2.8 | 2 | 3.15 | 5.3 | 136.1 | 56799 |
| 5x1000 | 127/3.20 | 3 | 2 | 3.15 | 5.8 | 150.4 | 69887 |
