Single Core Aluminium Wire Armoured CU/XLPE/LSZH/AWA/LSZH Power Cable to IEC 60502
CU/XLPE/LSZH/AWA/LSZH (Single Core)
XLPE Insulated, LSZH Bedded, Aluminium Wire Armoured, LSZH Sheathed Cable
Application
These power cable for fixed installations such as distribution networks or industrial installations.
Such as Plant engineering; Industrial machinery; Heating and air-conditioning systems; Power stations; Stage applications etc.
Armoured cable suitable for direct burial.

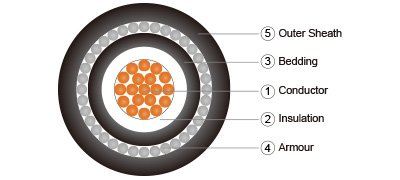

Construction
Conductor: Plain annealed copper, class1 solid or class 2 stranded circular or compacted.
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.
Insulation Colour:
| Number of Cores | Color Code to IEC 60502-1 | Color Code to BS 5467 |
| 1 | Natural |
Bedding: Low smoke zero halogen (LSZH) compound ST8 (90°C) of IEC 60502-1.
Bedding Colour: Black or other color as per customer request.
Armour: Aluminium wire armoured (AWA).
Outer Sheath: Low smoke zero halogen (LSZH) compound ST8 (90°C) of IEC 60502-1.
Outer Sheath Colour: Black or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage (Um) (kV) |
Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
| 90 | 250 |
Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes
Reference Standards
Design Specification: BS6724
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-3-22, BS EN60332-3-22
Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN50267-2-1, BS EN50267-2-2
Installation Reference
Min.Bending Radius (mm): 8 x cable overall diameter
Max.Pulling Tension (N/mm2): 50
Dimension
| Nominal Conductor Area (mm2) |
No. and Diameter of Wires (no./mm) |
Diameter Under Armour (mm) |
Thickness of Bedding (mm) |
Diameter of Armour Wiire (mm) |
Thickness of Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 1x50 | 19/1.78 | 12.9 | 1 | 1.25 | 1.8 | 19 | 1086 |
| 1x70 | 19/2.14 | 14.9 | 1 | 1.25 | 1.8 | 21 | 1387 |
| 1x95 | 19/2.52 | 16.8 | 1 | 1.6 | 1.8 | 23.6 | 1881 |
| 1x120 | 37/2.03 | 18.6 | 1 | 1.6 | 1.8 | 25.4 | 2227 |
| 1x150 | 37/2.25 | 20.6 | 1 | 1.6 | 1.8 | 27.4 | 2611 |
| 1x185 | 37/2.52 | 22.8 | 1 | 1.6 | 1.9 | 29.8 | 3132 |
| 1x240 | 61/2.25 | 25.7 | 1 | 2 | 2 | 33.7 | 4131 |
| 1x300 | 61/2.52 | 28.7 | 1.2 | 2 | 2.1 | 36.9 | 4988 |
| 1x400 | 61/2.85 | 32.1 | 1.2 | 2 | 2.2 | 40.5 | 6091 |
| 1x500 | 61/3.20 | 35.6 | 1.2 | 2.5 | 2.4 | 45.4 | 7823 |
| 1x630 | 127/2.52 | 40.4 | 1.4 | 2.5 | 2.5 | 50.4 | 9702 |
| 1x800 | 127/2.85 | 45.1 | 1.4 | 2.5 | 2.7 | 55.5 | 11924 |
| 1x1000 | 127/3.20 | 50.4 | 1.6 | 2.5 | 2.9 | 61.2 | 14606 |
