0.6/1 kV 2 Cores - 5 Cores Mica Tape Double Steel Tape Armoured Power Cable to IEC 60502

0.6/1 kV 2 Cores - 5 Cores Mica Tape Double Steel Tape Armoured Power Cable to IEC 60502



CU/MGT/XLPE/LSZH/DSTA/LSZH (2 Cores - 5 Cores)
Mica Tape, XLPE Insulated, LSZH Bedded, Double Steel Tape Armoured, LSZH Sheathed Cable



Application

These cables are suitable for indoor and outdoor applications, where a high safety against flame is required .
Public address and emergency voice communication system and traffic control centres.
Control and instrumentation service in industrial, commercial and residential buildings.
Such as: Schools&Universities, Hospital, Markets & Malls, Hotels, Theatres, Cinemas, Airports, Underground stations, Tunnels, Recreational
places& Amusement parks, Indoor work places.

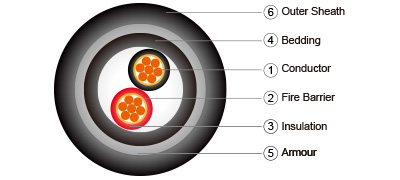

2core MGT insulation sheath dsta sheath

Construction

Conductor: Plain annealed copper, class1 solid or class 2 stranded acc. to IEC 60228.
                 Flexible class 5 or tinned conductor could be offer upon request.
Fire Barrier: Mica tape (MGT).
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.
Insulation Color Code:

Number of Cores Color Code to IEC 60502-1 Color Code to BS 5467
2 Red & Black Brown & Blue
3 Red, Yellow and Blue Brown, Black and Grey
4 Red, Yellow, Blue and Black Blue, Brown, Black and Grey
5 Red, Yellow, Blue, Black and
Green / Yellow		 Green / Yellow, Blue, Brown,
Black and Grey

Assembly: Cores cabled together with PP filler and covered with non-woven tape.
Bedding: Low smoke zero halogen (LSZH) compound type ST8 (90°C) of IEC 60502-1.
Bedding Colour: Black.
Armour: Double steel tape armoured (DSTA).
Outer Sheath: Low smoke zero halogen (LSZH) compound type ST1 (80°C), ST2 (90°C) of IEC 60502-1.
Outer Sheath Color: Orange or other color as per customer request.



Electrical Characteristics

Recommended rated voltages U0

Highest system voltage
(Um) (kV)		 Rated voltage (U0) (kV)
Categories A and B Category C
1,2 0,6 0,6

Routine test voltages

Rated voltage U0 (kV) 0,6
Test voltage (kV) 3,5

Maximum conductor temperatures for different types of insulating compound

Maximum conductor temperature (°C)
Normal operation Short-circuit (5 s maximum duration)
90 250

Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes



Reference Standards

Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Fire Resistance: BS6387(C,W,Z), SS299(C,W,Z), IEC60331
Flame Retardancy: IEC60332-3-22, BS EN60332-3-22
Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN50267-2-1, BS EN50267-2-2



Installation Reference

Min.Bending Radius (mm): 10 x cable overall diameter
Max.Pulling Tension (N/mm2): 70



Dimension

2 Cores

Nominal Conductor Area
(mm2)		 No.and Diameter of Wires
(no./mm)		 Thickness of Insulation
(mm)		 Thickness of Bedding
(mm)		 Diameter Under Armour
(mm)		 Thickness of Armour Tape
(mm)		 Thickness of Sheath
(mm)		 Overall Diameter
(mm)		 Approximate
Weight
(kg/km)
2x1.5 7/0.53 0.7 1 9.8 0.2 1.8 14.2 308
2x2.5 7/0.67 0.7 1 10.6 0.2 1.8 15 352
2x4 7/0.85 0.7 1 11.7 0.2 1.8 16.1 415
2x6 7/1.04 0.7 1 12.8 0.2 1.8 17.2 490
2x10 7/1.35 0.7 1 14.7 0.2 1.8 19.1 630
2x16 7/1.70 0.7 1 16.8 0.2 1.8 21.2 815
2x25 7/2.14 0.9 1 20.2 0.2 1.8 24.6 1121
2x35 7/2.52 0.9 1 22.5 0.2 1.8 26.9 1395
2x50 19/1.78 1 1 25.6 0.2 1.9 30.2 1770
2x70 19/2.14 1.1 1.2 30 0.2 2 34.8 2403
2x95 19/2.52 1.1 1.2 33.8 0.5 2.2 40.2 3655
2x120 37/2.03 1.2 1.4 37.8 0.5 2.3 44.4 4446
2x150 37/2.25 1.4 1.4 41.7 0.5 2.5 48.7 5293
2x185 37/2.52 1.6 1.4 46.3 0.5 2.6 53.5 6379
2x240 61/2.25 1.7 1.6 52.3 0.5 2.9 60.1 8084
2x300 61/2.52 1.8 1.6 57.6 0.5 3 65.6 9743
2x400 61/2.85 2 1.8 64.7 0.5 3.3 73.3 12162
2x500 61/3.20 2.2 1.8 71.8 0.8 3.6 82.2 16028
2x630 127/2.52 2.4 1.8 80.5 0.8 3.9 91.5 19929
2x800 127/2.85 2.6 2 90.3 0.8 4.2 101.9 24762
2x1000 127/3.20 2.8 2 100.2 0.8 4.6 112.6 30367



3 Cores

Nominal Conductor Area
(mm2)		 No.and Diameter of Wires
(no./mm)		 Thickness of Insulation
(mm)		 Thickness of Bedding
(mm)		 Diameter Under Armour
(mm)		 Thickness of Armour Tape
(mm)		 Thickness of Sheath
(mm)		 Overall Diameter
(mm)		 Approximate
Weight
(kg/km)
3x1.5 7/0.53 0.7 1 10.4 0.2 1.8 14.8 351
3x2.5 7/0.67 0.7 1 11.3 0.2 1.8 15.7 408
3x4 7/0.85 0.7 1 12.4 0.2 1.8 16.8 491
3x6 7/1.04 0.7 1 13.7 0.2 1.8 18.1 592
3x10 7/1.35 0.7 1 15.7 0.2 1.8 20.1 783
3x16 7/1.70 0.7 1 17.9 0.2 1.8 22.3 1039
3x25 7/2.14 0.9 1 21.6 0.2 1.8 26 1462
3x35 7/2.52 0.9 1 24.1 0.2 1.8 28.5 1851
3x50 19/1.78 1 1.2 27.8 0.2 2 32.6 2427
3x70 19/2.14 1.1 1.2 32.1 0.5 2.1 38.3 3780
3x95 19/2.52 1.1 1.2 36.2 0.5 2.3 42.8 4871
3x120 37/2.03 1.2 1.4 40.5 0.5 2.4 47.3 5962
3x150 37/2.25 1.4 1.4 44.7 0.5 2.6 51.9 7143
3x185 37/2.52 1.6 1.6 50 0.5 2.8 57.6 8771
3x240 61/2.25 1.7 1.6 56.1 0.5 3 64.1 11062
3x300 61/2.52 1.8 1.6 61.7 0.5 3.2 70.1 13466
3x400 61/2.85 2 1.8 69.4 0.5 3.4 78.2 16844
3x500 61/3.20 2.2 1.8 77.1 0.8 3.8 87.9 22007
3x630 127/2.52 2.4 2 86.8 0.8 4.1 98.2 27674
3x800 127/2.85 2.6 2 96.9 0.8 4.5 109.1 34488
3x1000 127/3.20 2.8 2 107.6 0.8 4.8 120.4 42459



4 Cores

Nominal Conductor Area
(mm2)		 No.and Diameter of Wires
(no./mm)		 Thickness of Insulation
(mm)		 Thickness of Bedding
(mm)		 Diameter Under Armour
(mm)		 Thickness of Armour Tape
(mm)		 Thickness of Sheath
(mm)		 Overall Diameter
(mm)		 Approximate
Weight
(kg/km)
4x1.5 7/0.53 0.7 1 11.4 0.2 1.8 15.8 404
4x2.5 7/0.67 0.7 1 12.4 0.2 1.8 16.8 475
4x4 7/0.85 0.7 1 13.7 0.2 1.8 18.1 580
4x6 7/1.04 0.7 1 15.1 0.2 1.8 19.5 708
4x10 7/1.35 0.7 1 17.3 0.2 1.8 21.7 952
4x16 7/1.70 0.7 1 19.9 0.2 1.8 24.3 1282
4x25 7/2.14 0.9 1 24 0.2 1.8 28.4 1828
4x35 7/2.52 0.9 1 26.8 0.2 1.9 31.4 2348
4x50 19/1.78 1 1.2 30.9 0.5 2.1 37.1 3570
4x70 19/2.14 1.1 1.2 35.7 0.5 2.3 42.3 4770
4x95 19/2.52 1.1 1.4 40.7 0.5 2.4 47.5 6217
4x120 37/2.03 1.2 1.4 45.1 0.5 2.6 52.3 7589
4x150 37/2.25 1.4 1.6 50.2 0.5 2.8 57.8 9184
4x185 37/2.52 1.6 1.6 55.7 0.5 3 63.7 11218
4x240 61/2.25 1.7 1.6 62.5 0.5 3.2 70.9 14204
4x300 61/2.52 1.8 1.8 69.2 0.5 3.4 78 17430
4x400 61/2.85 2 1.8 77.3 0.8 3.8 88.1 23027
4x500 61/3.20 2.2 2 86.3 0.8 4.1 97.7 28406
4x630 127/2.52 2.4 2 96.8 0.8 4.5 109 35725
4x800 127/2.85 2.6 2 108.2 0.8 4.8 121 44575
4x1000 127/3.20 2.8 2 120.1 0.8 5.3 133.9 55149



5 Cores

Nominal Conductor Area
(mm2)		 No.and Diameter of Wires
(no./mm)		 Thickness of Insulation
(mm)		 Thickness of Bedding
(mm)		 Diameter Under Armour
(mm)		 Thickness of Armour Tape
(mm)		 Thickness of Sheath
(mm)		 Overall Diameter
(mm)		 Approximate
Weight
(kg/km)
5x1.5 7/0.53 0.7 1 12.5 0.2 1.8 16.9 458.9
5x2.5 7/0.67 0.7 1 13.6 0.2 1.8 18 544.8
5x4 7/0.85 0.7 1 15.1 0.2 1.8 19.5 672.1
5x6 7/1.04 0.7 1 16.6 0.2 1.8 21 827.1
5x10 7/1.35 0.7 1 19.1 0.2 1.8 23.5 1125.4
5x16 7/1.70 0.7 1 22 0.2 1.8 26.4 1530.1
5x25 7/2.14 0.9 1 26.6 0.2 1.9 31.2 2213.8
5x35 7/2.52 0.9 1.2 30.1 0.5 2.1 36.3 3383.5
5x50 19/1.78 1 1.2 34.3 0.5 2.2 40.7 4291.1
5x70 19/2.14 1.1 1.4 40.1 0.5 2.4 46.9 5816
5x95 19/2.52 1.1 1.4 45.2 0.5 2.6 52.4 7558.9
5x120 37/2.03 1.2 1.6 50.5 0.5 2.8 58.1 9313.6
5x150 37/2.25 1.4 1.6 55.7 0.5 3 63.7 11199.1
5x185 37/2.52 1.6 1.6 61.9 0.5 3.2 70.3 13704.8
5x240 61/2.25 1.7 1.8 69.9 0.5 3.5 78.9 17519.2
5x300 61/2.52 1.8 1.8 77 0.8 3.8 87.8 22645.9
5x400 61/2.85 2 2 86.5 0.8 4.1 97.9 28283.1
5x500 61/3.20 2.2 2 96.1 0.8 4.4 108.1 34796.2
5x630 127/2.52 2.4 2 107.8 0.8 4.8 120.6 43834.7
5x800 127/2.85 2.6 2 120.5 0.8 5.3 134.3 54915.2
5x1000 127/3.20 2.8 2 133.9 0.8 5.7 148.5 67930.1
