Multi Cores Mica Tape Galvanised Steel Wire Armoured Fire Resistant Low Voltage Power Cable
CU/MGT/XLPE/LSZH/SWA/LSZH (Multi Cores)
Mica Tape, XLPE Insulated, LSZH Bedded, Galvanised Steel Wire Armoured, LSZH Sheathed Cable
Application
These cables are suitable for indoor and outdoor applications, where a high safety against flame is required .
Public address and emergency voice communication system and traffic control centres.
Control and instrumentation service in industrial, commercial and residential buildings.
Such as: Schools&Universities, Hospital, Markets & Malls, Hotels, Theatres, Cinemas, Airports, Underground stations, Tunnels, Recreational
places& Amusement parks, Indoor work places.

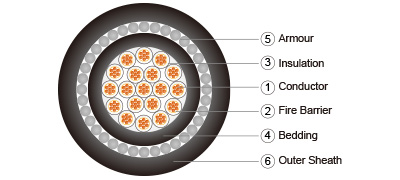

Construction
Conductor: Plain annealed copper, class1 solid or class 2 stranded acc. to IEC 60228.
Flexible class 5 or tinned conductor could be offer upon request.
Fire Barrier: Mica tape (MGT).
Insulation: Cross-linked polyethlene (XLPE) compound as per IEC 60502-1.
Insulation Color Code:
| Number of Cores | Color Code to IEC 60502-1 | Color Code to BS 5467 |
| 6 and above | White with Black Numbering or Others |
White with Black Numbering or Others |
Assembly: Cores cabled together with PP filler and covered with non-woven tape.
Bedding: Low smoke zero halogen (LSZH) compound type ST8 (90°C) of IEC 60502-1.
Bedding Colour: Black.
Armour: Galvanized steel wire armoured (SWA).
Outer Sheath: Low smoke zero halogen (LSZH) compound type ST8 (90°C) of IEC 60502-1.
Outer Sheath Color: Orange or other color as per customer request.
Electrical Characteristics
Recommended rated voltages U0
| Highest system voltage (Um) (kV) |
Rated voltage (U0) (kV) | |
| Categories A and B | Category C | |
| 1,2 | 0,6 | 0,6 |
Routine test voltages
| Rated voltage U0 (kV) | 0,6 |
| Test voltage (kV) | 3,5 |
Maximum conductor temperatures for different types of insulating compound
| Maximum conductor temperature (°C) | |
| Normal operation | Short-circuit (5 s maximum duration) |
| 90 | 250 |
Operating Temperature: -15°C to 90°C
Test Voltage: 3.5 kV for 5 minutes
Installation Reference
Min.Bending Radius (mm): 10 x cable overall diameter
Max.Pulling Tension (N/mm2): 70
Reference Standards
Design Specification: IEC60502-1
Conductor: IEC60228, BS EN60228
Fire Resistance: BS6387(C,W,Z), SS299(C,W,Z), IEC60331
Flame Retardancy: IEC60332-3-22, BS EN60332-3-22
Low Smoke Zero Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN50267-2-1, BS EN50267-2-2
Dimension
| No.of Cores | Nominal Conductor Area (mm2) |
No.and Diameter of Wires (no./mm) |
Thickness of Insulation (mm) |
Thickness of Bedding (mm) |
Diameter Under Armour (mm) |
Diameter of Armour Wire (mm) |
Thickness of Sheath (mm) |
Overall Diameter (mm) |
Approximate Weight (kg/km) |
| 5 | 1.5 | 7/0.53 | 0.7 | 1 | 12.5 | 1.25 | 1.8 | 18.6 | 681 |
| 7 | 7/0.53 | 0.7 | 1 | 13.7 | 1.25 | 1.8 | 19.8 | 784 | |
| 10 | 7/0.53 | 0.7 | 1 | 17.6 | 1.6 | 1.8 | 24.4 | 1169 | |
| 12 | 7/0.53 | 0.7 | 1 | 18.2 | 1.6 | 1.8 | 25 | 1253 | |
| 19 | 7/0.53 | 0.7 | 1 | 21.5 | 1.6 | 1.8 | 28.3 | 1605 | |
| 20 | 7/0.53 | 0.7 | 1 | 22 | 1.6 | 1.8 | 28.8 | 1661 | |
| 24 | 7/0.53 | 0.7 | 1 | 25.3 | 2 | 2 | 33.3 | 2194 | |
| 37 | 7/0.53 | 0.7 | 1.2 | 29.6 | 2 | 2.1 | 37.8 | 2846 | |
| 5 | 2.5 | 7/0.67 | 0.7 | 1 | 13.6 | 1.25 | 1.8 | 19.7 | 784 |
| 7 | 7/0.67 | 0.7 | 1 | 14.9 | 1.25 | 1.8 | 21 | 915 | |
| 10 | 7/0.67 | 0.7 | 1 | 19.2 | 1.6 | 1.8 | 26 | 1364 | |
| 12 | 7/0.67 | 0.7 | 1 | 19.9 | 1.6 | 1.8 | 26.7 | 1475 | |
| 19 | 7/0.67 | 0.7 | 1 | 23.6 | 1.6 | 1.9 | 30.6 | 1939 | |
| 20 | 7/0.67 | 0.7 | 1 | 24.2 | 1.6 | 1.9 | 31.2 | 2010 | |
| 24 | 7/0.67 | 0.7 | 1.2 | 28.3 | 2 | 2.1 | 36.5 | 2681 | |
| 37 | 7/0.67 | 0.7 | 1.2 | 32.6 | 2 | 2.2 | 41 | 3467 | |
| 5 | 4 | 7/0.85 | 0.7 | 1 | 15.1 | 1.6 | 1.6 | 21.5 | 1044 |
| 7 | 7/0.85 | 0.7 | 1 | 16.6 | 1.6 | 1.6 | 23 | 1227 | |
| 10 | 7/0.85 | 0.7 | 1 | 21.4 | 1.6 | 1.8 | 28.2 | 1649 | |
| 12 | 7/0.85 | 0.7 | 1 | 22.1 | 1.6 | 1.8 | 28.9 | 1801 | |
| 19 | 7/0.85 | 0.7 | 1 | 26.3 | 2 | 2 | 34.3 | 2676 | |
| 20 | 7/0.85 | 0.7 | 1.4 | 43.5 | 2.5 | 2.6 | 53.7 | 4264 | |
| 24 | 7/0.85 | 0.7 | 1.6 | 50.6 | 2.5 | 2.9 | 61.4 | 5104 | |
| 37 | 7/0.85 | 0.7 | 1.8 | 58.9 | 2.5 | 3.2 | 70.3 | 6527 |
