Application
Suitable for connecting instruments and control systems for analogue or digital signal transmission.
Recommended for outdoor installation, on racks, trays, in conduits, in dry and wet locations, for direct burial.

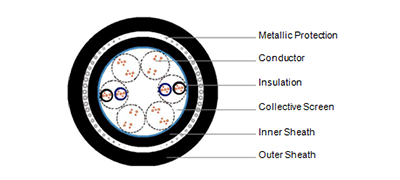

Construction
| Conductor: | Solid, stranded or flexible plain or metal coated copper in accordance with class1, 2 or 5 of | |
| HD383 in the range of 0.5mm2 to 2.5mm2. | ||
| Insulation: | PE or XLPE to EN 50290. Suitable alternative materials are under consideration. | |
| Pair Identification: | Black&Blue color with number on the cores for multi pairs, start with 1 in the centre. | |
| Wrapping: | At least 1 layer of plastic tape. | |
| Collective Screen: | Aluminimum foil tape over a tinned copper drain wire. | |
| Inner Sheath: | Halogen free flame retardant compound LSZH, to EN 50290-2-27. |
Metallic Protection: Round galvanised steel wires armour.
Outer Sheath: Halogen free flame retardant compound LSZH, to EN 50290-2-27.
Electrical data at 20°C
Character |
Unit | Values | |||||
| Conductor size | nom. | mm² | 0.5 | 0.75 | 1.0 | 1.5 | |
| Conductor resistance | max. | Ω/km | 36.7 | 25.0 | 18.5 | 12.3 | |
| Insulation resistance | min. | MΩ x km | 5000 | ||||
| L/R (ratio) | max. | µH/Ω | 25 | 40 | |||
| Inductance | max. | mH/km | 1 | ||||
| Mutual capacitance | max. | nF/m | 65 | 75 | |||
| Capacitance unbalance | max. | pF/500 m | 500 | ||||
| Test voltage | V | 2000 | |||||
| Operating voltage U0 / U | max. | V | 500 | ||||
