Product Type Features
Sealable: Yes
Material Type: Copper Alloy
Surface Treatment: Tin Plating
Automotive Terminal Wire Type: Copper
Operating Temperature Range: -40–140℃ [-40–284 °F]
Contact Features
Typical Current Rating: 7.5A
Crimp Type: F-Crimp
Terminal & Splice Type: Receptacle
Automotive Terminal Interface Plating: Tin (Sn)
Contact Termination Area Plating Material: Tin (Sn)
Termination Features
Automotive Terminal Termination Method: Crimp

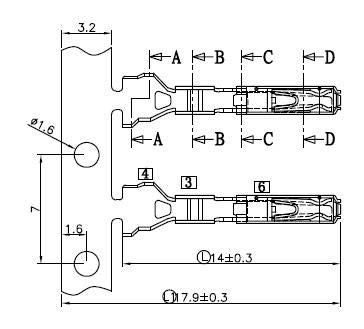

Dimensions
Material Thickness: Main Body: 0.2mm
Wire Size: 0.25-0.35mm2
Wire Insulation Diameter: 1.1 – 1.6 mm[0.043 – 0.063 in]
Packaging
Packing Method: Reel
Packaging Quantity per Reel: 9000pcs
1 carton: 3 reels
