3.8/6.6kV, 6.35/11kV, 8.7/15kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cables (Radial Field)

3.86.6kV 6.3511kV 8.715kV HF EPR Insulated SW2SW4 Sheathed Armoured Flame Retardant Power Control Cables

Application:

These medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

Standards:  BS 6883
 IEC 60332-3A Flame retardant
 IEC 60754-1; IEC 60754-2 Corrosivity
 IEC 61034-2 Smoke density
 Cold bend and impact (-40°C) (on request)
 CSA C22.2 No. 38-95 (on request)

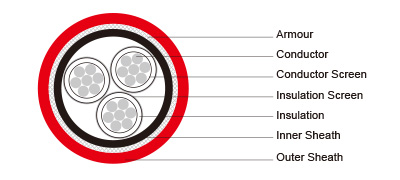

Construction:  Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
 Conductor Screen: Semiconducting layer or tape.
 Insulation: HF-EPR GP5 according to BS 7655 1.2.
 Insulation Screen: Semiconducting layer or tape +Tinned copper tape.
 Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
Mechanical and Thermal Properties: Minimum Internal Bending Radius: 15×OD (single core); 20×OD (three core)
Temperature Range: -40℃ ~ +90℃

Dimensions and Weight

3.8/6.6kV

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Minimum Diameter Over Inner Sheath mm Maximum Diameter Over Inner Sheath mm Nominal Armour Wire Diameter mm Nominal Outer Sheath Thickness mm Minimum Overall Diameter mm Maximum Overall Diameter mm Approx. Weight kg/km
1×16 3.0 1.3 16.0 18.0 0.3 1.4 20.2 23.0 790
1×25 3.0 1.3 17.6 19.7 0.3 1.5 21.9 24.9 950
1×35 3.0 1.4 18.7 20.8 0.3 1.5 23.0 26.0 1060
1×50 3.0 1.4 19.9 22.3 0.3 1.6 24.4 27.4 1320
1×70 3.0 1.5 21.8 24.3 0.3 1.7 26.5 29.6 1610
1×95 3.0 1.6 23.7 26.3 0.3 1.8 28.6 31.8 1930
1×120 3.0 1.6 25.4 28.0 0.3 1.8 30.2 33.9 2260
1×150 3.0 1.7 27.0 29.8 0.45 1.9 32.8 36.6 2760
1×185 3.0 1.8 29.0 32.1 0.45 2.0 35.0 38.9 3210
1×240 3.0 1.9 31.7 35.0 0.45 2.1 37.9 41.9 3960
1×300 3.0 2.0 34.3 37.6 0.45 2.2 40.6 45.1 4660
1×400 3.0 2.1 37.6 41.4 0.45 2.4 44.4 49.0 5470
1×500 3.2 2.3 41.4 45.4 0.45 2.5 48.4 53.6 6610
1×630 3.2 2.4 45.1 49.2 0.45 2.7 52.4 57.8 8230
3×16 3.0 1.8 32.7 36.0 0.45 2.1 38.9 43.3 2610
3×25 3.0 2.0 36.5 39.9 0.45 2.2 42.9 47.5 3220
3×35 3.0 2.0 38.4 41.9 0.45 2.3 44.9 49.6 3700
3×50 3.0 2.2 41.3 45.3 0.45 2.4 48.1 53.3 4360
3×70 3.0 2.3 45.3 49.4 0.45 2.6 52.4 57.4 5410
3×95 3.0 2.5 49.3 53.9 0.45 2.8 56.8 62.4 6710
3×120 3.0 2.6 53.1 57.8 0.45 2.9 60.8 67.0 7770
3×150 3.0 2.7 56.6 61.4 0.45 3.1 64.6 70.9 9160
3×185 3.0 2.9 60.8 66.1 0.45 3.2 69.1 76.0 10430
3×240 3.0 3.1 66.6 72.2 0.45 3.5 75.5 82.6 12840

6.35/11kV

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Minimum Diameter Over Inner Sheath mm Maximum Diameter Over Inner Sheath mm Nominal Armour Wire Diameter mm Nominal Outer Sheath Thickness mm Minimum Overall Diameter mm Maximum Overall Diameter mm Approx. Weight kg/km
1×16 3.4 1.3 16.8 18.8 0.3 1.5 21.1 24 810
1×25 3.4 1.4 18.6 20.7 0.3 1.5 22.9 25.9 980
1×35 3.4 1.4 19.4 21.9 0.3 1.6 24.0 27.0 1110
1×50 3.4 1.5 20.8 23.3 0.3 1.6 25.3 28.4 1360
1×70 3.4 1.5 22.6 25.1 0.3 1.7 27.3 30.4 1660
1×95 3.4 1.6 24.4 27.1 0.3 1.8 29.3 33.0 1970
1×120 3.4 1.7 26.3 29.0 0.45 1.9 32.1 35.9 2360
1×150 3.4 1.7 27.8 30.6 0.45 2.0 33.8 37.6 2810
1×185 3.4 1.8 29.8 32.9 0.45 2.0 35.8 39.7 3260
1×240 3.4 1.9 32.5 35.8 0.45 2.2 38.9 43.3 4020
1×300 3.4 2.0 35.0 38.4 0.45 2.3 41.6 46.1 4760
1×400 3.4 2.1 38.4 41.9 0.45 2.4 45.1 49.8 5610
1×500 3.4 2.3 41.8 45.8 0.45 2.5 48.8 54.0 6820
1×630 3.4 2.4 45.5 49.6 0.45 2.7 52.8 58.2 8480
3×16 3.4 1.9 34.5 37.9 0.45 2.1 40.7 45.2 2660
3×25 3.4 2.0 38.2 41.6 0.45 2.3 44.7 49.4 3310
3×35 3.4 2.1 40.2 44.1 0.45 2.4 47.0 51.7 3960
3×50 3.4 2.2 43.0 47.0 0.45 2.5 50.0 55.2 4570
3×70 3.4 2.4 47.1 51.3 0.45 2.7 54.4 59.9 5610
3×95 3.4 2.5 51.0 55.6 0.45 2.8 58.5 64.5 6820
3×120 3.4 2.7 55.0 59.8 0.45 3.0 62.9 69.1 8070
3×150 3.4 2.8 58.4 63.3 0.45 3.1 66.5 72.8 9260
3×185 3.4 3.0 62.7 68.1 0.45 3.3 71.2 78.1 10960
3×240 3.4 3.2 68.5 74.1 0.45 3.6 77.5 85.2 13390

8.7/15kV

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Inner Sheath Thickness mm Minimum Diameter Over Inner Sheath mm Maximum Diameter Over Inner Sheath mm Nominal Armour Wire Diameter mm Nominal Outer Sheath Thickness mm Minimum Overall Diameter mm Maximum Overall Diameter mm Approx. Weight kg/km
1×25 4.5 1.5 20.9 23.4 0.3 1.6 25.4 28.5 1150
1×35 4.5 1.5 21.7 24.3 0.3 1.7 26.4 29.6 1260
1×50 4.5 1.5 22.9 25.5 0.3 1.7 27.6 30.8 1510
1×70 4.5 1.6 24.9 27.5 0.3 1.8 29.8 33.4 1770
1×95 4.5 1.7 26.7 29.5 0.45 1.9 32.6 36.3 2270
1×120 4.5 1.8 28.6 31.4 0.45 2.0 34.6 38.5 2730
1×150 4.5 1.8 30.1 33.3 0.45 2.1 36.3 40.2 3020
1×185 4.5 1.9 32.1 35.3 0.45 2.1 38.3 42.3 3490
1×240 4.5 2.0 34.8 38.2 0.45 2.2 41.2 45.7 4260
1×300 4.5 2.1 37.3 40.8 0.45 2.4 44.1 48.7 4810
1×400 4.5 2.2 40.7 44.6 0.45 2.5 47.6 52.4 6160
1×500 4.5 2.4 44.1 48.2 0.45 2.6 51.3 56.6 7330
1×630 4.5 2.5 47.8 52.0 0.45 2.8 55.3 60.8 8800
3×25 4.5 2.2 43.1 47.1 0.45 2.5 50.1 55.4 3610
3×35 4.5 2.3 45.2 49.2 0.45 2.6 52.3 57.7 4510
3×50 4.5 2.4 47.9 52.1 0.45 2.7 55.3 60.8 5210
3×70 4.5 2.6 52.1 56.7 0.45 2.9 59.8 65.9 6390
3×95 4.5 2.7 55.9 60.7 0.45 3.0 63.8 70.1 7660
3×120 4.5 2.9 59.9 64.9 0.45 3.2 68.2 75.1 8810
3×150 4.5 3.0 63.3 68.7 0.45 3.3 71.8 78.8 10070
3×185 4.5 3.2 67.6 73.2 0.45 3.5 76.5 83.7 11420
