600/1000V LSZH Sheathed, armoured (2cores)

600 1000V LSZH Sheathed armoured 2cores

Application:

The cables is mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
Standard: Basic design to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING
600/1000V

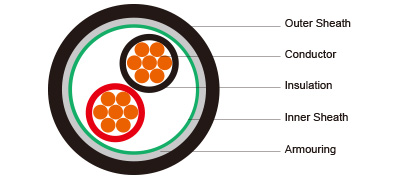

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, normal stranded or compact stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder and inner covering: PP, PET, LSZH
Armouring: Double steel tape
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE
Insulation Colour: Red, Yellow, Blue, Green/Yellow (x3)
Outer sheath: Black or as order

  with earth conductor without earth conductor
2Cores   Brown,Blue
3Cores Yellow/Green,Brown,Blue Brown,Gray,Black
4Cores Yellow/Green,Brown,Gray,Black Brown,Gray,Black,Blue
5Cores Yellow/Green,Brown,Gray,Black,Blue Brown,Gray,Black,Blue,Black
above 5 Cores Yellow/Green,Black Numbered Black Numbered

 Sheath Colour: Black

Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 10x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor
No. of Core X Cross Section No./Nominal Diameter of Strands Combined Earth Size Nominal Insulation Thickness Steel Tape Thickness Nominal Sheath Thickness Nominal Overall Diameter Max.DC resistance of conductor @20°C Approx. Weight
mm² No/mm mm mm mm mm mm Ω/km Kg/km
2x6 7/1.04 2.90 0.7 0.2 1.8 16.8 3.08 417
2x10 7/1.35 3.75 0.7 0.2 1.8 18.5 1.83 539
2x16 7/1.70 4.75 0.7 0.2 1.8 20.5 1.15 704
2x25 7/2.14 5.85 0.7 0.2 1.8 23.5 0.727 971
2x35 7/2.52 6.90 0.9 0.2 1.8 25.6 0.524 1216
2x50 19/1.78 8.15 1.0 0.2 1.9 28.5 0.387 1582
2x70 19/2.14 9.75 1.1 0.2 1.9 32.3 0.268 3081
2x95 19/2.52 11.45 1.1 0.2 2.0 36.4 0.193 2749
2x120 37/2.03 12.85 1.2 0.5 2.2 41.1 0.153 3727
2x150 37/2.25 14.30 1.4 0.5 2.3 45.1 0.124 4509
2x185 37/2.52 15.95 1.6 0.5 2.5 49.9 0.0991 5523
2x240 61/2.25 18.25 1.7 0.5 2.6 55.3 0.0754 6981
2x300 61/2.52 20.40 1.8 0.5 2.8 60.7 0.0601 8383
2x400 61/2.85 23.35 2.0 0.5 3.0 67.9 0.0470 10897

Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)

Conductor crosssectional area Reference Method 1 (clipped direct Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) In single-way ducts Laid direct in ground
one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c.
1 2 3 4 5 6 7 8 9
mm² A A A A A A A A
6 62 53 66 56 - 50 - 60
10 85 73 90 78 - 65 - 80
16 110 94 115 99 115 94 140 115
25 146 124 152 131 145 125 180 150
35 180 154 188 162 175 150 215 180
50 219 187 228 197 210 175 255 215
70 279 238 291 251 260 215 315 265
95 338 289 354 304 310 260 380 315
120 392 335 410 353 355 300 430 360
150 451 386 472 406 400 335 480 405
185 515 441 539 463 455 380 540 460
240 607 520 636 546 520 440 630 530
300 698 599 732 628 590 495 700 590
400 787 673 847 728 660 560 790 670

Voltage Drop (Per Amp Per Meter)

Conductor cross- sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
In ducts or in ground In ducts or in ground
1 2 3 4 5 6
mm² mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
6 7.9 7.9 6.8 7.9 6.5
10 4.7 4.7 4.0 4.7 3.9
16 2.9 2.9 2.5 2.9 2.6
    r x z r x z
25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600
35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200
50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870
70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610
95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450
120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360
150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300
185 0.2500 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250
240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210
300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190
400 0.120 0.130 0.140 0.190 0.115 0.120 0.165 0.190 0.180
