600/1000V PVC Insulated, Non-sheathed Power Cables (Single Core)

(CU/PVC 600/1000V Class 2)

600 1000V PVC Insulated Non sheathed Power Cables Single Core

Application:

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS: Basic design adapted to BS 6491X

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

600/1000V

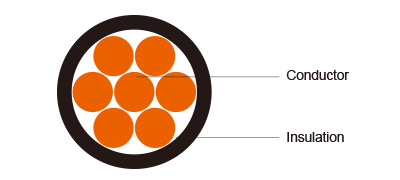

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C

250°C in short-circuit for 5secs max.

Minimum bending radius: 8 x Overall Diameter (unarmoured cable)

10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor FGD300 1V-R
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Insulation Thickness Insulated, Non-Sheathed
Nominal Overall Diameter Approx. Weight
Noxmm2 No./mm mm mm kg/km
1x1.5 7/0.53 0.7 3.1 22
1x2.5 7/0.67 0.8 3.7 34
1x4 7/0.85 0.8 4.3 50
1x6 7/1.04 0.8 4.8 70
1x10 7/1.35 1.0 6.2 116
1x16 7/1.70 1.0 7.2 174
1x25 7/2.14 1.2 9.0 276
1x35 7/2.52 1.2 10.0 366
1x50 19/1.78 1.4 11.9 502
1x70 19/2.14 1.4 13.7 706
1x95 19/2.52 1.6 16.0 974
1x120 37/2.03 1.6 17.6 1213
1x150 37/2.25 1.8 19.6 1492
1x185 37/2.52 2.0 21.8 1868
1x240 61/2.25 2.2 24.4 2443
1x300 61/2.52 2.4 27.7 3055
1x400 61/2.85 2.6 31.1 3888
1x500 61/3.20 2.8 34.6 4880
1x630 127/2.52 2.8 38.6 6229

Electrical Properties

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Method  4 (enclosed in conduit  in thermally insulating wall etc) Reference  Method 3 (enclosed in conduit on  a wall or in  trunking etc) Reference Method  1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
  2 cables, single- phase a.c. or d.c. 3 or 4 cables,  3-phase a.c. 2 cables, single- phase a.c. or d.c 3 or 4 cables,  3-phase a.c. 2 cables, single- phase a.c. or d.c. flat and touching 3 or 4 cables,  3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c. or flat and touching 3 or 4 cables,  3-phase a.c. flat and touching or trefoil 2 cables, single- phase a.c. or d.c.  or 3 c ables three phase 2 cables,  single- phase a.c. or d.c.  or 3 cables three  phase   3 cables, trefoil  3-phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -
4 33 30 40 35 46 41 - - - - -
6 43 39 51 45 59 54 - - - - -
10 58 53 71 63 81 74 - - - - -
16 76 70 95 85 109 99 - - - - -
25 100 91 126 111 143 130 158 140 183 163 138
35 125 111 156 138 176 161 195 176 226 203 171
50 149 135 189 168 228 209 293 215 274 246 209
70 189 170 240 214 293 268 308 279 351 318 270
95 228 205 290 259 355 326 375 341 426 389 330
120 263 235 336 299 413 379 436 398 495 453 385
150 300 270 375 328 476 436 505 461 570 524 445
185 341 306 426 370 545 500 579 530 651 600 511
240 400 358 500 433 644 590 686 630 769 711 606
300 459 410 573 493 743 681 794 730 886 824 701
400 - - 684 584 868 793 915 849 1065 994 820
500 - - 783 666 990 904 1044 973 1228 1150 936
630 - - 900 764 1130 1033 1191 1115 1423 1338 1069

Voltage Drop (Per Amp Per Meter)

Size of conductor 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1 and 11 (clipped direct or on trays touching) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1, 11 and 12 (in trefoil) Ref. Methods 1 and 11 (Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
4 33 12 10 10 10 10
6 7.8 7.9 6.8 6.8 6.8 6.8
10 4.7 4.7 4.7 4 4 4
16 2.9 2.9 2.9 2.5 2.5 2.5
    r x z r x z r x z r x z r x z
25 1.85 1.85 0.31 1.90 1.85 0.190 1.85 1.60 0.27 1.65 1.600 0.165 1.600 1.600 0.190 1.600
35 1.35 1.35 0.29 1.35 1.35 0.180 1.35 1.15 0.25 1.15 1.150 0.155 1.50 1.150 0.180 1.150
50 0.99 1.00 0.29 1.05 0.99 0.180 1.00 0.87 0.25 0.90 0.860 0.155 0.870 0.860 0.180 0.870
70 0.68 0.70 0.28 0.75 0.68 0.175 0.71 0.60 0.24 0.65 0.590 0.150 0.610 0.590 0.175 0.620
95 0.49 0.51 0.27 0.58 0.49 0.170 0.52 0.44 0.23 0.50 0.430 0.145 0.450 0.430 0.170 0.460
120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.35 0.23 0.42 0.340 0.140 0.370 0.340 0.165 0.380
150 0.32 0.33 0.26 0.43 0.32 0.165 0.36 0.29 0.23 0.37 0.280 0.140 0.310 0.280 0.165 0.320
185 0.25 0.27 0.26 0.37 0.26 0.165 0.30 0.23 0.23 0.32 0.220 0.140 0.260 0.220 0.165 0.280
240 0.19 0.21 0.26 0.33 0.20 0.160 0.25 0.185 0.22 0.29 0.170 0.140 0.220 0.170 0.165 0.240
300 0.155 0.175 0.25 0.31 0.16 0.160 0.22 0.150 0.22 0.27 0.140 0.140 0.195 0.135 0.160 0.210
400 0.12 0.140 0.25 0.29 0.13 0.155 0.20 0.125 0.22 0.25 0.110 0.135 0.175 0.110 0.160 0.195
500 0.093 0.120 0.25 0.28 0.105 0.155 0.185 0.100 0.22 0.24 0.090 0.135 0.160 0.088 0.160 0.180
630 0.072 0.100 0.25 0.27 0.086 0.155 0.175 0.088 0.21 0.23 0.074 0.135 0.150 0.071 0.160 0.170
