600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (2-5 Cores)

CU/XLPE/PVC 600/1000V Class 2
CU/XLPE/PVC/SWA/PVC 600/1000V Class 2

600 1000V XLPE Insulated PVC Sheathed Armoured Power Cables 2 5 Cores

Application:

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS: Basic design adapted to IEC 60502-1; BS 5467

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

600/1000V

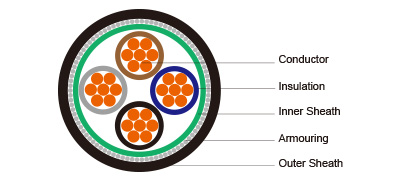

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Inner Sheath(optional): PVC Compound

Armouring(optional): Galvanized Steel Wire

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5secs max.

Minimum bending radius: 8 x Overall Diameter (unarmoured cable)

10 x Overall Diameter (armoured cable)

CONSTRUCTION PARAMETERS

Conductor
No. of Core X Cross Section No./ Nominal Diameter of Strands Nominal Insulation Thickness Unarmoured Armoured
Nominal Overall Diameter Approx. Weight Diameter Over Inner Sheath Armour Wire Diameter Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm mm kg/km
2Cores
2G1.5 7/0.53 0.7 10.0 126 8.5 0.9 13.9 350
2G2.5 7/0.67 0.7 10.8 158 9.3 0.9 14.7 400
2G4 7/0.85 0.7 11.9 205 10.4 0.9 15.8 475
2G6 7/1.04 0.7 13.0 264 11.5 0.9 16.9 560
2G10 7/1.35 0.7 14.9 378 13.4 1.25 19.5 810
2G16 7/1.70 0.7 17.0 534 15.5 1.25 21.6 980
2G25 7/2.14 0.9 20.4 650 18.9 1.6 25.7 1410
2G35 7/2.52 0.9 22.7 880 21.2 1.6 28.0 1930
3Cores
3G1.5 7/0.53 0.7 10.5 145 9.0 0.9 14.4 390
3G2.5 7/0.67 0.7 11.4 185 9.9 0.9 15.3 450
3G4 7/0.85 0.7 12.5 247 11.0 0.9 16.4 540
3G6 7/1.04 0.7 13.8 323 11.6 1.25 17.7 745
3G10 7/1.35 0.7 15.8 474 14.3 1.25 20.4 950
3G16 7/1.70 0.7 18.0 682 16.5 1.25 23.0 1250
3G25 7/2.14 0.9 21.7 910 20.2 1.6 27.0 1840
3G35 7/2.52 0.9 24.0 1180 22.4 1.6 29.2 2050
3G50 19/1.78 1.0 25.5 1600 24.2 1.6 31.2 2590
3G70 19/2.14 1.1 29.0 2240 28.2 2.0 36.2 3560
3G95 19/2.52 1.1 33.5 3050 31.7 2.0 40.1 4590
3G120 37/2.03 1.2 37.5 3800 36.0 2.0 44.6 5810
3G150 37/2.25 1.4 40.5 4640 39.5 2.5 49.5 6920
3G185 37/2.52 1.6 45.0 5870 43.3 2.5 53.5 8340
3G240 61/2.25 1.7 50.5 7670 48.4 2.5 59.0 10450
3G300 61/2.52 1.8 57.0 9460 54.4 2.5 65.4 12700
3G400 61/2.85 2.0 63.0 11945 57.8 2.5 70.0 15326
3Cores+1Core Earth Conductor
3G10+6 7/1.35 0.7 16.5 543 17.6 1.25 20.1 1042
3G16+10 7/1.70 0.7 18.85 793 20.6 1.25 22.5 1567
3G25+10 7/2.14 0.9 22.1 1021 26.3 1.25 23.6 2091
3G25+16 7/2.14 0.9 23.0 1070 26.6 1.25 25.8 2150
3G35+16 19/1.53 0.9 24.3 1349 26.8 1.6 27.7 2390
3G35+25 19/1.53 0.9 25.2 1470 27.2 1.6 28.6 2505
3G50+16 19/1.78 1 26.1 1769 28.5 1.6 29.8 2916
3G50+25 19/1.78 1 27.3 1890 29.2 1.6 31.3 3107
3G50+35 19/1.78 1 27.8 1995 30.0 1.6 32.0 3175
3G70+25 19/2.14 1.1 30.2 2530 34.0 2.0 35.0 3203
3G70+35 19/2.14 1.1 30.9 2660 34.5 2.0 35.9 4067
3G70+50 19/2.14 1.1 31.5 2840 35 2.0 36.8 4310
3G95+16 19/2.52 1.1 34.6 3240 36.3 2.0 38.0 4856
3G95+25 19/2.52 1.1 35.1 3340 36.7 2.0 39.3 5047
3G95+35 19/2.52 1.1 36.0 3470 37.2 2.0 40.2 5115
3G95+50 19/2.52 1.1 36.8 3650 37.6 2.0 41.4 5289
3G120+35 37/2.03 1.2 38.2 3920 39.4 2.5 44.0 6160
3G120+50 37/2.03 1.2 39.1 4400 39.9 2.5 44.9 6473
3G120+70 37/2.03 1.2 40.0 4610 40.3 2.5 45.6 6793
3G120+95 37/2.03 1.2 41.2 4820 41.2 2.5 46.8 7120
3G150+50 37/2.25 1.4 41.5 5240 45.0 2.5 49.7 7549
3G150+50 37/2.25 1.4 42.3 5450 45.2 2.5 49.8 7565
3G150+95 37/2.25 1.4 43.6 5660 45.5 2.5 50.8 8196
3G150+120 37/2.25 1.4 44.8 6240 46.0 2.5 51.8 8590
3G185+70 37/2.52 1.6 46.0 6470 50.4 2.5 54.0 8950
3G185+95 37/2.52 1.6 47.5 6680 50.6 2.5 54.7 9573
3G185+120 37/2.52 1.6 47.9 6990 51.0 2.5 55.8 9968
3G185+150 37/2.52 1.6 48.5 7395 51.6 2.5 56.6 1023
3G240+70 61/2.25 1.7 49.2 7580 57.0 2.5 56.0 11294
3G240+95 61/2.25 1.7 52.3 8480 58.0 2.5 57.9 11620
3G240+120 61/2.25 1.7 53.4 8690 59.0 2.5 61.0 12015
3G240+150 61/2.25 1.7 54.9 9095 60.0 2.5 62.2 12373
3G300+95 61/2.52 1.8 55.6 9380 63 2.5 64.7 13803
3G300+120 61/2.52 1.8 58.1 10480 64.2 2.5 65.9 14197
3G300+150 61/2.52 1.8 57.3 11170 65.7 2.5 66.8 14556
3G300+185 61/2.52 1.8 58.7 11480 66.4 2.5 68.1 15015
3G300+240 61/2.52 1.8 62.4 11290 67 2.5 69.4 15697
4Cores
4G1.5 7/0.53 0.7 11.3 169 10.0 0.9 15.4 430
4G2.5 7/0.67 0.7 12.3 220 10.8 0.9 16.2 505
4G4 7/0.85 0.7 13.6 297 12.1 0.9 17.5 710
4G6 7/1.04 0.7 15.0 392 13.5 1.25 19.6 855
4G10 7/1.35 0.7 17.2 585 15.7 1.25 21.8 1120
4G16 7/1.70 0.7 19.7 851 18.2 1.6 25.0 1600
4G25 7/2.14 0.9 23.9 1200 22.4 1.6 29.2 2160
4G35(S) 7/2.52 0.9 25.0 1600 24.4 1.6 31.4 2560
4G50(S) 19/1.78 1.0 28.0 2200 28.0 1.6 35.2 3180
4G70(S) 19/2.14 1.1 32.0 3050 32.2 2.0 40.6 4490
4G95(S) 19/2.52 1.1 37.0 4070 36.0 2.0 44.6 5725
4G120(S) 37/2.03 1.2 42.0 5915 38.0 2.5 50.0 7550
4G150(S) 37/2.25 1.4 46.0 6350 42.8 2.5 53.0 8555
4G185(S) 37/2.52 1.6 50.0 7890 48.4 2.5 59.0 10560
4G240(S) 61/2.25 1.7 57.0 10400 55.0 2.5 66.0 13180
4G300(S) 61/2.52 1.8 63.0 12810 59.6 2.5 71.0 16100
4G400(S) 61/2.85 2.0 71.0 15869 66.1 3.15 79.4 20715
4G500(S) 61/3.20 2.2 78.0 20300 74.6 3.15 88.5 25347
4Cores+1Core Earth Conductor
4G10+6 7/1.35 0.7 19 654 17.6 1.25 26.1 1362
4G16+10 7/1.70 0.7 21.95 962 20.6 1.25 27.3 1473
4G25+10 7/2.14 0.7 26.65 1311 26.3 1.25 32.6 1680
4G25+16 7/2.14 0.7 27.3 1369 26.6 1.25 33.4 2012
4G35+16 19/1.53 0.9 27.6 1769 25.6 1.6 44.5 2940
4G35+25 19/1.53 0.9 28.4 1890 26.2 1.6 46.2 3050
4G50+16 19/1.78 1 29.4 2369 28.5 1.6 48.2 3560
4G50+25 19/1.78 1 31.6 2490 29.2 1.6 49.9 3670
4G50+35 19/1.78 1 33.6 3249 30.0 1.6 42.5 3759
4G70+25 19/2.14 1.1 34.2 3340 34 2.0 55.1 4980
4G70+35 19/2.14 1.1 35.6 3470 34.5 2.0 44.9 5036
4G70+50 19/2.14 1.1 37.8 3650 35 2.0 45.9 5468
4G95+16 19/2.52 1.1 41.5 4239 36.3 2.0 47.3 6105
4G95+25 19/2.52 1.1 42.6 4360 36.7 2.0 49.0 6215
4G95+35 19/2.52 1.1 43.3 4510 37.2 2.0 50.1 6325
4G95+50 19/2.52 1.1 44.1 4670 37.6 2.0 51.7 6455
4G120+35 37/2.03 1.2 42.6 6335 39.4 2.5 54.2 7968
4G120+50 37/2.03 1.2 43.8 6515 39.9 2.5 56.9 8280
4G120+70 37/2.03 1.2 45.9 6725 40.3 2.5 57.9 8511
4G120+95 37/2.03 1.2 46.4 6920 41.2 2.5 61.2 8790
4G150+70 37/2.25 1.4 47.3 6950 45.2 2.5 56.5 8879
4G150+95 37/2.25 1.4 48.5 7160 45.5 2.5 57.6 10179
4G150+120 37/2.25 1.4 50.2 7370 46.0 2.5 58.7 10739
4G185+70 37/2.52 1.6 53.7 7965 50.4 2.5 62.0 11200
4G185+95 37/2.52 1.6 52.4 8490 50.6 2.5 63.2 1263
4G185+120 37/2.52 1.6 53.9 8700 51.0 2.5 64.2 13050
4G185+150 37/2.52 1.6 55.6 8910 51.6 2.5 65.4 13680
4G240+70 61/2.25 1.7 59.4 9260 57 2.5 66.9 14140
4G240+95 61/2.25 1.7 59.4 9600 58 2.5 68.7 14420
4G240+120 61/2.25 1.7 61.9 11210 59.0 2.5 72.8 14763
4G240+150 61/2.25 1.7 63.4 11420 60.0 2.5 73.1 15241
4G300+95 61/2.52 1.8 67.8 12010 63 2.5 74.6 17467
4G300+120 61/2.52 1.8 64.0 12110 64.2 2.5 75.1 18050
4G300+150 61/2.52 1.8 66.1 13830 65.7 2.5 76.4 18662
4G300+185 61/2.52 1.8 71.5 14520 67 2.5 77.3 19031
4G300+240 61/2.52 1.8 72.0 14830 67 2.5 78.6 19878
5cores
5G1.5 7/0.53 0.7 13.7 205 9.9 0.9 18.6 537
5G2.5 7/0.67 0.7 14.9 265 10.8 0.9 19.6 631
5G4 7/0.85 0.7 16.3 360 12.1 0.9 21.2 860
5G6 7/1.04 0.7 18.2 478 15.8 1.5 23.7 1036
5G10 7/1.35 0.7 20.8 720 24 2.8 26.0 1358
5G16 7/1.70 0.7 24.2 1050 27 2.8 30.0 1940
5G25 7/2.14 0.9 29.4 1485 34 2.8 35.4 2619
5G35 19/1.53 0.9 30.3 1940 24.4 1.6 38.1 3140
5G50 19/1.78 1 34 2667 28.0 1.6 42.6 3555
5G70 19/2.14 1.1 38.5 3698 32.2 2.0 49.2 5444
5G95 19/2.52 1.1 44.6 4934 36.0 2.0 54.1 6941
5G120 37/2.03 1.2 5.8 7171 38.0 2.5 60.6 9154
5G150 37/2.25 1.4 55.6 7699 42.8 2.5 64.3 10372
5G185 37/2.52 1.6 60.4 9566 48.4 2.5 71.5 12828
5G240 61/2.25 1.7 69.1 12610 55.0 2.5 80 15980
5G300 61/2.52 1.8 76.4 15532 59.6 2.5 86.1 19521
5G400 61/2.85 2 86.1 19241 66.1 3.15 96.3 25116

Electrical Properties Conductor Operating Temperature : 90°C Ambient Temperature : 30°C

FGD400 1RZ1-R Current-Carrying Capacities (Amp)

Conductor crosssectional area Reference Method 4 (enclosed in conduit in thermally insulating wall etc) Reference Method 3 (enclosed in conduit on a wall or in trunking etc) Reference Method 1 (clipped direct) Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12(free air)
Horizontal flat spaced Vertical flat spaced Trefoil
  2 cables, singlephase a.c. or d.c. 3 or 4 cables, 3-phase a.c. 3 or 4 cables, 3-phase a.c. 3 or 4 cables, 3- phase a.c. 2 cables, singlephase a.c. or d.c. flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or flat and touching 3 or 4 cables, 3-phase a.c. flat and touching or trefoil 2 cables, singlephase a.c. or d.c. or 3 c ables three phase 2 cables, singlephase a.c. or d.c. or 3 cables three phase 3 cables, trefoil 3-phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -
4 33 30 40 35 46 41 - - - - -
6 43 39 51 45 59 54 - - - - -
10 58 53 71 63 81 74 - - - - -
16 76 70 95 85 109 99 - - - - -
25 100 91 126 111 143 130 158 140 183 163 138
35 125 111 156 138 176 161 195 176 226 203 171
50 149 135 189 168 228 209 293 215 274 246 209
70 189 170 240 214 293 268 308 279 351 318 270
95 228 205 290 259 355 326 375 341 426 389 330
120 263 235 336 299 413 379 436 398 495 453 385
150 300 270 375 328 476 436 505 461 570 524 445
185 341 306 426 370 545 500 579 530 651 600 511
240 400 358 500 433 644 590 686 630 769 711 606
300 459 410 573 493 743 681 794 730 886 824 701
400 - - 684 584 868 793 915 849 1065 994 820
500 - - 783 666 990 904 1044 973 1228 1150 936

Voltage Drop (Per Amp Per Meter)

Size of conductor 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1 and 11 (clipped direct or on trays touching) Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) Ref. Methods 1, 11 and 12 (in trefoil) Ref. Methods 1 and 11 (Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
4 33 12 10 10 10 10
6 7.8 7.9 6.8 6.8 6.8 6.8
10 4.7 4.7 4.7 4 4 4
16 2.9 2.9 2.9 2.5 2.5 2.5
    r x z r x z r x z r x z r x z
25 1.85 1.85 0.31 1.90 1.85 0.190 1.85 1.60 0.27 1.65 1.600 0.165 1.600 1.600 0.190 1.600
35 1.35 1.35 0.29 1.35 1.35 0.180 1.35 1.15 0.25 1.15 1.150 0.155 1.50 1.150 0.180 1.150
50 0.99 1.00 0.29 1.05 0.99 0.180 1.00 0.87 0.25 0.90 0.860 0.155 0.870 0.860 0.180 0.870
70 0.68 0.70 0.28 0.75 0.68 0.175 0.71 0.60 0.24 0.65 0.590 0.150 0.610 0.590 0.175 0.620
95 0.49 0.51 0.27 0.58 0.49 0.170 0.52 0.44 0.23 0.50 0.430 0.145 0.450 0.430 0.170 0.460
120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.35 0.23 0.42 0.340 0.140 0.370 0.340 0.165 0.380
150 0.32 0.33 0.26 0.43 0.32 0.165 0.36 0.29 0.23 0.37 0.280 0.140 0.310 0.280 0.165 0.320
185 0.25 0.27 0.26 0.37 0.26 0.165 0.30 0.23 0.23 0.32 0.220 0.140 0.260 0.220 0.165 0.280
240 0.19 0.21 0.26 0.33 0.20 0.160 0.25 0.185 0.22 0.29 0.170 0.140 0.220 0.170 0.165 0.240
300 0.155 0.175 0.25 0.31 0.16 0.160 0.22 0.150 0.22 0.27 0.140 0.140 0.195 0.135 0.160 0.210
400 0.12 0.140 0.25 0.29 0.13 0.155 0.20 0.125 0.22 0.25 0.110 0.135 0.175 0.110 0.160 0.195
500 0.093 0.120 0.25 0.28 0.105 0.155 0.185 0.100 0.22 0.24 0.090 0.135 0.160 0.088 0.160 0.180



FGD400 1RZ1MZ1-R Current-Carrying Capacities (Amp)

Conductor crosssectional area Reference Method 1 (clipped direct) Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) In single-way ducts Laid direct in ground
one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c.
1 2 3 4 5 6 7 8 9
mm2 A A A A A A A A
1.5 27 23 29 25 - 23 - 28
2.5 36 31 39 33 - 30 - 36
4 49 42 52 44 - 40 - 48
6 62 53 66 56 - 50 - 60
10 85 73 90 78 - 65 - 80
16 110 94 115 99 115 94 140 115
25 146 124 152 131 145 125 180 150
35 180 154 188 162 175 150 215 180
50 219 187 228 197 210 175 255 215
70 279 238 291 251 260 215 315 265
95 338 289 354 304 310 260 380 315
120 392 335 410 353 355 300 430 360
150 451 386 472 406 400 335 480 405
185 515 441 539 463 455 380 540 460
240 607 520 636 546 520 440 630 530
300 698 599 732 628 590 495 700 590
400 787 673 847 728 660 560 790 670

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. 3 or 4 cables, 3-phase a.c.
In ducts or in ground In ducts or in ground
1 2 3 4 5 6
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31.0 31.0 27.0 31.0 25.0
2.5 19.0 19.0 16.0 19.0 15.0
4 12.0 12.0 10.0 12.0 9.7
6 7.9 7.9 6.8 7.9 6.5
10 4.7 4.7 4.0 4.7 3.9
16 2.9 2.9 2.5 2.9 2.6
    r x z r x z
25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600
35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200
50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870
70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610
95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450
120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360
150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300
185 0.250 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250
240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210
300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190
400 0.120 0.130 0.140 0.190 0.115 0.120 0.165 0.190 0.180





Quick Quote
« 450/750V XLPE Insulated, PVC Sheathed, Screened Power Cables (2-4 Cores) 450/750V XLPE Insulated, PVC Sheathed Power Cables (Multicore) »
