600/1000V XLPE Insulated, PVC Sheathed, Screened Power Cables (4 Cores)

(CU/XLPE/CUTO/PVC/SWA/PVC 600/1000V Class 2)

600 1000V XLPE Insulated PVC Sheathed Screened Power Cables 4 Cores

Application:

This cables are designed specifi cally to suit the broad spectrum of requirements of Variable Speed Drives and also include features for reducing the transmission of electromagnetic interference.
This range of screened cables drastically reduce interferences from electrical noise, especially in Variable Speed Drive (VSD) applications and are manufactured with fixed conductors.
With shield conductivity of 1/10th of phase conductor conductivity, this range of VSD cables effectively restrain radiated and conducted radio-frequency emissions.

STANDARDS: Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

600/1000V

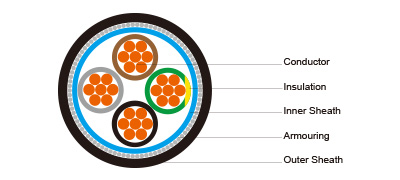

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Inner sheath1: PVC Compound

Screen: Copper TapeInner

sheath2: PVC Compound

Armouring: Galvanised Steel Wire

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5secs max.

Minimum bending radius: 12 x Overall Diameter (for 1.5mm2 to 300mm2)

CONSTRUCTION PARAMETERS

Conductor FGD400 1RCVMV-R
No. of Core X Cross Section No./ Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Diameter Under Screen Diameter Over Inner Sheath Armour Wire Diameter Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm mm kg/km
4x1.5 7/0.53 0.7 1.8 9.7 12.1 13.9 17.7 640
4x2.5 7/0.67 0.7 1.8 10.7 13.1 14.9 18.7 730
4x4 7/0.85 0.7 1.8 12.0 14.4 16.2 20.0 870
4x6 7/1.04 0.7 1.8 13.4 15.8 18.3 22.1 1180
4x10 7/1.35 0.7 1.8 15.6 18.0 20.5 24.3 1490
4x16 7/1.70 0.7 1.8 18.1 20.5 23.7 27.5 2070
4x25 7/2.14 0.9 1.8 22.3 24.1 27.3 31.1 2790
4x35(S) 7/2.52 0.9 1.8 25.0 26.8 30.0 33.8 2940
4x50(S) 19/1.78 1.0 2.0 27.8 29.6 32.8 37.0 3500
4x70(S) 19/2.14 1.1 2.2 31.6 33.4 37.4 42.0 5000
4x95(S) 19/2.52 1.1 2.3 35.4 37.2 41.2 46.0 6300
4x120(S) 37/2.03 1.2 2.5 39.0 40.8 45.8 51.0 8200
4x150(S) 37/2.25 1.4 2.6 42.0 43.8 48.8 54.2 9600
4x185(S) 37/2.52 1.6 2.8 47.8 49.6 54.6 60.4 11500
4x240(S) 61/2.25 1.7 3.0 54.0 55.8 60.8 67.0 14400
4x300(S) 61/2.52 1.8 3.0 58.0 59.8 64.8 71.4 17200

Electrical Properties

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor crosssectional area Reference Method 1 (clipped direct) Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) In single-way ducts Laid direct in ground
one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c.
1 2 3 4 5 6 7 8 9
mm2 A A A A A A A A
1.5 27 23 29 25 - 23 - 28
2.5 36 31 39 33 - 30 - 36
4 49 42 52 44 - 40 - 48
6 62 53 66 56 - 50 - 60
10 85 73 90 78 - 65 - 80
16 110 94 115 99 115 94 140 115
25 146 124 152 131 145 125 180 150
35 180 154 188 162 175 150 215 180
50 219 187 228 197 210 175 255 215
70 279 238 291 251 260 215 315 265
95 338 289 354 304 310 260 380 315
120 392 335 410 353 355 300 430 360
150 451 386 472 406 400 335 480 405
185 515 441 539 463 455 380 540 460
240 607 520 636 546 520 440 630 530
300 698 599 732 628 590 495 700 590

Voltage Drop (Per Amp Per Meter)

Conductor cross- sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single-phase a.c. 3 or 4 cables,  3-phase a.c.
In ducts or in ground In ducts or in ground
1 2 3 4 5 6
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31.0 31.0 27.0 31.0 25.0
2.5 19.0 19.0 16.0 19.0 15.0
4 12.0 12.0 10.0 12.0 9.7
6 7.9 7.9 6.8 7.9 6.5
10 4.7 4.7 4.0 4.7 3.9
16 2.9 2.9 2.5 2.9 2.6
    r x z r x z
25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600
35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200
50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870
70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610
95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450
120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360
150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300
185 0.250 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250
240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210
300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190
