(3 Cores) 600/1000V XLPE Insulated, PVC Sheathed, Double steel tape armoured Power Cables

CU/XLPE/PVC/DSTA/PVC 600/1000V Class 2

600 1000V XLPE Insulated PVC Sheathed Double steel tape armoured Power Cables 3 Cores

Application:

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS: Basic design adapted to IEC 60502-1

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)** EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

VOLTAGE RATING

600/1000V

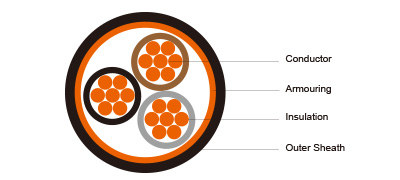

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, normal stranded or compact stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Filler, binder and inner covering: PP, PET, PVC

Armouring: Double steel tape

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5secs max.

Minimum bending radius: 10x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor
No. of Core X Cross Section Phases Neutral Nominal Diameter Overall Conducrtor Nominal Insulation Thickness Nominal Steel Tape Thickness Nominal Sheath Thickness Nominal Overall Diatemer Approx. No./ Weight
No./ Weight Nominal Diameter of Strands No./ Nominal Diameter of Strands Pha. Neu. Pha. Neu.
mm2 No/mm No/mm mm mm mm mm mm mm mm Kg/km
3x10+1x6 7/1.35 7/1.04 3.75 2.90 0.7 0.7 0.2 1.8 20.1 740
3x16+1x10 7/1.70 7/1.35 4.75 3.75 0.7 0.7 0.2 1.8 22.5 1,004
3x25+2x16 7/2.14 7/1.70 5.85 4.75 0.9 0.7 0.2 1.8 25.8 1,421
3x35+1x16 7/2.52 7/1.70 6.90 4.75 0.9 0.7 0.2 1.8 27.7 1,745
3x35+1x25 7/2.52 7/2.14 6.90 5.85 0.9 0.9 0.2 1.8 28.6 1,864
3x50+1x25 19/1.78 7/2.14 8.15 5.85 1.0 0.9 0.2 1.8 31.3 2,358
3x50+1x35 19/1.78 7/2.52 8.15 6.90 1.0 0.9 0.2 1.9 32.0 2.72
3x70+1x35 19/2.14 7/2.52 9.75 6.90 I.1 0.9 0.2 2.0 35.9 3166
3x70+1x50 19/2.14 19/1.78 9.75 8.15 I.1 1.0 0.2 2.0 36.8 3.341
3x95+1x50 19/2.52 19/1.78 11.4 8.15 I.1 1.0 0.5 2.1 41.4 4,611
3x120+1x70 37/2.03 19/2.14 12.8 9.75 1.2 I.1 0.5 2.3 45.6 5682
3x150+1x95 37/2.25 19/2.52 14.3 11.4 1.4 I.1 0.5 2.4 50.8 7,072
3x150+1x120 37/2.25 37/2.03 14.3 12.8 1.4 1.2 0.5 2.5 51.8 7,357
3x185+1x95 37/2.52 19/2.52 15.9 11.4 1.6 I.1 0.5 2.6 54.7 8,348
3x185+1x120 37/2.52 37/2.03 15.9 12.8 1.6 1.2 0.5 2.6 55.8 8638
3x240+1x120 61/2.25 37/2.03 18.2 12.8 1.7 1.2 0.5 2.7 61.0 10,660
3x240+1x150 61/2.25 37/2.25 18.2 14.3 1.7 1.4 0.5 2.8 62.2 11024
3x300+1x150 61/2.52 37/2.25 20.4 14.3 1.8 1.4 0.5 2.9 66.8 12,809
3x300+1x185 61/2.52 37/2.52 20.4 15.9 1.8 1.6 0.5 3.0 68.1 13,256

Notes:

1) *All conductors in accordance with lEC 60228. Compact shape (Com.) or non-compact depending on order.

2) Beside above list we can also provide others size depend on customer's requirement.

Electrical Properties

No. of Core X Cross Section Conductor Max.DC resistance of conductor @20°C
Phases Neutral Dia.Overall Conducrtor
No./Nominal Diameter of Strands No./Nominal Diameter of Strands Pha. Neu. Pha. Neu.
mm2 No/mm No/mm mm mm Ω/km Ω/km
3x10+1x6 7/1.35 7/1.04 3.75 2.90 1.83 3.08
3x16+1x10 7/1.70 7/1.35 4.75 3.75 1.15 1.83
3x25+2x16 7/2.14 7/1.70 5.85 4.75 0.727 1.15
3x35+1x16 7/2.52 7/1.70 6.90 4.75 0.524 1.15
3x35+1x25 7/2.52 7/2.14 6.90 5.85 0.524 0.727
3x50+1x25 19/1.78 7/2.14 8.15 5.85 0.387 0.727
3x50+1x35 19/1.78 7/2.52 8.15 6.90 0.387 0.524
3x70+1x35 19/2.14 7/2.52 9.75 6.90 0268 0.524
3x70+1x50 19/2.14 19/1.78 9.75 8.15 0268 0.387
3x95+1x50 19/2.52 19/1.78 11.4 8.15 0.193 0.387
3x120+1x70 37/2.03 19/2.14 12.8 9.75 0.153 0.268
3x150+1x95 37/2.25 19/2.52 14.3 11.4 0.124 0.193
3x150+1x120 37/2.25 37/2.03 14.3 12.8 0.124 0.153
3x185+1x95 37/2.52 19/2.52 15.9 11.4 0.0991 0.193
3x185+1x120 37/2.52 37/2.03 15.9 12.8 0.0991 0.153
3x240+1x120 61/2.25 37/2.03 18.2 12.8 0.0754 0.153
3x240+1x150 61/2.25 37/2.25 18.2 14.3 0.0754 0.124
3x300+1x150 61/2.52 37/2.25 20.4 14.3 0.0601 0.124
3x300+1x185 61/2.52 37/2.52 20.4 15.9 0.0601 0.0991

Electrical PROPERTIES

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor crosssectional area Reference Method 1 (clipped direct) Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) In single-way ducts Laid direct in ground
one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c. one 2-core cable single phase a.c. or d.c. one 3-core or 4-core cable 3-phase a.c.
1 2 3 4 5 6 7 8 9
mm2 A A A A A A A A
10 85 73 90 78 - 65 - 80
16 110 94 115 99 115 94 140 115
25 146 124 152 131 145 125 180 150
35 180 154 188 162 175 150 215 180
50 219 187 228 197 210 175 255 215
70 279 238 291 251 260 215 315 265
95 338 289 354 304 310 260 380 315
120 392 335 410 353 355 300 430 360
150 451 386 472 406 400 335 480 405
185 515 441 539 463 455 380 540 460
240 607 520 636 546 520 440 630 530
300 698 599 732 628 590 495 700 590

Voltage Drop (Per Amp Per Meter)

Conductor cross-sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single- phase a.c. 3 or 4 cables, 3-phase a.c.
In ducts or in ground In ducts or in ground
1 2 3 4 5 6
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
6 7.9 7.9 6.8 7.9 6.5
10 4.7 4.7 4.0 4.7 3.9
16 2.9 2.9 2.5 2.9 2.6
    r x z r x z
25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600
35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200
50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870
70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610
95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450
120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360
150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300
185 0.250 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250
240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210
300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190
400 0.120 0.130 0.140 0.190 0.115 0.120 0.165 0.190 0.180
