| Application: |
Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions. |

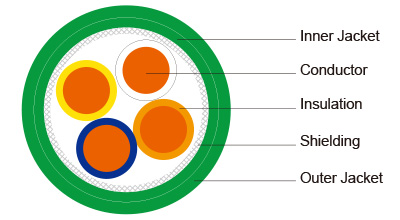

Construction:
| Type/Area of Application | Ray loaded areas | Fixed Installation, Outdoor |
| Cable Construction | 2x2x0.64 mm | 2x2x0.64 mm |
| Inner Conductor Diameter | Copper, bare (AWG 22/1) | Copper, bare (AWG 22/1) |
| Conductor Insulation | XLPE ray cross-linking | PE |
| Conductor Colors | white, yellow, blue, orange | white, yellow, blue, orange |
| Stranding Element | Star quad | Star quad |
| Shielding 1 | Polyester foil over stranded bundle | Polyester foil over stranded bundle |
| Shielding 2 | Polyester foil, aluminum-lined | Polyester foil, aluminum-lined |
| Total Shielding | Cu braid, tinned | Cu braid, tinned |
| Armoring | - | Steel wire armoured |
| Inner Jacket Material | TPR cross-linking | PVC |
| Outer Jacket Material | PUR | PE |
| Outer Diameter | 6.5 mm ± 0.2 mm | 9.3 mm ± 0.5 mm |
| Outer Jacket Color | Green | Black |
Electrical Data:
| Characteristic Impedance@1-100 MHz | 100 Ω ± 15 Ω | |
| Conductor Resistance | 62.0 Ohm/km max. | |
| Insulation Resistance | 0.50 GOhm x km min. | |
| Mutual Capacitance | 50.0 nF/km nom. | |
| Working Voltage | 300V | |
| Test Voltage | 1.5 KV | |
| Attenuation | 10 MHz | 5.2 dB/100m |
| 16 MHz | 6.9 dB/100m | |
| 62.5 MHz | 16.0 dB/100m | |
| 100 MHz | 19.5 dB/100m | |
Technical Data:
| Weight: | approximately 63.0 kg/km | approximately 124.0 kg/km |
| Min. Bending Radius (Laying) | 46.0 mm | 93.0 mm |
| Operating Temp.Range, min. | -40 °C | -40 °C |
| Operating Temp.Range, max. | +80 °C | +70 °C |
