RG59 B/U FR
| Application: |
The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments. |
| STANDARDS: |
Basic design to MIL-C-17 |
| VOLTAGE RATING: |
60V |
FIRE PERFORMANCE
|
Circuit Integrity |
IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
|
System circuit integrity |
DIN 4102-12, E30 depending on lay system |
|
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
|
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
|
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
|
Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
|
No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

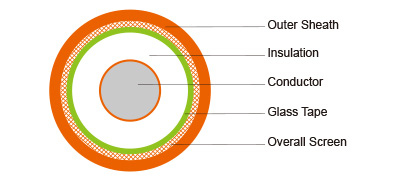

CABLE CONSTRUCTION
Conductors: Copper clad steel, solid according to IEC(EN) 60228 class 1.
Insulation: PE wrapped with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1 or
fluoropolymer(FEP) compound.
Binder: Glass tape
Overall Screen: Plain copper wire braid
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -5ºC - +60ºC
Minimum bending radius: 8 x Overall Diameter
Electrical Properties
|
Impedance |
75±5Ω |
|
Capacitance |
67 nF/km |
|
Velocity ratio(%) |
66 |
|
Insulation resistance |
>2000 Mohm.Km |
|
Shield coverage |
95% |
|
DC resistance |
|
|
Inner conductor |
158 Ω/km |
|
Outer conductor |
9.0 Ω/km |
Att enuation
|
Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
|
50 |
7.4 |
2.26 |
|
100 |
10.7 |
3.26 |
|
200 |
15.7 |
4.79 |
|
400 |
22.7 |
6.92 |
|
500 |
25.7 |
7.84 |
|
600 |
28.7 |
8.75 |
|
860 |
34.8 |
10.61 |
|
1000 |
38.0 |
11.59 |
Return Loss
|
Frequency(MHz) |
Return Loss (dB) |
|
30-300 MHz |
>31dB |
|
300-600 MHz |
>28dB |
|
600-900 MHz |
>24dB |
CONSTRUCTION PARAMETERS
|
Cable Code |
Conductor Diameter |
Nominal Insulation Diameter |
Nominal Screen No.x Diameter |
Nominal Overall Diameter |
Approx. Weight |
|
|
mm |
mm |
No. x mm |
mm |
kg/km |
|
RG59 B/U FR |
0.58 ± 0.03 |
3.70 ± 0.10 m |
120 x 0.15 |
6.20 ± 0.10 |
60.3 |
