| Applications : | These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication. |
| Standards : | IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004 |

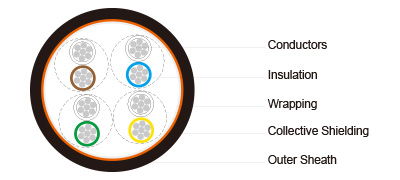

| Conductors : | Solid tinned copper, 0.5mm. |
| Insulation : | Halogen-free thermoplastic compound PE. |
| Twinning : | Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad. |
| Wrapping : | Polyester tape. |
| Collective Shielding : | The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire. |
| Sheath : | Halogen-free thermoplastic compound, type SHF1, coloured grey. |
Electrical Characteristics :
|
Nominal Conductor Diameter |
mm |
0.5 |
|
Maximum Resistant@20℃ |
Ω/km |
95 |
|
Nominal Inductance@1KHz |
MH/km |
0.61 |
|
Mutual Capacitance 1-pair cable |
nF/km |
90 |
|
Mutual Capacitance 2-pair cable |
nF/km |
80 |
|
Mutual Capacitance 4-pair and above cable |
nF/km |
70 |
|
Operating Voltage |
V |
60 |
Mechanical and Thermal Properties :
Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -10℃ ~ +60℃.
Dimensions and Weight :
|
Construction No. of elements×No. of cores in element×Core diameter (mm) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
1×2×0.5 |
0.2 |
1.2 |
5.0 |
30 |
|
2×2×0.5 |
0.2 |
1.2 |
5.5 |
35 |
|
4×2×0.5 |
0.2 |
1.2 |
7.0 |
55 |
|
10×2×0.5 |
0.2 |
1.5 |
8.5 |
90 |
|
20×2×0.5 |
0.2 |
1.5 |
11.0 |
148 |
|
30×2×0.5 |
0.2 |
1.5 |
13.5 |
210 |
|
50×2×0.5 |
0.2 |
1.5 |
16.0 |
320 |
