RE-2X(St)HSWAH 70°C / 300 V
| STANDARDS | Basic design to EN 50288-7 |
| APPLICATION | Instrument cable minimizes noise and signal interference, delivering clean signals in harsh environments and general manufacturing operations. |
FIRE PERFORMANCE
|
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
|
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
|
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
|
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
|
Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
|
No Toxic gases |
NES 02-713; NF C 20-454 |
|
Sunlight Resistance |
UL 1581 section 1200 |
|
Oil Resistance** |
ICEA S-73-532 |
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.
| VOLTAGE RATING | 300V |

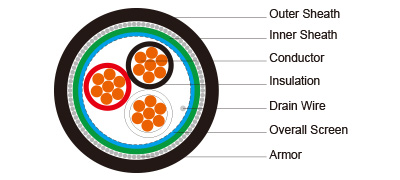

| CABLE CONSTRUCTION | |
| Conductor: | Annealed copper solid or plain copper stranded to IEC 60228 Class 2. |
| Insulation: | Extruded cross-linked XLPE compound, EN 50290. 2-29. |
| Pair: | Two conductors twisted to form a pair |
| Lay-up: | Pairs laid up in layers of optimum pitch |
| Separator: | Polyester tape |
| Overall Screen: | Aluminium/polyester tape with tinned copper drain wire, 0.5mm2 |
| Inner sheath: | HFFR compound, EN 50290-2-27 |
| Armour: | Galvenized round steel wire, EN 10257-1 |
| Outer Sheath: | Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. |
| COLOUR CODE | |
| Insulation: | Black / White / Red, continuously numbered on white core(1, 2..)for multitriples. |
| Outer Sheath: | Black or blue for intrinsically safe systems |
| Physical AND THERMAL PROPERTIES | |
| Temperature Range During Operation (Fixed State): | -30°C – +70°C |
| Temperature Range During Installation (Mobile State): | -5°C – +50°C |
| Minimum Bending Radius: | 7.5 X Overall Diameter |
CONSTRUCTION PARAMETERS
|
Cable Code |
RE-2X(St)HSWAH |
|||||||
|
No. of Triples x3xCross Section |
Nominal Insulation Thick- ness |
Nominal Inner Sheath Thick- ness |
Nominal Overall Diameter Over Inner Sheath |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick- ness |
Nominal Overall Diameter |
Approx. Weight |
|
|
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
|
|
RE-2X(St)HSWAH 1T0.5 |
1x3x0.50 |
0.35 |
0.8 |
5.4 |
0.9 |
1.3 |
9.8 |
200 |
|
RE-2X(St)HSWAH 1T0.75 |
1x3x0.75 |
0.38 |
0.9 |
6.1 |
0.9 |
1.3 |
10.5 |
220 |
|
RE-2X(St)HSWAH 1T1.0 |
1x3x1.0 |
0.4 |
0.9 |
6.6 |
0.9 |
1.3 |
11.0 |
244 |
|
RE-2X(St)HSWAH 1T1.3 |
1x3x1.3 |
0.45 |
0.9 |
7.2 |
0.9 |
1.3 |
11.6 |
268 |
|
RE-2X(St)HSWAH 1T1.5 |
1x3x1.5 |
0.45 |
0.9 |
7.5 |
0.9 |
1.3 |
11.9 |
293 |
Note : Other conductor sizes & core configurations are available upon request.
Electrical PROPERTIES
|
Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
|
|
Insulation thickness (nominal) |
mm |
0.35 |
0.38 |
0.4 |
0.45 |
0.45 |
|
|
Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
|
|
Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
|||||
|
Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
|||||
|
Capacitance unbalance(1 kHz) |
pF/500 m (Max.) |
500 |
|||||
|
Inductance |
mH/km(Max.) |
1 |
|||||
|
L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
|
|
Operating voltage Urms |
V |
300 |
|||||
|
Test Voltage |
Core to Core |
V |
1500 |
||||
|
Core to Screen |
V |
1500 |
|||||
