| APPLICATION | These NF M 87-202 EGSF instrumentation cables are used for safety extra-low use in petroleum and petrochemical units particularly for the transmission of a.c. or d.c. analogue signals. |
| Standards References: | NF M 87-202 UTE C 32-014 NF C 32-020 IEC 60332-1 IEC 60332-3-24 |

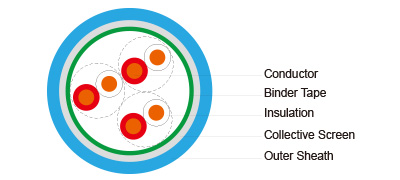

| Conductor: | Solid or Stranded copper conductor |
| Insulation: | PVC (70 mm maximum pair length) |
| Binder tape: | Polyster tape |
| Collective Screen: | Aluminium/polyester tape |
| Outer Sheath: | PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant) |
| Outer Sheath Colour: | Light-blue |
Core identification:
|
Colours |
Natural |
Red |
Blue |
Yellow |
|
1 pair |
X |
X |
||
|
1 triple |
X |
X |
X |
|
|
1 quad |
X |
X |
X |
X |
Characteristics
Voltage Rationg: 300/500V
Operating Temperature: -40°C/+90°C
Installation Temperature: MAX+50°C
Maximum Voltage: 250V
Voltage Test: 2000V
Maximum conductor d.c. Resistance:
|
Conductor Size |
Ohm/km at +20°C |
|
1/0.80mm(0.50 sqmm) |
37.50 |
|
7/0.40mm(0.88 sqmm) |
21.40 |
|
7/0.53mm(1.50 sqmm) |
12.50 |
Capacitance between cond. (nf/km):
0.5 sqmm ≤ 145
0.88 sqmm ≤ 160
1.50 sqmm ≤ 180
Type/codification:
|
1 Serie |
Number of pairs, triples or quads / 01 to 27 |
|
2 Serie |
Lay up in pair(IP) ,triple (IT) , quads (IQ) |
|
3 Serie |
Core section 05 (0.5mm2) , 09 (0.88 mm2) or 15(1.5mm2) |
|
4 Serie |
Overall screen(EG) or individual screen + overall screen(EI) |
|
5 Serie |
Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF) |
Dimensions and Weight:
|
NF M 87-202 |
Number of beams x cross section |
Cond. mm2 |
Outer Diameter(mm) |
Weight (kg/km) |
|
|
Min. |
Max. |
||||
|
03 IP 05 EGSF |
3X2X0.5 |
0.50 |
8.00 |
9.30 |
95 |
|
07 IP 05 EGSF |
7X2X0.5 |
0.50 |
10.50 |
12.10 |
160 |
|
12 IP 05 EGSF |
12X2X0.5 |
0.50 |
13.40 |
15.40 |
255 |
|
19 IP 05 EGSF |
19X2X0.5 |
0.50 |
16.60 |
19.00 |
380 |
|
27 IP 05 EGSF |
27X2X0.5 |
0.50 |
19.20 |
22.00 |
510 |
|
01 IQ 09 EGSF |
1X4X0.88 |
0.88 |
7.00 |
8.20 |
90 |
|
01 IP 09 EGSF |
1X2X0.88 |
0.88 |
6.10 |
7.20 |
65 |
|
03 IP 09 EGSF |
3X2X0.88 |
0.88 |
10.50 |
12.00 |
150 |
|
07 IP 09 EGSF |
7X2X0.88 |
0.88 |
14.00 |
16.00 |
280 |
|
12 IP 09 EGSF |
12X2X0.88 |
0.88 |
17.90 |
20.40 |
440 |
|
19 IP 09 EGSF |
19X2X0.88 |
0.88 |
22.00 |
25.30 |
665 |
|
27 IP 09 EGSF |
27X2X0.88 |
0.88 |
25.80 |
29.60 |
880 |
|
01 IP 15 EGSF |
1X2X1.50 |
1.50 |
6.80 |
7.80 |
83 |
|
07 IT 05 EGSF |
7X3X0.50 |
0.50 |
12.00 |
13.80 |
210 |
|
12 IT 05 EGSF |
12X3X0.50 |
0.50 |
15.50 |
17.10 |
375 |
|
01 IT 09 EGSF |
1X3X0.88 |
0.88 |
6.40 |
7.50 |
80 |
|
07 IT 09 EGSF |
7X3X0.88 |
0.88 |
16.40 |
18.10 |
410 |
|
12 IT 09 EGSF |
12X3X0.88 |
0.88 |
20.80 |
22.90 |
660 |
|
01 IT 15 EGSF |
1X3X1.50 |
1.50 |
7.20 |
8.20 |
100 |
