| Application | The cables are designed to give good protection to the core against inductive interference (RF=0.3).The cables are used for outdoor signaling equipment. |
| Standards | RENFE E.T. 03.365.051.6 |

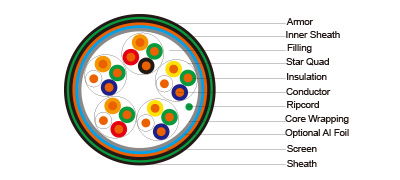

| Construction | |
| Conductors: | Solid annealed bare copper 0.9/1.4mm as per ASTM B-3/class 1 of IEC 60228 |
| Insulation: | Solid polyethylene as per ASTM D 1248/IEC 60708 |
| Cabling Element: | Four insulated conductors are twisted together to form a quad |
| Cable Core Assembly: | The cores are cabled together in concentric layers to form the cable core. Units are identified by colour coded binders |
| Core Wrapping: | One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap |
| Electrostatic Screen: | Corrugated copper tape of 0.12mm is applied longitudinally with overlap |
| Bedding: | PE or LSZH |
| Electrostatic Armour: | Two steel tapes of 0.5mm are helically applied with gap. The outer tape will cover the gap left by the inner one |
| Sheath: | PE, PVC or LSZH |
| Ripcord: | Nylon ripcord may be placed parallel to the cores to facilitate sheath removal |
Electrical Properties
|
Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
|
Conductor Size |
mm2 |
0.636 |
1.539 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
28 |
12.1 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
35000 |
5000 |
|
Reduction Factor Rk (50Hz) Induced Voltage Em 100V/Km |
|
0.3 |
0.3 |
|
Induced Voltage Em 500V/Km |
|
0.5 |
0.5 |
|
Maximum Resistance Unbalance |
% |
2.5 |
2.5 |
|
Maximum Mutual Capacitance @0.8Hz |
nF/km |
45 |
50 |
|
Maximum Capacitance Unbalance @1KHz pair-to-pair |
pF/500m |
250 |
250 |
|
Maximum Capacitance Unbalance @1KHz pair-to-ground |
pF/500m |
1200 |
1200 |
|
Maximum Average Attenuation @1KHz |
dB/km |
0.7 |
0.46 |
|
Maximum Average Attenuation @10KHz |
dB/km |
1.6 |
0.85 |
|
Maximum Average Attenuation @30KHz |
dB/km |
2.1 |
1.3 |
|
Dielectric Strength Conductor to Conductor 3secs |
V DC |
3000 |
3000 |
|
Conductor to Screen 3secs |
V DC |
3500 |
3500 |
|
Nominal Insulation Thickness |
mm |
0.45 |
0.65 |
|
Nominal Insulated Conductor Diameter |
mm |
1.8 |
2.7 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 15 x Overall Diameter
Colour Code
|
Layer |
Quad Position |
Colour of conductors |
|||
|
1 |
2 |
3 |
4 |
||
|
Centre and even layers |
First |
ORANGE |
GREEN |
RED |
WHITE |
|
Even |
YELLOW |
GREEN |
BLUE |
WHITE |
|
|
Odd |
YELLOW |
GREEN |
RED |
WHITE |
|
|
Last |
ORANGE |
GREEN |
BLUE |
WHITE |
|
|
Odd Layers |
First |
ORANGE |
GREEN |
RED |
BLACK |
|
Even |
YELLOW |
GREEN |
BLUE |
BLACK |
|
|
Odd |
YELLOW |
GREEN |
RED |
BLACK |
|
|
Last |
ORANGE |
GREEN |
BLUE |
BLACK |
|
Dimensions And Weight
|
Cable Code |
Number of Quads |
Nominal Bedding/Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
0.9mm Conductor, 1.8mm Insulated Wire |
||||
|
UE-TP365-2Y(CTS)2Y(DSTA)Y1Q09-RF03 |
1 |
1.5/1.6 |
18.3 |
1300 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y3Q09-RF03 |
3 |
1.5/1.6 |
21.7 |
1425 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y5Q09-RF03 |
5 |
1.5/1.6 |
25.2 |
1650 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y7Q09-RF03 |
7 |
1.5/1.6 |
26.7 |
1800 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y10Q09-RF03 |
10 |
1.5/1.6 |
29.2 |
2275 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y14Q09-RF03 |
14 |
1.6/1.8 |
32.3 |
2450 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y19Q09-RF03 |
19 |
1.7/1.8 |
36.0 |
2895 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y27Q09-RF03 |
27 |
1.7/1.8 |
40.5 |
3275 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y37Q09-RF03 |
37 |
1.8/2.0 |
45.6 |
3775 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y48Q09-RF03 |
48 |
1.9/2.0 |
49.8 |
4275 |
|
1.4mm Conductor, 2.7mm Insulated Wire |
||||
|
UE-TP365-2Y(CTS)2Y(DSTA)Y1Q14-RF03 |
1 |
1.5/1.6 |
20.2 |
1615 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y3Q14-RF03 |
3 |
1.5/1.6 |
25.7 |
1775 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y5Q14-RF03 |
5 |
1.6/1.8 |
30.8 |
2200 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y7Q14-RF03 |
7 |
1.6/1.8 |
32.8 |
2525 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y10Q14-RF03 |
10 |
1.7/1.8 |
36.5 |
2975 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y14Q14-RF03 |
14 |
1.7/1.8 |
40.5 |
3150 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y19Q14-RF03 |
19 |
1.8/2.0 |
45.6 |
3695 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y27Q14-RF03 |
27 |
2.0/2.2 |
52.3 |
3975 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y37Q14-RF03 |
37 |
2.1/2.2 |
59.1 |
4475 |
|
UE-TP365-2Y(CTS)2Y(DSTA)Y48Q14-RF03 |
48 |
2.2/2.3 |
66.0 |
4975 |
