| Application | The cables are designed to give good protection to the core against inductive interference. The cables are used for outdoor signaling equipment. |
| Standards | VDE 0816/DIN 57816 |

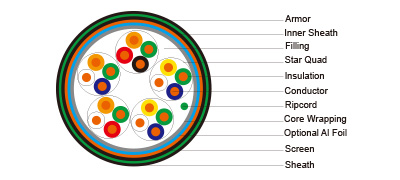

| Construction | |
| Conductors: | Solid annealed bare copper 0.9/1.4mm as per ASTM B-3/IEC 60228 Class 1 |
| Insulation: | Solid polyethylene as per ASTM D 1248/IEC 60708 |
| Cabling Element: | Four insulated conductors are twisted together to form a quad |
| Cable Core Assembly: | The cores are cabled together in concentric layers to form the cable core. Units are identified by colour coded binders |
| Core Wrapping: | One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap |
| Electrostatic Screen: | Copper tape or copper wire braid with wire diameter of 0.12mm |
| Bedding: | PE or LSZH |
| Electrostatic Armour: | Two steel tapes of 0.5mm or 0.8mm are helically applied with gap. The outer tape will cover the gap left by the inner one |
| Sheath: | PE/PVC or LSZH |
| Ripcord: | Nylon ripcord may be placed parallel to the cores to facilitate sheath removal |
Electrical Properties
|
Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
|
Conductor Size |
mm2 |
0.636 |
1.539 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
28 |
12.1 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
35000 |
5000 |
|
Maximum Resistance Unbalance |
% |
2.5 |
2.5 |
|
Maximum Mutual Capacitance @0.8KHz |
nF/km |
45 |
50 |
|
Maximum Capacitance Unbalance @1KHz pair-to-pair |
pF/500m |
250 |
250 |
|
Maximum Capacitance Unbalance @1KHz pair-to-ground |
pF/500m |
1200 |
1200 |
|
Maximum Average Attenuation @1KHz |
dB/km |
0.7 |
0.46 |
|
Maximum Average Attenuation @10KHz |
dB/km |
1.6 |
0.85 |
|
Maximum Average Attenuation @30KHz |
dB/km |
2.1 |
1.3 |
|
Dielectric Strength Conductor to Conductor 3secs |
V DC |
3000 |
3000 |
|
Conductor to Screen 3secs |
V DC |
3500 |
3500 |
|
Nominal Insulation Thickness |
mm |
0.45 |
0.65 |
|
Nominal Insulated Conductor Diameter |
mm |
1.8 |
2.7 |
Reduction Factor
|
Type group |
Frequency Hz |
Cable reduction factor(planning values)at field strength |
||
|
70V/km |
100V/km |
350V/km |
||
|
1,5 |
1623 |
0.70 |
0.60 |
0.92 |
|
2,3,6,7 |
0.55 |
0.45 |
0.80 |
|
|
4,8 |
0.30 |
0.25 |
0.70 |
|
|
1,5 |
50 |
0.45 |
0.38 |
0.52 |
|
2,6 |
0.21 |
0.17 |
0.29 |
|
|
3,7 |
0.42 |
0.37 |
0.30 |
|
|
4,8 |
0.17 |
0.14 |
0.12 |
|
Reference length is 300m. Conversion factor for different lengths L (at least 200m): L/300
Type Codes
|
AJ- |
-Outdoor cable with protection against inductive influences |
|
2Y |
- Solid PE |
|
Y |
- PVC |
|
H |
- LSZH |
|
(St) |
- Static shield of plastic-backed aluminum Tape for indoor cables |
|
D |
- Shield of copper wire whipping. |
|
S |
- Railway signaling cable |
|
Lg |
- Stranded in layers |
|
(…Cu) |
- Total cross section of copper shield in mm sq |
|
(fK) |
- Longitdinally applied copper tape, supplement to (St) |
|
2B… |
- two layers of steel tape, thickness of steel tape in mm |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 15 x Overall Diameter
Colour Code
Coloured rings on the insulation
The tracer quad in each layer has a red helix
Dimensions And Weight
VDE CODE:
Copper tape screen & steel tape thickness of 0.5/0.8mm
AJ-2Y(St)YbY…x4x0.9/1.4 S Lg (fK) (2B 0.5) AJ-2Y(St)YbY…x4x0.9/1.4 S Lg (fK) (2B 0.8)
Copper wire screen (wire diameter of 1.2mm) & steel tape thickness of 0.8mm
AJ-2YDYbY…x4x0.9/1.4 S Lg (…Cu/2B 0.5) AJ-2YDYbY…x4x0.9/1.4 S Lg (…Cu/2B 0.8)
|
Cable Code |
Number of Quads |
Nominal Bedding/ Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
Type 1: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Tape Screened, RF 0.6 Steel tape thickness 0.5mm |
||||
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-3Q09 |
3 |
1.7/1.8 |
22.0 |
810 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-5Q09 |
5 |
1.7/1.8 |
25.5 |
1035 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-7Q09 |
7 |
1.7/1.8 |
26.5 |
1150 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-10Q09 |
10 |
1.8/2.0 |
32.5 |
1550 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK)(2B0.5)-14Q09 |
14 |
1.8/2.0 |
35.5 |
1870 |
|
Type 2: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Wire Screened, RF 0.45 Steel tape thickness 0.5mm |
||||
|
UE-TP816AJ-2YDYbY-S Lg (23/2B0.5)-7Q09 |
7 |
1.7/1.8 |
28.5 |
1410 |
|
UE-TP816AJ-2YDYbY-S Lg (25/2B0.5)-10Q09 |
10 |
1.8/2.0 |
33.0 |
1745 |
|
UE-TP816AJ-2YDYbY-S Lg (25/2B0.5)-14Q09 |
14 |
1.8/2.0 |
36.6 |
2060 |
|
Type 3: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Tape Screened, RF 0.45 Steel tape thickness 0.8mm |
||||
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-20Q09 |
20 |
1.8/2.0 |
40.0 |
2610 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-30Q09 |
30 |
2.0/2.2 |
46.5 |
3425 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-40Q09 |
40 |
2.0/2.2 |
50.5 |
4015 |
|
UE-Type 4: 0.9mm Conductor, 1.8mm Insulated Wire, Copper Wire Screened, RF 0.25 Steel tape thickness 0.8mm |
||||
|
UE-TP816AJ-2YDYbY-S Lg (29/2B0.8)-20Q09 |
20 |
1.8/2.0 |
40.5 |
2840 |
|
UE-TP816AJ-2YDYbY-S Lg (33/2B0.8)-30Q09 |
30 |
2.0/2.2 |
47.5 |
3655 |
|
UE-TP816AJ-2YDYbY-S Lg (33/2B0.8)-40Q09 |
40 |
2.0/2.2 |
51.5 |
4230 |
|
Type 5: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Tape Screened, RF 0.6 Steel tape thickness 0.5mm |
||||
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-3Q14 |
3 |
1.7/1.8 |
26.5 |
1140 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-5Q14 |
5 |
1.7/1.8 |
29.5 |
1430 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-7Q14 |
7 |
1.8/2.0 |
33.5 |
1790 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-10Q14 |
10 |
1.8/2.0 |
39.0 |
2330 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.5)-14Q14 |
14 |
1.8/2.0 |
42.5 |
2805 |
|
Type 6: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Wire Screened, RF 0.45 Steel tape thickness 0.5mm |
||||
|
UE-TP816AJ-2YDYbY-S Lg (25/2B0.5)-25Q14 |
25 |
1.8/2.0 |
35.0 |
2050 |
|
Type 7: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Tape Screened, RF 0.45 Steel tape thickness 0.8mm |
||||
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-20Q14 |
20 |
2.0/2.2 |
49.0 |
4085 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-30Q14 |
30 |
2.4/2.6 |
58.5 |
5585 |
|
UE-TP816AJ-2Y(St)YbY-S Lg (fK) (2B0.8)-40Q14 |
40 |
2.4/2.6 |
64.0 |
6720 |
|
Type 8: 1.4mm Conductor, 2.7mm Insulated Wire, Copper Wire Screened, RF 0.25 Steel tape thickness 0.8mm |
||||
|
UE-TP816AJ-2YDYbY-S Lg (29/2B0.5)-10Q14 |
10 |
1.8/2.0 |
41.0 |
2950 |
|
UE-TP816AJ-2YDYbY-S Lg (33/2B0.5)-14Q14 |
14 |
2.0/2.2 |
46.0 |
3615 |
|
UE-TP816AJ-2YDYbY-S Lg (33/2B0.5)-20Q14 |
20 |
2.0/2.2 |
50.0 |
4310 |
|
UE-TP816AJ-2YDYbY-S Lg (38/2B0.5)-30Q14 |
30 |
2.4/2.6 |
59.5 |
5850 |
|
UE-TP816AJ-2YDYbY-S Lg (43/2B0.5)-40Q14 |
40 |
2.4/2.6 |
65.0 |
7005 |
