J-2Y(St)Y…2X0.6 StIII Bd J-2Y(St)H…2X0.6 StIII Bd
| Application | The installation cables are used for telephone, signaling and data transmission for permanent surface or concealed installation in dry and damp rooms and for outdoor applications. |
| Standards | DIN VDE 0816/0815 |
| Construction | |
| Conductors | Solid annealed bare copper sized 0.6mm as per VDE 0295/IEC 60228 class 1 |
| Insulation | Solid polyethylene 2YI2 type as per VDE 0207-2 |
| Cabling Element | Star Quads |

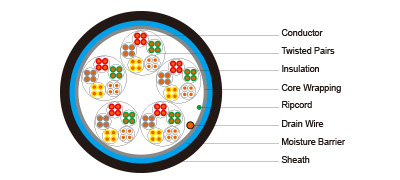

| Cable Core Assembly | Group of four wires is stranded into a star quad, the quads are assembled into units and the units form the core |
| Core Wrapping | One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to sheathing |
| Screen | Laminated aluminium foil is fully enclosing the core with an overlap |
| Sheath | PVC YM1 type to DIN VDE 0207 part 5. LSZH sheath can be offered as option |
| Ripcord | Nylon ripcord may be placed parallel to the cores to facilitate sheath removal |
| Drain Wire (optional) | Tinned drain wire may be applied longitudinally to provide continuity of the screen |
Type Codes
|
J- |
Installation Cable |
|
2Y |
Polyethylene (PE) |
|
H |
Low Smoke & Zero Halogen |
|
(St) |
Static Shield of aluminium tape |
|
StIII |
Star quad in local cables |
|
Bd |
Unit-type stranding |
Electrical Properties
|
Nominal Conductor Diameter |
mm |
0.6 |
0.6 |
|
VDE CODE |
|
J-2Y(St)Y |
J-2Y(St)H |
|
Conductor Size |
mm2 |
0.283 |
0.283 |
|
Maximum Conductor Resistance @20°C |
Ω/km |
63 |
63 |
|
Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
|
Minimum Insulation Resistance @500V DC |
MΩ.km |
5000 |
5000 |
|
Mutual Capacitance @0.8KHz (100% of all values) max |
nF/km |
52 |
52 |
|
(95% of all values) max |
|
50 |
50 |
|
Capacitance Unbalance @0.8KHz |
pF/300m |
|
|
|
K1 100% of values max |
pF/300m |
800 |
800 |
|
98% of values max |
pF/300m |
400 |
400 |
|
K9-12 100% of values max |
pF/300m |
300 |
300 |
|
98% of values max |
pF/300m |
100 |
100 |
|
Maximum Loop Resistance @20°C |
Ω/km |
130 |
130 |
|
Impedance (4 -16 Mhz) |
Ω |
100+/-15% |
100+/-15% |
|
Maximum Average Attenuation @1MHz |
dB/km |
35 |
35 |
|
Maximum Average Attenuation @4MHz |
dB/km |
55 |
55 |
|
Maximum Average Attenuation @10MHz |
dB/km |
73 |
73 |
|
Maximum Average Attenuation @16MHz |
dB/km |
86 |
86 |
|
Maximum Average Attenuation @20MHz |
dB/km |
95 |
95 |
|
Maximum Working Voltage Peak Value |
V |
225 |
225 |
|
Insulation Material |
|
PE |
PE |
|
Sheath Material |
|
PVC |
LSZH |
|
Nominal Insulation Thickness |
mm |
0.25 |
0.25 |
|
Nominal Insulated Conductor Diameter |
mm |
1.1 |
1.1 |
Mechanical and Thermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter
Colour Code
Quads
The single core is identified by black ring markings:
|
Side Circuit 1 |
a-wire |
without marking |
|
|
b-wire |
1 mark distance 17mm |
|
Side Circuit 2 |
a-wire |
2 marks distance 34mm |
|
|
b-wire |
2 marks distance 17mm |
Subunits
Basic colours for the wire insulation of the 5 star quads of a basic unit:
|
Quad 1 Red |
Quad 2 Green |
|
|
Quad 3 Grey |
Quad 4 Yellow |
Quad 5 White |
The tracer units are coded with a red helix, all other units by a white binder
Dimensions And Weight
VDE CODE: J-2Y(St)Y…x2x 0.6 StIII Bd
|
Cable Code |
Number of Pairs |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
0.6mm Conductor, 1.1mm Insulated Wire |
|||||
|
TP815J-2Y(St)Y-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
|
TP815J-2Y(St)Y-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
|
TP815J-2Y(St)Y-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
|
TP815J-2Y(St)Y-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
|
TP815J-2Y(St)Y-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
|
TP815J-2Y(St)Y-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
|
TP815J-2Y(St)Y-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
|
TP815J-2Y(St)Y-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
|
TP815J-2Y(St)Y-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
|
TP815J-2Y(St)Y-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
|
TP815J-2Y(St)Y-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
VDE CODE: J-2Y(St)H…x2x 0.6 StIII Bd
|
Cable Code |
Number of Pairs |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
0.6mm Conductor, 1.1mm Insulated Wire |
|||||
|
TP815J-2Y(St)H-StIII-Bd-2P06 |
2 |
0.25 |
1.0 |
5.7 |
46 |
|
TP815J-2Y(St)H-StIII-Bd-4P06 |
4 |
0.25 |
1.0 |
6.9 |
66 |
|
TP815J-2Y(St)H-StIII-Bd-6P06 |
6 |
0.25 |
1.0 |
7.8 |
85 |
|
TP815J-2Y(St)H-StIII-Bd-10P06 |
10 |
0.25 |
1.0 |
9.3 |
122 |
|
TP815J-2Y(St)H-StIII-Bd-20P06 |
20 |
0.25 |
1.0 |
12.1 |
204 |
|
TP815J-2Y(St)H-StIII-Bd-30P06 |
30 |
0.25 |
1.2 |
14.6 |
298 |
|
TP815J-2Y(St)H-StIII-Bd-40P06 |
40 |
0.25 |
1.2 |
16.3 |
375 |
|
TP815J-2Y(St)H-StIII-Bd-50P06 |
50 |
0.25 |
1.4 |
17.9 |
451 |
|
TP815J-2Y(St)H-StIII-Bd-60P06 |
60 |
0.25 |
1.4 |
18.5 |
520 |
|
TP815J-2Y(St)H-StIII-Bd-80P06 |
80 |
0.25 |
1.4 |
19.7 |
660 |
|
TP815J-2Y(St)H-StIII-Bd-100P06 |
100 |
0.25 |
1.6 |
20.9 |
802 |
