| Application | These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free. |
| Standards | IEC 60092-350/351/354/359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1/2 IEC 61034 |

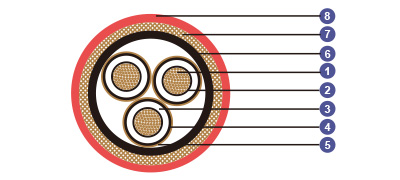

| Construction | |
| Conductors | Class 2 stranded copper conductor. |
| Conductor Screen | Semi-conducting layer (tape/compound). |
| Insulation | XLPE. |
| Insulation Screen | Semi-conducting layer (tape/compound). |
| Metallic Screen | Copper tape |
| Inner Covering | Halogen free compound. |
| Armour | Copper wire braid. |
| Outer Sheath | LSOH (SHF1). SHF2 can be offered upon request. |
| Core Identification | Coloured tape shall be inserted under metallic screen. 3core: Red, Yellow, Blue. |
| Mechanical and Thermal Properties | Bending Radius for Fixed Installations: 12×OD (single core); 9×OD (three core) Temperature Range: -30℃ ～ +80℃ |
Dimensions and Weight
3.6/6kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
3.6/6KV-1C10 |
1×10 |
2.5 |
1.5 |
19.6 |
580 |
|
3.6/6KV--1C16 |
1×16 |
2.5 |
1.5 |
20.5 |
670 |
|
3.6/6KV-1C25 |
1×25 |
2.5 |
1.5 |
21.8 |
800 |
|
3.6/6KV-1C35 |
1×35 |
2.5 |
1.6 |
23.2 |
940 |
|
3.6/6KV-1C50 |
1×50 |
2.5 |
1.6 |
24.5 |
1100 |
|
3.6/6KV-1C70 |
1×70 |
2.5 |
1.7 |
26.5 |
1380 |
|
3.6/6KV-1C95 |
1×95 |
2.5 |
1.8 |
28.6 |
1700 |
|
3.6/6KV-1C120 |
1×120 |
2.5 |
1.9 |
30.4 |
2000 |
|
3.6/6KV-1C150 |
1×150 |
2.5 |
1.9 |
32.0 |
2320 |
|
3.6/6KV-1C185 |
1×185 |
2.5 |
2.0 |
34.4 |
2770 |
|
3.6/6KV-1C240 |
1×240 |
2.6 |
2.1 |
38.0 |
3530 |
|
3.6/6KV-1C300 |
1×300 |
2.8 |
2.3 |
41.2 |
4270 |
|
3.6/6KV-1C400 |
1×400 |
3.0 |
2.4 |
45.6 |
5410 |
|
3.6/6KV-1C500 |
1×500 |
3.2 |
2.5 |
48.9 |
6390 |
|
3.6/6KV-1C630 |
1×630 |
3.2 |
2.7 |
53.5 |
8030 |
|
3.6/6KV-3C10 |
3×10 |
2.5 |
2.0 |
35.4 |
1620 |
|
3.6/6KV-3C16 |
3×16 |
2.5 |
2.2 |
38.4 |
2030 |
|
3.6/6KV-3C25 |
3×25 |
2.5 |
2.3 |
41.4 |
2470 |
|
3.6/6KV-3C35 |
3×35 |
2.5 |
2.4 |
44.2 |
2930 |
|
3.6/6KV-3C50 |
3×50 |
2.5 |
2.5 |
47.6 |
3510 |
|
3.6/6KV-3C70 |
3×70 |
2.5 |
2.7 |
51.9 |
4390 |
|
3.6/6KV-3C95 |
3×95 |
2.5 |
2.8 |
56.6 |
5470 |
|
3.6/6KV-3C120 |
3×120 |
2.5 |
3.0 |
60.4 |
6450 |
|
3.6/6KV-3C150 |
3×150 |
2.5 |
3.1 |
64.1 |
7490 |
|
3.6/6KV-3C185 |
3×185 |
2.5 |
3.3 |
68.3 |
8850 |
|
3.6/6KV-3C240 |
3×240 |
2.6 |
3.5 |
75.4 |
11080 |
6/10kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
6/10KV-1C16 |
1×16 |
3.4 |
1.6 |
22.5 |
750 |
|
6/10KV-1C25 |
1×25 |
3.4 |
1.6 |
23.8 |
890 |
|
6/10KV-1C35 |
1×35 |
3.4 |
1.7 |
25.2 |
1040 |
|
6/10KV-1C50 |
1×50 |
3.4 |
1.7 |
26.5 |
1200 |
|
6/10KV-1C70 |
1×70 |
3.4 |
1.8 |
28.5 |
1480 |
|
6/10KV-1C95 |
1×95 |
3.4 |
1.9 |
30.6 |
1810 |
|
6/10KV-1C120 |
1×120 |
3.4 |
1.9 |
32.2 |
2100 |
|
6/10KV-1C150 |
1×150 |
3.4 |
2.0 |
34.4 |
2470 |
|
6/10KV-1C185 |
1×185 |
3.4 |
2.1 |
36.9 |
2980 |
|
6/10KV-1C240 |
1×240 |
3.4 |
2.2 |
39.8 |
3650 |
|
6/10KV-1C300 |
1×300 |
3.4 |
2.3 |
42.4 |
4340 |
|
6/10KV-1C400 |
1×400 |
3.4 |
2.5 |
46.6 |
5480 |
|
6/10KV-1C500 |
1×500 |
3.4 |
2.6 |
49.5 |
6430 |
|
6/10KV-1C630 |
1×630 |
3.4 |
2.7 |
53.9 |
8040 |
|
6/10KV-3C16 |
3×16 |
3.4 |
2.3 |
42.5 |
2330 |
|
6/10KV-3C25 |
3×25 |
3.4 |
2.4 |
45.9 |
2840 |
|
6/10KV-3C35 |
3×35 |
3.4 |
2.5 |
48.7 |
3310 |
|
6/10KV-3C50 |
3×50 |
3.4 |
2.7 |
51.9 |
3890 |
|
6/10KV-3C70 |
3×70 |
3.4 |
2.8 |
56.4 |
4820 |
|
6/10KV-3C95 |
3×95 |
3.4 |
3.0 |
60.8 |
5900 |
|
6/10KV-3C120 |
3×120 |
3.4 |
3.1 |
64.5 |
6880 |
|
6/10KV-3C150 |
3×150 |
3.4 |
3.3 |
68.3 |
7960 |
|
6/10KV-3C185 |
3×185 |
3.4 |
3.4 |
72.8 |
9390 |
|
6/10KV-3C240 |
3×240 |
3.4 |
3.7 |
79.2 |
11570 |
8.7/15kV
|
Part No. |
Construction No. of cores×Cross section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
8.7/15KV-1C25 |
1×25 |
4.5 |
1.7 |
26.2 |
1020 |
|
8.7/15KV-1C35 |
1×35 |
4.5 |
1.8 |
27.6 |
1170 |
|
8.7/15KV-1C50 |
1×50 |
4.5 |
1.8 |
28.9 |
1340 |
|
8.7/15KV-1C70 |
1×70 |
4.5 |
1.9 |
30.9 |
1630 |
|
8.7/15KV-1C95 |
1×95 |
4.5 |
2.0 |
33.4 |
2000 |
|
8.7/15KV-1C120 |
1×120 |
4.5 |
2.0 |
35.0 |
2300 |
|
8.7/15KV-1C150 |
1×150 |
4.5 |
2.1 |
37.3 |
2730 |
|
8.7/15KV-1C185 |
1×185 |
4.5 |
2.2 |
39.3 |
3180 |
|
8.7/15KV-1C240 |
1×240 |
4.5 |
2.3 |
42.2 |
3860 |
|
8.7/15KV-1C300 |
1×300 |
4.5 |
2.4 |
45.2 |
4600 |
|
8.7/15KV-1C400 |
1×400 |
4.5 |
2.5 |
48.8 |
5690 |
|
8.7/15KV-1C500 |
1×500 |
4.5 |
2.7 |
51.9 |
6680 |
|
8.7/15KV-1C630 |
1×630 |
4.5 |
2.8 |
56.7 |
8360 |
|
8.7/15KV-3C25 |
3×25 |
4.5 |
2.6 |
51.0 |
3280 |
|
8.7/15KV-3C35 |
3×35 |
4.5 |
2.7 |
53.8 |
3770 |
|
8.7/15KV-3C50 |
3×50 |
4.5 |
2.9 |
57.4 |
4430 |
|
8.7/15KV-3C70 |
3×70 |
4.5 |
3.0 |
61.5 |
5340 |
|
8.7/15KV-3C95 |
3×95 |
4.5 |
3.2 |
66.0 |
6460 |
|
8.7/15KV-3C120 |
3×120 |
4.5 |
3.3 |
69.6 |
7460 |
|
8.7/15KV-3C150 |
3×150 |
4.5 |
3.5 |
73.9 |
8640 |
|
8.7/15KV-3C185 |
3×185 |
4.5 |
3.6 |
78.0 |
10040 |
|
8.7/15KV-3C240 |
3×240 |
4.5 |
3.9 |
84.4 |
12270 |
