150/250V XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Instrumentation & Control Cables (Multicore)

150250V XLPE Insulated LSOH SHF1 Sheathed Flame Retardant Instrumentation Control Cables Multicore

Application These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards IEC 60092-350/351/376/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

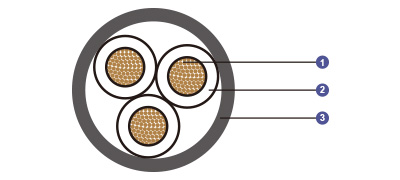

Construction
Conductors Class 2 stranded copper conductor.
Insulation XLPE.
Outer Sheath LSOH (SHF1). SHF2 can be offered upon request.
Core Identification White with printed number.
Mechanical and Thermal Properties Bending Radius for Fixed Installations: 4×OD
Temperature Range: -30℃ ~ +80℃

Dimensions and Weight

Part No.

Construction

No. of cores×Cross

section(mm²)

Nominal Insulation

Thickness mm

Nominal Sheath Thickness mm

Nominal Overall

Diameter mm

Nominal Weight kg/km

M092-RE-2XH-2C0.75

2×0.75

0.5

1.1

6.2

50

M092-RE-2XH-3C0.75

3×0.75

0.5

1.1

6.5

60

M092-RE-2XH-5C0.75

5×0.75

0.5

1.2

7.7

80

M092-RE-2XH-7C0.75

7×0.75

0.5

1.2

8.3

100

M092-RE-2XH-12C0.75

12×0.75

0.5

1.3

10.9

170

M092-RE-2XH-19C0.75

19×0.75

0.5

1.6

13.0

250

M092-RE-2XH-27C0.75

27×0.75

0.5

1.7

15.6

350

M092-RE-2XH-37C0.75

37×0.75

0.5

1.9

17.6

470

M092-RE-2XH-2C1.0

2×1.0

0.5

1.1

6.6

60

M092-RE-2XH-3C1.0

3×1.0

0.5

1.2

7.0

70

M092-RE-2XH-5C1.0

5×1.0

0.5

1.2

8.2

100

M092-RE-2XH-7C1.0

7×1.0

0.5

1.3

9.1

130

M092-RE-2XH-12C1.0

12×1.0

0.5

1.4

11.7

210

M092-RE-2XH-19C1.0

19×1.0

0.5

1.7

14.0

310

M092-RE-2XH-27C1.0

27×1.0

0.5

1.9

16.8

430

M092-RE-2XH-37C1.0

37×1.0

0.5

2.0

19.0

580
