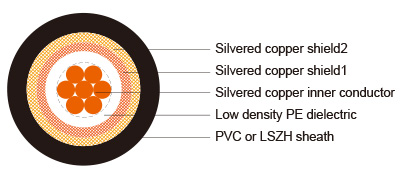

Construction
|
Inner conductor |
Silver plated copper |
7 x 0.75 mm |
|
Dielectric |
Low density PE |
Φ7.25 ± 0.18 mm |
|
Outer conductor(shield 1) |
Silver plated copper |
144 x 0.16 mm |
|
Shield coverage |
|
96% |
|
Outer conductor(shield 2) |
Silver plated copper |
168 x 0.16 mm |
|
Shield coverage |
|
98% |
|
Sheath |
PVC or LSZH |
Φ10.8 ± 0.18 mm |
Electrical & Mechanical Characteristics
|
Impedance |
53±3 Ohm0 |
|
|
Nominal capacitance |
100pF/m |
|
|
Velocity of propagation |
66% |
|
|
Insulation resistance |
>2000 Mohm.Km |
|
|
Inner conductor resistance |
6.0 Ohm/Km |
|
|
Outer conductor resistance |
3.1 Ohm/Km |
|
|
Operating temperature range |
-30 °C - +70 °C |
|
|
Test/Operatig Voltage(max) |
100Kg/Km |
|
|
Copper Weight |
117.7Kg/Km |
|
|
Cable weight (approx.) |
205.3Kg/Km |
|
|
Screening effectiveness |
100-900 MHz |
>70dB |
Attenuation
|
Frequency (MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
|
50 |
4.7 |
1.43 |
|
100 |
7.1 |
2.16 |
|
200 |
10.4 |
3.17 |
|
400 |
15.2 |
4.63 |
|
500 |
17.4 |
5.30 |
|
600 |
19.2 |
5.85 |
|
860 |
23.9 |
7.29 |
|
1000 |
26.2 |
7.99 |
Return Loss
|
30-300 MHz |
>30dB |
|
300-600 MHz |
>29dB |
|
600-900 MHz |
>27dB |
