| Applications | These cables are designed for general use where baregrounding conductors are not required ordesired. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

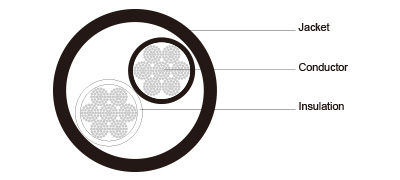

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Sheath | Reinforced heavy-duty/extra-heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.) |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
|
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
2×8 |
166 |
0.06 |
1.5 |
0.110 |
2.8 |
0.83 |
21.1 |
391 |
581 |
72 |
|
2×6 |
259 |
0.06 |
1.5 |
0.125 |
3.2 |
0.94 |
23.9 |
571 |
849 |
95 |
|
2×4 |
412 |
0.06 |
1.5 |
0.140 |
3.6 |
1.07 |
27.3 |
793 |
1180 |
127 |
|
2×2 |
259 |
0.06 |
1.5 |
0.155 |
3.9 |
1.26 |
32.1 |
1142 |
1699 |
167 |
|
2×1/0 |
414 |
0.08 |
2.0 |
0.170 |
4.3 |
1.51 |
38.3 |
1693 |
2520 |
217 |
|
2×2/0 |
522 |
0.08 |
2.0 |
0.170 |
4.3 |
1.65 |
41.9 |
1908 |
2840 |
250 |
|
2×3/0 |
658 |
0.08 |
2.0 |
0.190 |
4.8 |
1.77 |
45.0 |
2600 |
3870 |
286 |
|
2×4/0 |
829 |
0.08 |
2.0 |
0.190 |
4.8 |
1.92 |
48.8 |
2675 |
3980 |
328 |
|
2×250 |
973 |
0.095 |
2.4 |
0.205 |
5.2 |
2.10 |
53.3 |
3434 |
5110 |
363 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
