| Applications | These heavy duty cables are designed for heavy mobile equipment such as drag lines, shovels, dredges, drills and for power feeders. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B 172 ASTM B 33 CAN/CSA C22.2 No. 96 |

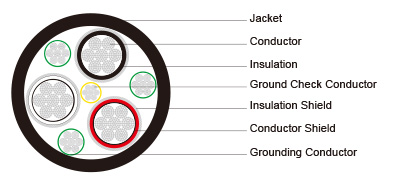

| Construction | |
| Conductors | Stranded annealed tinned copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Ethylene Propylene Rubber (EPR). |
| Insulation Shield | Tinned copper/textile braid. |
| Ground Check Conductor | Tinned copper with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Thermoplastic Polyurethane (TPU) Jacket, black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 6×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×6 |
133 |
10 |
8 |
0.110 |
2.8 |
0.185 |
4.7 |
1.56 |
39.6 |
1342 |
1997 |
93 |
|
3×4 |
259 |
8 |
8 |
0.110 |
2.8 |
0.185 |
4.7 |
1.68 |
42.7 |
1629 |
2424 |
122 |
|
3×2 |
259 |
6 |
8 |
0.110 |
2.8 |
0.205 |
5.2 |
1.87 |
47.5 |
2228 |
3315 |
159 |
|
3×1 |
259 |
5 |
8 |
0.110 |
2.8 |
0.205 |
5.2 |
1.95 |
49.5 |
2447 |
3641 |
184 |
|
3×1/0 |
266 |
4 |
8 |
0.110 |
2.8 |
0.220 |
5.6 |
2.08 |
52.8 |
2760 |
4106 |
211 |
|
3×2/0 |
323 |
3 |
8 |
0.110 |
2.8 |
0.220 |
5.6 |
2.20 |
55.9 |
3238 |
4818 |
243 |
|
3×3/0 |
418 |
2 |
8 |
0.110 |
2.8 |
0.235 |
6.0 |
2.36 |
59.9 |
3792 |
5642 |
279 |
|
3×4/0 |
532 |
1 |
8 |
0.110 |
2.8 |
0.235 |
6.0 |
2.50 |
63.5 |
4548 |
6767 |
321 |
|
3×250 |
627 |
1/0 |
6 |
0.120 |
3.0 |
0.250 |
6.4 |
2.69 |
68.3 |
5427 |
8074 |
355 |
|
3×350 |
888 |
2/0 |
6 |
0.120 |
3.0 |
0.265 |
6.7 |
2.95 |
74.9 |
7070 |
10519 |
435 |
|
3×500 |
1221 |
4/0 |
6 |
0.120 |
3.0 |
0.280 |
7.1 |
3.31 |
84.1 |
9407 |
13996 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
