| Applications | These cables are designed for connections between units of mine distribution systems, suitable forinstalled in duct, conduit or open air and for direct burial in wet and dry locations. |
| Standards | ICEA S-75-381/NEMA WC 58 ASTM B-8 CAN/CSA-C22.2 No.96 |

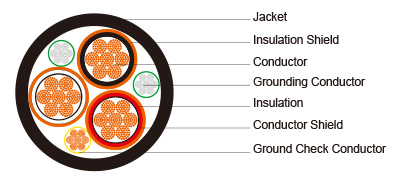

| Construction | |
| Conductors | Stranded annealed bare copper conductor. |
| Conductor Shield | Conducting layer. |
| Insulation | Cross-Linked Polyethylene (XLPE). |
| Insulation Shield | Conducting layer + copper tape. |
| Ground Check Conductor | Copper conductor with a yellow polypropylene insulation. |
| Grounding Conductor | Tinned copper conductor. |
| Jacket | Polyvinyl Chloride (PVC), black. |
| Options | Other jacket materials such as CSP/PCP/NBR/PVC are available upon request. Two-layer jacket with reinforcing fibre between the two layers can be offered as an option. |
| Mechanical and Thermal Properties | Minimum Bending Radius: 12×OD Maximum Operating Temperature: +90℃ |
Dimensions and Weight:
|
Construction |
No. of Strands |
Grounding Conductor Size |
Ground Check Conductor Size |
Nominal Insulation Thickness |
Nominal Jacket Thickness |
Nominal Overall Diameter |
Nominal Weight |
Ampacity |
||||
|
No. of cores×AWG/kcmil |
- |
AWG/kcmil |
AWG/kcmil |
inch |
mm |
inch |
mm |
inch |
mm |
lbs/kft |
kg/km |
A |
|
3×4 |
7 |
8 |
8 |
0.115 |
2.9 |
0.11 |
2.8 |
1.52 |
38.6 |
1366 |
2032 |
122 |
|
3×2 |
7 |
6 |
8 |
0.115 |
2.9 |
0.11 |
2.8 |
1.58 |
40.1 |
1727 |
2569 |
159 |
|
3×1 |
19 |
5 |
8 |
0.115 |
2.9 |
0.11 |
2.8 |
1.66 |
42.2 |
2174 |
3234 |
184 |
|
3×1/0 |
19 |
4 |
8 |
0.115 |
2.9 |
0.11 |
2.8 |
1.74 |
44.2 |
2656 |
3952 |
211 |
|
3×2/0 |
19 |
3 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
1.90 |
48.3 |
2895 |
4307 |
243 |
|
3×3/0 |
19 |
2 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
2.00 |
50.8 |
3320 |
4950 |
279 |
|
3×4/0 |
19 |
1 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
2.12 |
53.8 |
3983 |
5926 |
321 |
|
3×250 |
37 |
1/0 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
2.22 |
56.4 |
4484 |
6671 |
355 |
|
3×350 |
37 |
2/0 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
2.43 |
61.7 |
5827 |
8669 |
435 |
|
3×500 |
37 |
4/0 |
8 |
0.115 |
2.9 |
0.14 |
3.6 |
2.70 |
68.6 |
7893 |
11743 |
536 |
Ampacity-Based on a conductor temperature of 90℃ and an ambient air temperature of 40℃, per ICEA S-75-381.
