| Applications | These cables are similar to Type 241 cables, except more flexible and have a smaller ‘natural’ bending radius, suitable for use as monorail cable where cable loops will be narrower, thus allowing more space for other equipment and reducing opportunities for getting snagged. |
| Standards | AS/NZS 1802:2003 AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 |

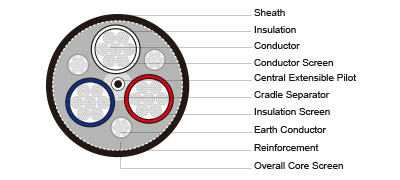

| Construction | |
| 3×Conductors | Flexible stranded tinned annealed copper conductor. |
| Conductor Screen | Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above). |
| Insulation | EPR. |
| Insulation Screen | Semiconductive elastomer. |
| Cradle Separator | Semiconductive PCP. |
| Overall Core Screen | Semiconductive PCP filling and covering. |
| 3×Interstitial Earth Conductor | Semiconductive PCP covered flexible stranded tinned copper conductor. |
| 1×Central Extensible Pilot | EPR covered flexible stranded tinned copper conductor. |
| Textile Reinforcement | Open-weave braid reinforcement. |
| Sheath | Heavy duty PCP sheath.Heavy duty CPE/CSP sheath can be offered upon request. |
Dimensions and Weight
|
Nominal Conductor Area |
StrandSize |
Insulation Thickness |
Earth Conductor |
Pilot Conductor |
Thickness of Sheath Including SC PCP Layer |
Nominal Overall Diameter |
Nominal Weight |
||
|
StrandSize |
Thickness of Covering |
StrandSize |
Thickness of Covering |
||||||
|
mm² |
No/mm |
mm |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
|
Type 241.1 |
|||||||||
|
70 |
361/0.50 |
1.8 |
110/0.40 |
1.0 |
40/0.20 |
0.8 |
5.3 |
53.0 |
485 |
|
95 |
475/0.50 |
2.0 |
85/0.40 |
1.0 |
40/0.20 |
0.8 |
5.8 |
58.8 |
595 |
|
120 |
608/0.50 |
2.1 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.5 |
715 |
|
150 |
740/0.50 |
2.3 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.7 |
67.0 |
840 |
|
185 |
925/0.50 |
2.5 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
7.3 |
75.1 |
1040 |
|
240 |
1221/0.50 |
2.8 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
85.7 |
1340 |
|
Type 241.3 |
|||||||||
|
70 |
361/0.50 |
3.0 |
110/0.40 |
1.2 |
40/0.20 |
0.8 |
6.4 |
61.2 |
590 |
|
95 |
475/0.50 |
3.0 |
135/0.40 |
1.2 |
40/0.20 |
0.8 |
6.8 |
65.9 |
710 |
|
120 |
608/0.50 |
3.0 |
165/0.40 |
1.2 |
40/0.20 |
0.8 |
7.2 |
68.9 |
820 |
|
150 |
740/0.50 |
3.0 |
216/0.40 |
1.2 |
40/0.20 |
0.8 |
7.6 |
72.5 |
940 |
|
185 |
925/0.50 |
3.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.4 |
1130 |
|
240 |
1221/0.50 |
3.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
88.3 |
1420 |
|
Type 241.6 |
|||||||||
|
70 |
361/0.50 |
5.0 |
110/0.40 |
1.4 |
40/0.20 |
0.8 |
7.4 |
72.1 |
750 |
|
95 |
475/0.50 |
5.0 |
135/0.40 |
1.4 |
40/0.20 |
0.8 |
7.9 |
77.0 |
885 |
|
120 |
608/0.50 |
5.0 |
165/0.40 |
1.4 |
40/0.20 |
0.8 |
8.3 |
79.9 |
1000 |
|
150 |
740/0.50 |
5.0 |
216/0.40 |
1.4 |
40/0.20 |
0.8 |
8.6 |
83.3 |
1130 |
|
185 |
925/0.50 |
5.0 |
252/0.40 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.2 |
1330 |
|
240 |
1221/0.50 |
5.0 |
324/0.40 |
1.4 |
40/0.20 |
0.8 |
9.6 |
99.1 |
1640 |
