| Applications | These cables are used for the connection of electrical equipment, in minesand underground excavations with hazardousenvironments under particularly high mechanical loads,e.g. high-voltage transformers on power lines inunderground mining and tunnelling. |
| Standards | Based on VDE 0250 Part 813 |

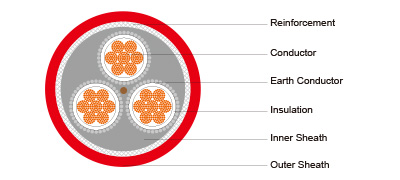

| Construction | |
| Conductors | Flexible stranded copper conductor, class 5 according to DIN VDE 0295. |
| Inner Conductor Layer | Special rubber compound, conductive. |
| Insulation | Rubber type 3GI3. |
| Outer Conductor Layer | Special rubber compound, conductive, easy strippable. |
| Earth Conductor | Spiral of tinnedcopper wires. |
| InnerSheath | Rubber type GM1b. |
| Reinforcement | Polyester anti-torsion braidbetween the jackets embedded. |
| Outer Sheath | Rubber type 5GM5. |
Dimensions and Weight
8.7/15kV
|
Number of Cores×Nominal Cross Section |
Minimium Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
|
No.×mm² |
mm |
mm |
kg/km |
|
3×150+3×70/3E |
73 |
78 |
10150 |
