| Application and Description | RHH/RHW-2/USE-2, XLPO type is for use in conduit, open tray, underground duct and aerial installations when properly supported and installed, RHH/RHW ratings is for installation in conduit or raceway,USE rating is for direct burial applications and CT rated for installation in cable tray(1/0 AWG and larger), it is for use in all closed environments or populated spaces such as auditoriums, arenas and healtd facilities where more stringent specifications for smoke and toxicity emission levels are desired, for use in broad range of commercial, industrial and utility applications where reliability is the major concern, where maximum performance will be demanded and where space is limited. |

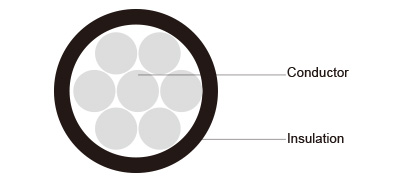

| Cable Construction | |
| Conductor | Tinned coated copper per ASTM B3 and B33. Class I stranding per ASTM B8 |
| Insulation | Flame-retardant, oil-resistant, limited smoke, Cross-Linked Polyolefin (XLPO) |
| Color | upon request, black is preferable |
| Technical Characteristics | - UL 44 - Thermoset-Insulated Wires and Cables - UL 758 - Appliance Wiring Material - UL 854 - Service Entrance Cables. - UL 1685 - UL Vertical Tray Fire - ICEA S-95-658 (NEMA WC70) - IEEE 1202 (70,000 BTU/hr) - IEEE 383 (70,000 BTU/hr) - Telcordia GR347 Core - UL Listed VW-1 - CSA FT4 - CSA Standard C22.2 No. 0.3 and No. 210.2 - Meets EPA 40 CFR, Part 261 for leachable lead content per TCLP metdod - OSHA acceptable |
Cable Parameter
|
AWG OR KCMIL |
STRAND (CLASS B) |
CONDUCTOR DIAMETER INCH/MM |
NOMINAL INSULATION THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
COPPER WEIGHT LBS/KFT KG/KM |
CABLE WEIGHT LBS/KFT KG/KM |
|||||
|
14 |
7 |
0.07 |
1.78 |
0.045 |
1.14 |
0.17 |
4.32 |
13 |
19 |
18 |
27 |
|
12 |
7 |
0.09 |
2.29 |
0.045 |
1.14 |
0.19 |
4.83 |
20 |
30 |
25 |
37 |
|
10 |
7 |
0.12 |
3.05 |
0.045 |
1.14 |
0.22 |
5.59 |
32 |
48 |
38 |
57 |
|
8 |
7 |
0.15 |
3.81 |
0.060 |
1.52 |
0.28 |
7.11 |
50 |
75 |
58 |
86 |
|
6 |
7 |
0.18 |
4.57 |
0.060 |
1.52 |
0.31 |
7.87 |
81 |
121 |
116 |
173 |
|
4 |
7 |
0.23 |
5.84 |
0.060 |
1.52 |
0.36 |
9.14 |
129 |
192 |
171 |
254 |
|
2 |
7 |
0.28 |
7.11 |
0.060 |
1.52 |
0.42 |
10.67 |
205 |
305 |
257 |
382 |
|
1 |
19 |
0.32 |
8.13 |
0.080 |
2.03 |
0.49 |
12.45 |
258 |
385 |
331 |
493 |
|
1/0 |
19 |
0.36 |
9.14 |
0.080 |
2.03 |
0.53 |
13.46 |
326 |
485 |
406 |
604 |
|
2/0 |
19 |
0.41 |
10.41 |
0.080 |
2.03 |
0.58 |
14.73 |
411 |
612 |
495 |
737 |
|
3/0 |
19 |
0.46 |
11.68 |
0.080 |
2.03 |
0.63 |
16.00 |
518 |
771 |
612 |
911 |
|
4/0 |
19 |
0.51 |
12.95 |
0.080 |
2.03 |
0.68 |
17.27 |
653 |
972 |
757 |
1126 |
|
250 |
37 |
0.56 |
14.22 |
0.095 |
2.41 |
0.76 |
19.30 |
772 |
1149 |
905 |
1347 |
|
350 |
37 |
0.66 |
16.76 |
0.095 |
2.41 |
0.87 |
22.10 |
1081 |
1609 |
1237 |
1841 |
|
500 |
37 |
0.79 |
20.07 |
0.095 |
2.41 |
1.00 |
25.40 |
1544 |
2298 |
1728 |
2571 |
|
750 |
61 |
0.97 |
24.64 |
0.110 |
2.79 |
1.21 |
30.73 |
2316 |
3447 |
2572 |
3827 |
