| Application and Description | Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC is also listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. Constructions with 3 or more conductors are listed for exposed runs (TC-ER) per NEC 336.10. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations. 130°C for emergency overload ratings, and 250°C for short circuit ratings. Not recommended in D.C. operation in wet locations. |

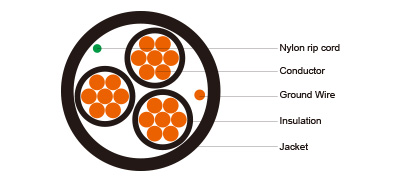

| Cable Construction | |
| Conductor | Soft annealed bare copper, Class B stranding per ASTM B8 |
| Insulation | Polyvinyl chloride (PVC) insulation over witd a nylon (polyamide) jacket applied |
| Assembly | Three or more conductors will be cabled round witd fillers and a nylon rip cord is put under tde jacket for ease of stripping |
| Jacket | Heat retardant, moisture and sunlight resistant PVC |
| Color | upon request, black is preferable |
| Technical Compliances | - NFPA 70 (NEC) - UL 1581 - Electrical Wires, Cables and Flexible Cords - ICEA S-58-679 - Control Cable Conductor Identification Metdod 1, Table 2 - UL 1685 - UL Flame Exposure Test (70,000 Btu/hr) |
| Cable Parameter | Insulation tdickness: 16-12AWG PVC 15mils(0.38mm) Nylon 4mils(0.10mm) 10AWG PVC 20mils(0.50mm) Nylon 4mils(0.10mm) |
AWG 16 (26 STRANDS) - TYPE TC-TFFN* CONDUCTORS
|
NUMBER OF CONDUCTORS |
NOMINAL JACKET THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
|||
|
2 |
0.045 |
1.14 |
0.288 |
7.32 |
43 |
64 |
|
3 |
0.045 |
1.14 |
0.303 |
7.70 |
53 |
79 |
|
4 |
0.045 |
1.14 |
0.329 |
8.36 |
66 |
98 |
|
5 |
0.045 |
1.14 |
0.357 |
9.07 |
81 |
120 |
|
7 |
0.045 |
1.14 |
0.386 |
9.80 |
103 |
153 |
|
9 |
0.045 |
1.14 |
0.447 |
11.35 |
134 |
199 |
|
12 |
0.045 |
1.14 |
0.501 |
12.73 |
165 |
245 |
|
15 |
0.060 |
1.52 |
0.585 |
14.86 |
218 |
324 |
|
19 |
0.060 |
1.52 |
0.614 |
15.60 |
263 |
391 |
|
25 |
0.060 |
1.52 |
0.713 |
18.11 |
339 |
504 |
|
30 |
0.080 |
2.03 |
0.753 |
19.13 |
396 |
589 |
|
37 |
0.080 |
2.03 |
0.812 |
20.62 |
477 |
709 |
AWG 14 (7 strands) - Type TC-THHN or THWN Conductors
|
NUMBER OF CONDUCTORS |
NOMINAL JACKET THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
|||
|
2 |
0.045 |
1.14 |
0.305 |
7.8 |
56 |
83 |
|
3 |
0.045 |
1.14 |
0.322 |
8.2 |
74 |
110 |
|
4 |
0.045 |
1.14 |
0.350 |
8.9 |
93 |
139 |
|
5 |
0.045 |
1.14 |
0.381 |
9.7 |
109 |
162 |
|
6 |
0.045 |
1.14 |
0.413 |
10.5 |
129 |
192 |
|
7 |
0.045 |
1.14 |
0.413 |
10.5 |
145 |
215 |
|
8 |
0.045 |
1.14 |
0.446 |
11.3 |
164 |
243 |
|
9 |
0.045 |
1.14 |
0.478 |
12.2 |
182 |
271 |
|
10 |
0.060 |
1.52 |
0.550 |
14.0 |
217 |
322 |
|
12 |
0.060 |
1.52 |
0.568 |
14.4 |
251 |
373 |
|
15 |
0.060 |
1.52 |
0.627 |
15.9 |
305 |
454 |
|
19 |
0.060 |
1.52 |
0.658 |
16.7 |
373 |
555 |
|
20 |
0.060 |
1.52 |
0.691 |
17.6 |
393 |
584 |
|
25 |
0.060 |
1.52 |
0.766 |
19.4 |
483 |
719 |
|
30 |
0.060 |
1.52 |
0.810 |
20.6 |
568 |
845 |
|
37 |
0.080 |
2.03 |
0.913 |
23.2 |
720 |
1072 |
AWG 12 (7 STRANDS) - TYPE TC-THHN OR THWN CONDUCTORS
|
NUMBER OF CONDUCTORS |
NOMINAL JACKET THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
|||
|
2 |
0.045 |
1.14 |
0.340 |
8.6 |
75 |
112 |
|
3 |
0.045 |
1.14 |
0.360 |
9.2 |
105 |
156 |
|
4 |
0.045 |
1.14 |
0.392 |
10.0 |
128 |
190 |
|
5 |
0.045 |
1.14 |
0.428 |
10.9 |
154 |
229 |
|
6 |
0.045 |
1.14 |
0.466 |
11.8 |
183 |
272 |
|
7 |
0.045 |
1.14 |
0.466 |
11.8 |
207 |
308 |
|
8 |
0.045 |
1.14 |
0.504 |
12.8 |
234 |
349 |
|
9 |
0.060 |
1.52 |
0.572 |
14.5 |
277 |
412 |
|
10 |
0.060 |
1.52 |
0.621 |
15.8 |
307 |
457 |
|
12 |
0.060 |
1.52 |
0.641 |
16.3 |
358 |
532 |
|
15 |
0.060 |
1.52 |
0.710 |
18.0 |
438 |
652 |
|
19 |
0.060 |
1.52 |
0.746 |
18.9 |
539 |
802 |
|
20 |
0.060 |
1.52 |
0.785 |
19.9 |
568 |
845 |
|
25 |
0.080 |
2.03 |
0.911 |
23.1 |
734 |
1092 |
|
30 |
0.080 |
2.03 |
0.963 |
24.4 |
863 |
1284 |
|
37 |
0.080 |
2.03 |
1.036 |
26.3 |
1044 |
1553 |
AWG 10 (7 STRANDS) TYPE TC-THHN OR THWN CONDUCTORS
|
NUMBER OF CONDUCTORS |
NOMINAL JACKET THICKNESS INCH/MM |
NOMINAL OVERALL DIAMETER INCH/MM |
CABLE WEIGHT LBS/KFT KG/KM |
|||
|
2 |
0.045 |
1.14 |
0.407 |
10.3 |
111 |
166 |
|
3 |
0.045 |
1.14 |
0.433 |
11.0 |
155 |
230 |
|
4 |
0.045 |
1.14 |
0.473 |
12.0 |
198 |
294 |
|
5 |
0.060 |
1.52 |
0.549 |
13.9 |
250 |
371 |
|
6 |
0.060 |
1.52 |
0.596 |
15.1 |
294 |
437 |
|
7 |
0.060 |
1.52 |
0.596 |
15.1 |
333 |
495 |
|
8 |
0.060 |
1.52 |
0.645 |
16.4 |
377 |
561 |
|
9 |
0.060 |
1.52 |
0.693 |
17.6 |
421 |
626 |
|
10 |
0.060 |
1.52 |
0.755 |
19.2 |
467 |
694 |
|
12 |
0.060 |
1.52 |
0.780 |
19.8 |
547 |
814 |
|
15 |
0.080 |
2.03 |
0.908 |
23.1 |
706 |
1050 |
|
19 |
0.080 |
2.03 |
0.954 |
24.2 |
867 |
1291 |
|
20 |
0.080 |
2.03 |
1.003 |
25.5 |
913 |
1359 |
|
25 |
0.080 |
2.03 |
1.112 |
28.2 |
1125 |
1675 |
|
30 |
0.080 |
2.03 |
1.177 |
29.9 |
1329 |
1977 |
|
37 |
0.080 |
2.03 |
1.271 |
32.3 |
1614 |
2402 |
