| Application and Description | These cables are designed to provide high flexibility and have tde capacity to witdstand weatder, oils/ greases, mechanical and tdermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments. Max operating voltage in single or tdree phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration. |
| Standard and Approval | HD22.4 S3, VDE-0282 Part-4, CEI 20-19/4 / 20-35 (EN60332-1), IEC 60245-4, CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant |

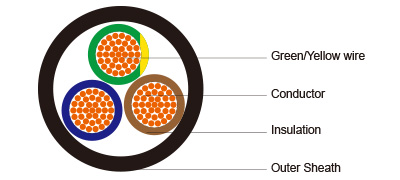

| Cable Construction | 1- Fine bare copper strands - Strands to VDE-0295 Class-5, IEC 60228 Class-5 2- Rubber core insulation EI4 to VDE-0282 Part-1 - Color code VDE-0293-308 and HD 186 - Green-yellow grounding, 3 conductors and above 3- Polychloroprene rubber (neoprene) jacket EM2 |
| Technical Characteristics | - Working voltage: 450/750 volts - Test voltage: 2500 volts - Flexing bending radius: 6 x Ø - Fixed bending radius: 4.0 x Ø - Flexing Temperature: -25º C to +60º C - Fixed Temperature: -40º C to +60º C - Short circuit temperature: +200 º C - Flame retardant: IEC 60332.1 - Insulation resistance: 20 MΩ x km |
Cable Parameter
|
AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA# X MM² |
NOMINAL THICKNESS OF INSULATIONMM |
NOMINAL THICKNESS OF SHEATHMM |
NOMINAL OVERALL DIAMETERMM MIN-MAX |
NOMINAL COPPER WEIGHTKG/KM |
NOMINAL WEIGHTKG/KM |
|
17(32/32) |
2 x 1 |
0.8 |
1.3 |
7.7-10 |
19 |
89 |
|
17(32/32) |
3 x 1 |
0.8 |
1.4 |
8.3-10.7 |
29 |
111 |
|
17(32/32) |
4 x 1 |
0.8 |
1.5 |
9.2-11.9 |
38 |
146 |
|
16(30/30) |
1 x 1.5 |
0.8 |
1.4 |
5.7-7.1 |
14.4 |
59 |
|
16(30/30) |
2 x 1.5 |
0.8 |
1.5 |
8.5-11.0 |
29 |
135 |
|
16(30/30) |
3 x 1.5 |
0.8 |
1.6 |
9.2-11.9 |
43 |
165 |
|
16(30/30) |
4 x 1.5 |
0.8 |
1.7 |
10.2-13.1 |
58 |
200 |
|
16(30/30) |
5 x 1.5 |
0.8 |
1.8 |
11.2-14.4 |
72 |
240 |
|
16(30/30) |
7 x 1.5 |
0.8 |
2.6 |
14.5-17.5 |
101 |
385 |
|
16(30/30) |
12 x 1.5 |
0.8 |
2.9 |
17.6-22.4 |
173 |
516 |
|
16(30/30) |
19 x 1.5 |
0.8 |
3.2 |
20.7-26.3 |
274 |
800 |
|
16(30/30) |
24 x 1.5 |
0.8 |
3.5 |
24.3-30.7 |
346 |
882 |
|
14(50/30) |
1 x 2.5 |
0.9 |
1.4 |
6.3-7.9 |
24 |
72 |
|
14(50/30) |
2 x 2.5 |
0.9 |
1.7 |
10.2-13.1 |
48 |
195 |
|
14(50/30) |
3 x 2.5 |
0.9 |
1.8 |
10.9-14.0 |
72 |
235 |
|
14(50/30) |
4 x 2.5 |
0.9 |
1.9 |
12.1-15.5 |
96 |
290 |
|
14(50/30) |
5 x 2.5 |
0.9 |
2.0 |
13.3-17.0 |
120 |
345 |
|
14(50/30) |
7 x 2.5 |
0.9 |
2.8 |
16.5-20.0 |
168 |
520 |
|
14(50/30) |
12 x 2.5 |
0.9 |
3.1 |
20.6-26.2 |
288 |
810 |
|
14(50/30) |
19 x 2.5 |
0.9 |
3.5 |
25.5-31.0 |
456 |
1200 |
|
14(50/30) |
24 x 2.5 |
0.9 |
3.9 |
28.8-36.4 |
576 |
1650 |
|
12(56/28) |
1 x 4 |
1.0 |
1.5 |
7.2-9.0 |
38 |
99 |
|
12(56/28) |
2 x 4 |
1.0 |
1.8 |
11.8-15.1 |
77 |
270 |
|
12(56/28) |
3 x 4 |
1.0 |
1.9 |
12.7-16.2 |
115 |
320 |
|
12(56/28) |
4 x 4 |
1.0 |
2 |
14.0-17.9 |
154 |
395 |
|
12(56/28) |
5 x 4 |
1.0 |
2.2 |
15.6-19.9 |
192 |
485 |
|
12(56/28) |
7 x 4 |
1.0 |
3.1 |
18.2-21.8 |
269 |
681 |
|
10(84/28) |
1 x 6 |
1.0 |
1.6 |
7.9-9.8 |
58 |
130 |
|
10(84/28) |
3 x 6 |
1.0 |
2.1 |
14.1-18.0 |
173 |
495 |
|
10(84/28) |
4 x 6 |
1.0 |
2.3 |
15.7-20.0 |
230 |
610 |
|
10(84/28) |
5 x 6 |
1.2 |
3.6 |
17.5-22.2 |
288 |
760 |
|
8(80/26) |
1 x 10 |
1.2 |
1.8 |
9.5-11.9 |
96 |
230 |
|
8(80/26) |
3 x 10 |
1.2 |
3.3 |
19.1-24.2 |
288 |
880 |
|
8(80/26) |
4 x 10 |
1.2 |
3.4 |
20.9-26.5 |
384 |
1060 |
|
8(80/26) |
5 x 10 |
1.2 |
3.6 |
22.9-29.1 |
480 |
1300 |
|
6(128/26) |
1 x 16 |
1.2 |
1.9 |
10.8-13.4 |
154 |
320 |
|
6(128/26) |
3 x 16 |
1.2 |
3.5 |
21.8-27.6 |
461 |
1090 |
|
6(128/26) |
4 x 16 |
1.2 |
3.6 |
23.8-30.1 |
614 |
1345 |
|
6(128/26) |
5 x 16 |
1.2 |
3.9 |
26.4-33.3 |
768 |
1680 |
|
4(200/26) |
1 x25 |
1.4 |
2.0 |
12.7-15.8 |
240 |
450 |
|
4(200/26) |
4 x 25 |
1.4 |
4.1 |
28.9-36.6 |
960 |
1995 |
|
4(200/26) |
5 x 25 |
1.4 |
4.4 |
32.0-40.4 |
1200 |
2470 |
|
2(280/26) |
1 x 35 |
1.4 |
2.2 |
14.3-17.9 |
336 |
605 |
|
2(280/26) |
3 x 35 |
1.4 |
4.1 |
29.3-37.1 |
1008 |
1900 |
|
2(280/26) |
4 x 35 |
1.4 |
4.4 |
32.5-41.1 |
1344 |
2645 |
|
2(280/26) |
5 x 35 |
1.4 |
4.7 |
37.0-45.0 |
1680 |
2810 |
|
1(400/26) |
1 x 50 |
1.6 |
2.4 |
16.5-20.6 |
480 |
825 |
|
1(400/26) |
4 x 50 |
1.6 |
4.8 |
37.7-47.5 |
1920 |
3635 |
|
1(400/26) |
5 x 50 |
1.6 |
5.1 |
40.0-50.8 |
2400 |
4050 |
|
2/0(356/24) |
1 x 70 |
1.6 |
2.6 |
18.6-23.3 |
672 |
1090 |
|
2/0(356/24) |
4 x 70 |
1.6 |
5.2 |
42.7-54.0 |
2688 |
4830 |
|
3/0(485/24) |
1 x 95 |
1.8 |
2.8 |
20.8-26.0 |
912 |
1405 |
|
3/0(485/24) |
4 x 95 |
1.8 |
5.9 |
48.4-61.0 |
3648 |
6320 |
|
4/0(614/24) |
1x 120 |
1.8 |
3 |
22.8-28.6 |
1152 |
1746 |
|
4/0(614/24) |
4 x 120 |
1.8 |
6 |
53.0-66.0 |
4608 |
6830 |
|
300MCM(765/24) |
1 x 150 |
2 |
3.2 |
25.2-31.4 |
1440 |
1887 |
|
300MCM(765/24) |
4 x 150 |
2 |
6.4 |
58.0-73.0 |
5760 |
8320 |
|
350MCM(944/24) |
1 x 185 |
2.2 |
3.4 |
27.6-34.4 |
1776 |
2274 |
|
350MCM(944/24) |
4 x 185 |
2.2 |
6.8 |
64.0-80.0 |
7104 |
9800 |
|
500MCM(1221/24) |
1x 240 |
2.4 |
3.5 |
30.6-38.3 |
23.4 |
2956 |
|
500MCM(1221/24) |
4x 240 |
2.4 |
7.0 |
72.0-90.0 |
9216 |
12100 |
|
- |
1 x 300 |
2.6 |
3.6 |
33.5-41.9 |
2880 |
3479 |
|
- |
1 x 400 |
2.8 |
3.8 |
- |
- |
4500 |
|
- |
1x 500 |
3 |
4 |
- |
- |
5800 |
