3X2X0.14mm2 PIMF Instrumentation Cable
Multi-Pair, PE-Insulation, Individual & Collective Screen, PVC-Sheath
Application
For transmission of analogue and digital signals in instrument and control systems. Not recommended for direct burial. For indoor and outdoor installation in dry and wet locations on racks, in Conduits.

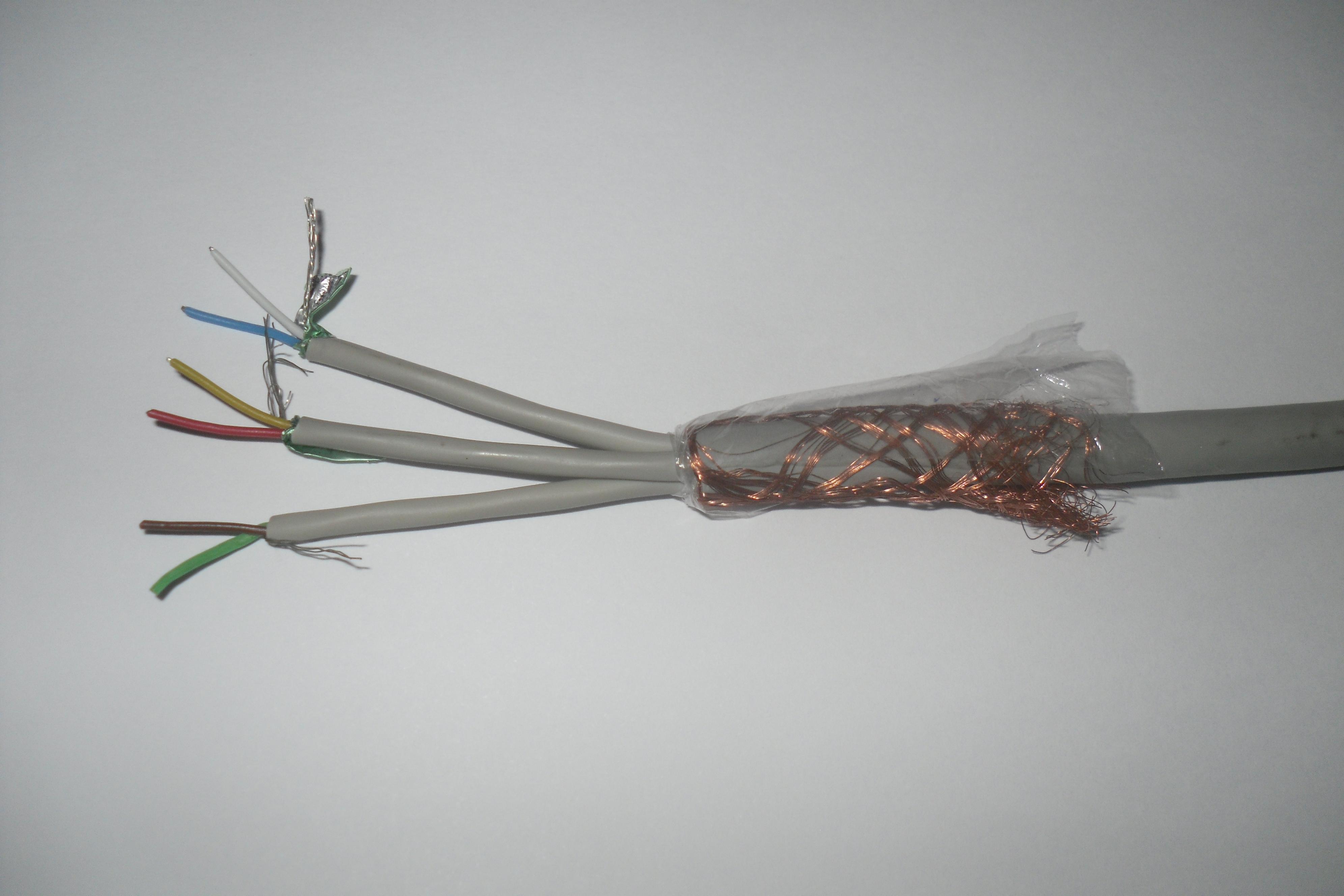

Construction
1. Inner Conductor: Tinned annealed copper, sizes: 0.14 mm2(7/0.16mm)
2. Insulation: Solid polyethylene(PE). Colour code: According to BS5308 part 1.
Pair 1: Black / Blue; Pair 2: Black / Green; Pair 3: Blue / Green;
3. Pair screen: 24 μm aluminium / PETP tape with tinned copper drain wire, 0.14 mm2(7/0.16mm) wrapped
over each 2 cores.
4. Inner Jacket: PVC jacket is extruded over each of the three screened pairs. Color: Grey
5. Assembly: The three jacket elements are then laid up and wrapped with polyester tape.
6. Collective screen: Plain copper wire braid over the above with coverage from 60% up to 80%.
7. Outer sheath: Polyvinyl chloride( PVC), Color: Grey.
Marking: Instrumentation Cable 3X2X0.14mm2 TC/PE/IS/PVC/CWB/PVC UNIVERSAL YR2016
Or as per customer request.
Packing length: 1000m/Drum, or as per customer request.
Standard Compliance:
Basic design base on BS5308 part 1
Mechanical Properties:
Minimum Bending Radius:
7.5 x d (d= overall diameter)
Temperature Range:
-40°C up to +70°C (during operation)
- 5°C up to +50°C (during installation)
Dimension:
| Number of pairs (Cores) |
Conductor size(Stranding/ Diameter) |
Nominal Thickness of Insulation |
Nominal Thickness of Inner PVC Jacket |
Nominal Thickness of Outer PVC Jacket |
Nominal over Diameter |
Nominal Weight |
| mm2(No./mm) | mm | mm | mm | mm | Kg/KM | |
| 3Pairs (6 Cores) |
0.14(7/0.16) | 0.21 | 0.3 | 0.6 | 7.0±0.3 | 51 |
