0.6/1KV [FA-] DPY, TPY, FPY, 5PY, 6PY [FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC [FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY

Standards: JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

FA DPY TPY FPY 5PY 6PY FA DPYC TPYC FPYC 5PYC 6PYC FA DPYCY TPYCY FPYCY 5PYCY 6PYCY

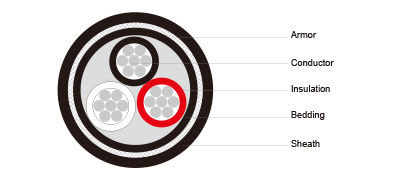

CABLE CONSTRUCTION

Conductor D(T,F,5,6,10) Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling   Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Bedding Y PVC as per JIS C 3401
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3401
Core identification   2C Black, White - 3C / 2C+E Black, White, Red/ Black, White, G/Y 4C / 3C+E Black, White, Red, Green /Black, White, Red, G/Y 5C and over Black No. on white insulation /Black No. on white insulation, G/Y
Outer sheath  color   Black

Cable Parameter

0.6/1KV (FA-) DPY

Conductor Thick. of insulation Thick. of bedding (FA-) DPY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1 1.1 10.4 0.5 120
2.5 7/0.67 2.01 1 1.2 11.5 0.5 155
4 7/0.85 2.55 1 1.2 12.6 0.6 200
6 7/1.04 3.12 1 1.3 13.9 0.6 255
10 7/1.35 4.05 1 1.3 15.8 0.7 360
16 7/1.70 5.1 1 1.4 18.1 0.8 515
25 7/2.14 6.42 1.2 1.5 21.7 0.9 770
35 7/2.52 7.56 1.2 1.6 24.2 1 1010
50 19/1.78 8.9 1.4 1.8 28.1 1.2 1360
70 19/2.14 10.7 1.6 2 33.3 1.4 1930
95 19/2.52 12.6 1.6 2.1 37.3 1.6 2550
120 37/2.03 14.2 1.6 2.3 40.9 1.6 3150
150 37/2.25 15.8 1.8 2.4 45 1.7 3840
185 37/2.52 17.6 2 2.6 50 1.9 4780

0.6/1KV (FA-) DPYC

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) DPYC
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1 1.1 0.3 11.7 0.5 205
2.5 7/0.67 2.01 1 1.2 0.3 12.8 0.5 250
4 7/0.85 2.55 1 1.2 0.3 13.9 0.6 300
6 7/1.04 3.12 1 1.3 0.3 15.2 0.6 370
10 7/1.35 4.05 1 1.3 0.3 17.1 0.7 490
16 7/1.70 5.1 1 1.4 0.3 19.4 0.8 660
25 7/2.14 6.42 1.2 1.5 0.3 23 0.9 945
35 7/2.52 7.56 1.2 1.6 0.3 25.5 1 1200
50 19/1.78 8.9 1.4 1.8 0.3 29.4 1.2 1580
70 19/2.14 10.7 1.6 2 0.4 35.1 1.4 2300
95 19/2.52 12.6 1.6 2.1 0.4 39.1 1.6 2960
120 37/2.03 14.2 1.6 2.3 0.4 42.7 1.6 3600
150 37/2.25 15.8 1.8 2.4 0.4 46.8 1.7 4330
185 37/2.52 17.6 2 2.6 0.4 51.8 1.9 5330

0.6/1KV (FA-) DPYCY

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) DPYCY
Size Construction O.D Thick.of covering Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1 1.1 0.3 0.9 13.7 0.5 260
2.5 7/0.67 2.01 1 1.2 0.3 0.9 14.8 0.6 310
4 7/0.85 2.55 1 1.2 0.3 0.9 15.9 0.6 365
6 7/1.04 3.12 1 1.3 0.3 1 17.4 0.7 445
10 7/1.35 4.05 1 1.3 0.3 1 19.3 0.8 575
16 7/1.70 5.1 1 1.4 0.3 1.1 21.8 0.9 765
25 7/2.14 6.42 1.2 1.5 0.3 1.2 25.6 1 1080
35 7/2.52 7.56 1.2 1.6 0.3 1.2 28.1 1.1 1350
50 19/1.78 8.9 1.4 1.8 0.3 1.3 32.2 1.3 1770
70 19/2.14 10.7 1.6 2 0.4 1.5 38.5 1.5 2570
95 19/2.52 12.6 1.6 2.1 0.4 1.6 42.7 1.6 3280
120 37/2.03 14.2 1.6 2.3 0.4 1.7 46.5 1.7 3970
150 37/2.25 15.8 1.8 2.4 0.4 1.8 50.8 1.8 4750
185 37/2.52 17.6 2 2.6 0.4 1.9 56 1.9 5810

0.6/1KV (FA-) TPY

Conductor Thick. of insulation Thick. of bedding (FA-) TPY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 11.2 0.5 150
2.5 7/0.67 2.01 1.0 1.2 12.2 0.5 195
4 7/0.85 2.55 1.0 1.2 13.4 0.6 255
6 7/1.04 3.12 1.0 1.3 14.8 0.6 335
10 7/1.35 4.05 1.0 1.4 17.0 0.7 485
16 7/1.70 5.1 1.0 1.5 19.5 0.8 700
25 7/2.14 6.42 1.2 1.6 23.4 1.0 1060
35 7/2.52 7.56 1.2 1.7 26.1 1.1 1390
50 19/1.78 8.9 1.4 1.9 30.2 1.3 1870
70 19/2.14 10.7 1.6 2.1 35.8 1.5 2660
95 19/2.52 12.6 1.6 2.2 40.1 1.6 3530
120 37/2.03 14.2 1.6 2.4 44.0 1.7 4370
150 37/2.25 15.8 1.8 2.5 48.4 1.8 5340
185 37/2.52 17.6 2.0 2.7 53.7 1.9 6640
240 61/2.25 20.25 2.2 3.0 60.4 2.3 8880

0.6/1KV (FA-) TPYC

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) TPYC
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 12.5 0.5 245
2.5 7/0.67 2.01 1.0 1.2 0.3 13.5 0.5 295
4 7/0.85 2.55 1.0 1.2 0.3 14.7 0.6 365
6 7/1.04 3.12 1.0 1.3 0.3 16.1 0.6 455
10 7/1.35 4.05 1.0 1.4 0.3 18.3 0.7 625
16 7/1.70 5.1 1.0 1.5 0.3 20.8 0.8 855
25 7/2.14 6.42 1.2 1.6 0.3 24.7 1.0 1240
35 7/2.52 7.56 1.2 1.7 0.3 27.4 1.1 1600
50 19/1.78 8.9 1.4 1.9 0.4 32.0 1.3 2200
70 19/2.14 10.7 1.6 2.1 0.4 37.6 1.5 3050
95 19/2.52 12.6 1.6 2.2 0.4 41.9 1.6 3980
120 37/2.03 14.2 1.6 2.4 0.4 45.8 1.7 4860
150 37/2.25 15.8 1.8 2.5 0.4 50.2 1.8 5870
185 37/2.52 17.6 2.0 2.7 0.4 55.5 1.9 7230
240 61/2.25 20.25 2.2 3.0 0.4 62.7 2.3 10100

0.6/1KV (FA-) TPYCY

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire Thick. of covering (FA-) TPYCY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 0.9 14.5 0.6 300
2.5 7/0.67 2.01 1.0 1.2 0.3 0.9 15.5 0.6 355
4 7/0.85 2.55 1.0 1.2 0.3 1.0 16.9 0.7 440
6 7/1.04 3.12 1.0 1.3 0.3 1.0 18.3 0.7 535
10 7/1.35 4.05 1.0 1.4 0.3 1.1 20.7 0.8 725
16 7/1.70 5.1 1.0 1.5 0.3 1.1 23.2 0.9 970
25 7/2.14 6.42 1.2 1.6 0.3 1.2 27.3 1.1 1390
35 7/2.52 7.56 1.2 1.7 0.3 1.3 30.2 1.2 1770
50 19/1.78 8.9 1.4 1.9 0.4 1.4 35.0 1.4 2420
70 19/2.14 10.7 1.6 2.1 0.4 1.5 41.0 1.6 3350
95 19/2.52 12.6 1.6 2.2 0.4 1.6 45.5 1.7 4320
120 37/2.03 14.2 1.6 2.4 0.4 1.7 49.6 1.8 5250
150 37/2.25 15.8 1.8 2.5 0.4 1.9 54.2 1.9 6340
185 37/2.52 17.6 2.0 2.7 0.4 2.0 59.7 2.0 7780
240 61/2.25 20.25 2.2 3.0 0.4 2.2 67.2 3.4 10376

0.6/1KV (FA-) FPY

Conductor Thick. of insulation Thick. of bedding (FA-) FPY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 11.8 0.6 230
2.5 7/0.67 2.01 1.0 1.2 12.8 0.6 290
4 7/0.85 2.55 1.0 1.3 14.4 0.7 380
6 7/1.04 3.12 1.0 1.3 15.8 0.8 500
10 7/1.35 4.05 1.0 1.4 18.3 0.9 730
16 7/1.70 5.1 1.0 1.5 21.0 1.1 1050
25 7/2.14 6.42 1.2 1.7 25.7 1.3 1590
35 7/2.52 7.56 1.2 1.8 28.6 1.4 2090
50 19/1.78 8.9 1.4 2.0 33.5 1.7 2810
70 19/2.14 10.7 1.4 2.1 38.1 1.9 3990
95 19/2.52 12.6 1.6 2.4 44.4 2.2 5300
120 37/2.03 14.2 1.6 2.5 48.7 2.4 6560
150 37/2.25 15.8 1.8 2.7 54.0 2.7 8010
185 37/2.52 17.6 2.0 2.9 59.8 3.0 9960

0.6/1KV (FA-) FPYC

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) FPYC
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 13.4 0.7 370
2.5 7/0.67 2.01 1.0 1.2 0.3 14.4 0.7 440
4 7/0.85 2.55 1.0 1.3 0.3 16.0 0.8 550
6 7/1.04 3.12 1.0 1.3 0.3 17.4 0.9 680
10 7/1.35 4.05 1.0 1.4 0.3 19.9 1.0 940
16 7/1.70 5.1 1.0 1.5 0.3 22.6 1.1 1280
25 7/2.14 6.42 1.2 1.7 0.3 27.3 1.4 1860
35 7/2.52 7.56 1.2 1.8 0.3 30.2 1.5 2400
50 19/1.78 8.9 1.4 2.0 0.4 35.6 1.8 3300
70 19/2.14 10.7 1.4 2.1 0.4 40.2 2.0 4580
95 19/2.52 12.6 1.6 2.4 0.4 46.5 2.3 5970
120 37/2.03 14.2 1.6 2.5 0.4 50.8 2.5 7290
150 37/2.25 15.8 1.8 2.7 0.4 56.1 2.8 8810
185 37/2.52 17.6 2.0 2.9 0.4 61.9 3.1 10850

0.6/1KV (FA-) FPYCY

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire Thick. of covering (FA-) FPYCY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 0.9 15.4 0.8 450
2.5 7/0.67 2.01 1.0 1.2 0.3 1.0 16.4 0.8 530
4 7/0.85 2.55 1.0 1.3 0.3 1.0 18.1 0.9 660
6 7/1.04 3.12 1.0 1.3 0.3 1.0 19.6 1.0 800
10 7/1.35 4.05 1.0 1.4 0.3 1.1 22.2 1.1 1090
16 7/1.70 5.1 1.0 1.5 0.3 1.2 25.1 1.3 1460
25 7/2.14 6.42 1.2 1.7 0.3 1.3 30.0 1.5 2090
35 7/2.52 7.56 1.2 1.8 0.3 1.4 33.1 1.7 2660
50 19/1.78 8.9 1.4 2.0 0.4 1.5 38.8 1.9 3630
70 19/2.14 10.7 1.4 2.1 0.4 1.6 43.6 2.2 5030
95 19/2.52 12.6 1.6 2.4 0.4 1.8 50.2 2.5 6480
120 37/2.03 14.2 1.6 2.5 0.4 1.9 54.8 2.7 7880
150 37/2.25 15.8 1.8 2.7 0.4 2.0 60.4 3.0 9510
185 37/2.52 17.6 2.0 2.9 0.4 2.1 66.5 3.3 11670

0.6/1KV (FA-) 5PY

Conductor Thick. of insulation Thick. of bedding (FA-) 5PY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 12 8 0.6 270
2.5 7/0.67 2.01 1.0 1.3 14.2 0.7 340
4 7/0.85 2.55 1.0 1.3 15.7 0.8 440
6 7/1.04 3.12 1.0 1.4 17.5 0.9 570
10 7/1.35 4.05 1.0 1.5 20.2 1.0 840
16 7/1.70 5.1 1.0 1.6 23.2 1.2 1200
25 7/2.14 6.42 1.2 1.8 28.4 1.4 1820
35 7/2.52 7.56 1.2 1.9 31.7 1.6 2390
50 19/1.78 8.9 1.4 2.1 37.1 1.9 3210
70 19/2.14 10.7 1.4 2.3 42.4 2.1 4550
95 19/2.52 12.6 1.6 2.6 49.6 2.5 6050
120 37/2.03 14.2 1.6 2.7 54.1 2.7 7480
150 37/2.25 15.8 1.8 3.0 60.2 3.0 9140
185 37/2.52 17.6 2.0 3.2 66.6 3.3 11360

0.6/1KV (FA-) 5PYC

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) 5PYC
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 14.4 0.7 430
2.5 7/0.67 2.01 1.0 1.3 0.3 15.8 0.8 510
4 7/0.85 2.55 1.0 1.3 0.3 17.3 0.9 630
6 7/1.04 3.12 1.0 1.4 0.3 19.1 1.0 780
10 7/1.35 4.05 1.0 1.5 0.3 21.8 1.1 1080
16 7/1.70 5.1 1.0 1.6 0.3 24.8 1.2 1460
25 7/2.14 6.42 1.2 1.8 0.3 30.0 1.5 2130
35 7/2.52 7.56 1.2 1.9 0.4 33.8 1.7 2740
50 19/1.78 8.9 1.4 2.1 0.4 39.2 2.0 3770
70 19/2.14 10.7 1.4 2.3 0.4 44.5 2.2 5230
95 19/2.52 12.6 1.6 2.6 0.4 51.7 2.6 6810
120 37/2.03 14.2 1.6 2.7 0.4 56.2 2.8 8320
150 37/2.25 15.8 1.8 3.0 0.4 62.3 3.1 10050
185 37/2.52 17.6 2.0 3.2 0.4 68.7 3.4 12370

0.6/1KV (FA-) 5PYCY

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire Thick. of covering (FA-) 5PYCY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.2 0.3 1.0 16.5 0.8 520
2.5 7/0.67 2.01 1.0 1.3 0.3 1.0 17.9 0.9 610
4 7/0.85 2.55 1.0 1.3 0.3 1.0 19.4 1.0 760
6 7/1.04 3.12 1.0 1.4 0.3 1.1 21.5 1.1 920
10 7/1.35 4.05 1.0 1.5 0.3 1.1 24.2 1.2 1250
16 7/1.70 5.1 1.0 1.6 0.3 1.2 27.4 1.4 1670
25 7/2.14 6.42 1.2 1.8 0.3 1.4 33.0 1.7 2390
35 7/2.52 7.56 1.2 1.9 0.4 1.4 36.8 1.8 3040
50 19/1.78 8.9 1.4 2.1 0.4 1.6 42.6 2.1 4140
70 19/2.14 10.7 1.4 2.3 0.4 1.7 48.1 2.4 5740
95 19/2.52 12.6 1.6 2.6 0.4 1.9 55.8 2.8 7390
120 37/2.03 14.2 1.6 2.7 0.4 2.0 60.5 3.0 8990
150 37/2.25 15.8 1.8 3.0 0.4 2.2 67.0 3.4 10850
185 37/2.52 17.6 2.0 3.2 0.4 2.3 73.6 3.7 13310

0.6/1KV (FA-) 6PY

Conductor Thick. of insulation Thick. of bedding (FA-) 6PY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.3 14.1 0.7 310
2.5 7/0.67 2.01 1.0 1.3 15.4 0.8 390
4 7/0.85 2.55 1.0 1.4 17.3 0.9 510
6 7/1.04 3.12 1.0 1.4 19.0 1.0 650
10 7/1.35 4.05 1.0 1.6 22.2 1.1 960
16 7/1.70 5.1 1.0 1.7 25.6 1.3 1370
25 7/2.14 6.42 1.2 1.9 31.3 1.6 2080
35 7/2.52 7.56 1.2 2.0 34.9 1.7 2730
50 19/1.78 8.9 1.4 2.2 40.9 2.0 3660
70 19/2.14 10.7 1.4 2.5 47.0 2.4 5190
95 19/2.52 12.6 1.6 2.8 54.9 2.7 6900
120 37/2.03 14.2 1.6 2.9 59.9 3.0 8530
150 37/2.25 15.8 1.8 3.2 66.5 3.3 10420
185 37/2.52 17.6 2.0 3.5 73.9 3.7 12960

0.6/1KV (FA-) 6PYC

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire (FA-) 6PYC
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.3 0.3 15.7 0.8 500
2.5 7/0.67 2.01 1.0 1.3 0.3 17.0 0.9 590
4 7/0.85 2.55 1.0 1.4 0.3 18.9 0.9 720
6 7/1.04 3.12 1.0 1.4 0.3 20.6 1.0 890
10 7/1.35 4.05 1.0 1.6 0.3 23.8 1.2 1240
16 7/1.70 5.1 1.0 1.7 0.3 27.2 1.4 1670
25 7/2.14 6.42 1.2 1.9 0.3 32.9 1.6 2430
35 7/2.52 7.56 1.2 2.0 0.4 37.0 1.9 3130
50 19/1.78 8.9 1.4 2.2 0.4 43.0 2.2 4300
70 19/2.14 10.7 1.4 2.5 0.4 49.1 2.5 5970
95 19/2.52 12.6 1.6 2.8 0.4 57.0 2.9 7770
120 37/2.03 14.2 1.6 2.9 0.4 62.0 3.1 9490
150 37/2.25 15.8 1.8 3.2 0.4 68.6 3.4 11460
185 37/2.52 17.6 2.0 3.5 0.4 76.0 3.8 14110

0.6/1KV (FA-) 6PYCY

Conductor Thick. of insulation Thick. of bedding Dia. of steel wire Thick. of covering (FA-) 6PYCY
Size Construction O.D Nominal overall dia. Tolerance Cable weight (Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.3 0.3 1.0 17.8 0.9 600
2.5 7/0.67 2.01 1.0 1.3 0.3 1.0 19.1 1.0 700
4 7/0.85 2.55 1.0 1.4 0.3 1.1 21.3 1.1 870
6 7/1.04 3.12 1.0 1.4 0.3 1.1 23.0 1.2 1050
10 7/1.35 4.05 1.0 1.6 0.3 1.2 26.4 1.3 1430
16 7/1.70 5.1 1.0 1.7 0.3 1.3 30.0 1.5 1910
25 7/2.14 6.42 1.2 1.9 0.3 1.4 35.9 1.8 2730
35 7/2.52 7.56 1.2 2.0 0.4 1.5 40.2 2.0 3470
50 19/1.78 8.9 1.4 2.2 0.4 1.7 46.6 2.3 4720
70 19/2.14 10.7 1.4 2.5 0.4 1.8 53.0 2.7 6550
95 19/2.52 12.6 1.6 2.8 0.4 2.0 61.3 3.1 8430
120 37/2.03 14.2 1.6 2.9 0.4 2.2 66.7 3.3 10250
150 37/2.25 15.8 1.8 3.2 0.4 2.3 73.5 3.7 12370
185 37/2.52 17.6 2.0 3.5 0.4 2.5 81.4 4.1 15180



Quick Quote
« 250V [FA-] TTYS, TTYCS, TTYCYS [FA-] TTPYS, TTPYCS, TTPYCYS 0.6/1KV [FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS [FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS »
