0.6/1KV [FA-] SPYCS, SPYCBS, DPYCS, TPYCS, FPYCS [FA-] SPYCYS, SPYCBYS, DPYCYS, TPYCYS, FPYCYS

Standards: JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

FA SPYCS SPYCBS DPYCS TPYCS FPYCS FA SPYCYS SPYCBYS DPYCYS TPYCYS FPYCYS

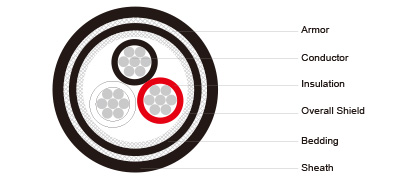

CABLE CONSTRUCTION

Conductor S(D,T) Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling   Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall Shield S Tinned copper wire braid
Bedding Y PVC as per JIS C 3401
Armor C (CB) Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath Y PVC as per JIS C 3401
Core identification   1C Black 2C Black, White 3C Black, White, Red
Outer sheath color   Black

Cable Parameter

0.6/1KV (FA-) SPYCS, SPYCBS

Conductor Thick. of insul- ation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of armor wire (FA-) SPYCS, SPYCBS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1 0.12 1 6.4 0.3 8 0.4 110
2.5 7/0.67 2.01 1 0.12 1 6.9 0.3 8.5 0.4 130
4 7/0.85 2.55 1 0.12 1 7.5 0.3 9.1 0.5 150
6 7/1.04 3.12 1 0.14 1 8.1 0.3 9.7 0.5 180
10 7/1.35 4.05 1 0.14 1.1 9.4 0.3 11 0.6 240
16 7/1.70 5.1 1 0.14 1.1 10.4 0.3 12 0.6 320
25 7/2.14 6.42 1.2 0.14 1.2 12.3 0.3 13.9 0.7 450
35 7/2.52 7.56 1.2 0.16 1.2 13.6 0.3 15.2 0.8 550
50 19/1.78 8.9 1.4 0.16 1.3 15.7 0.3 17.3 0.9 710
70 19/2.14 10.7 1.6 0.16 1.4 18.1 0.3 19.7 1 980
95 19/2.52 12.6 1.6 0.16 1.5 20.3 0.3 21.9 1.1 1280
120 37/2.03 14.2 1.6 0.18 1.6 22.2 0.3 23.8 1.2 1570
150 37/2.25 15.8 1.8 0.18 1.6 24.2 0.3 25.8 1.3 1900
185 37/2.52 17.6 2 0.18 1.7 26.6 0.3 28.2 1.4 2310
240 61/2.25 20.3 2.2 0.2 1.8 30.1 0.4 32.2 1.6 2980
300 61/2.52 22.7 2.4 0.2 2 33.4 0.4 35.5 1.8 3750

0.6/1KV (FA-) SPYCYS, SPYCBYS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of armor wire Thick. of covering (FA-) SPYCYS, SPYCBYS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1 0.12 1 6.4 0.3 0.8 9.9 0.5 150
2.5 7/0.67 2.01 1 0.12 1 6.9 0.3 0.8 10.6 0.5 160
4 7/0.85 2.55 1 0.12 1 7.5 0.3 0.8 11.2 0.6 185
6 7/1.04 3.12 1 0.14 1 8.1 0.3 0.8 12.1 0.6 220
10 7/1.35 4.05 1 0.14 1.1 9.4 0.3 0.9 13.4 0.7 280
16 7/1.70 5.1 1 0.14 1.1 10.4 0.3 0.9 14.6 0.7 370
25 7/2.14 6.42 1.2 0.14 1.2 12.3 0.3 0.9 16.5 0.8 500
35 7/2.52 7.56 1.2 0.16 1.2 13.6 0.3 1 18 0.9 620
50 19/1.78 8.9 1.4 0.16 1.3 15.7 0.3 1 20.3 1 790
70 19/2.14 10.7 1.6 0.16 1.4 18.1 0.3 1.1 22.9 1.1 1100
95 19/2.52 12.6 1.6 0.16 1.5 20.3 0.3 1.1 21.9 1.1 1400
120 37/2.03 14.2 1.6 0.18 1.6 22.2 0.3 1.2 23.8 1.2 1700
150 37/2.25 15.8 1.8 0.18 1.6 24.2 0.3 1.2 25.8 1.3 2020
185 37/2.52 17.6 2 0.18 1.7 26.6 0.3 1.3 28.2 1.4 2500
240 61/2.25 20.3 2.2 0.2 1.8 30.1 0.4 1.4 32.2 1.6 3200
300 61/2.52 22.7 2.4 0.2 2 33.4 0.4 1.5 35.5 1.8 4000

0.6/1KV (FA-) DPYCS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire (FA-) DPYCS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 11.3 0.3 12.6 0.5 265
2.5 7/0.67 2.01 1.0 0.14 1.2 12.2 0.3 13.5 0.5 310
4 7/0.85 2.55 1.0 0.16 1.2 13.4 0.3 14.7 0.6 380
6 7/1.04 3.12 1.0 0.16 1.3 14.4 0.3 15.9 0.8 460
10 7/1.35 4.05 1.0 0.16 1.3 16.4 0.3 18.0 0.9 610
16 7/1.70 5.1 1.0 0.16 1.4 18.7 0.3 20.2 1.0 790
25 7/2.14 6.42 1.2 0.18 1.6 22.5 0.3 24.1 1.2 1100
35 7/2.52 7.56 1.2 0.18 1.7 25.0 0.3 26.6 1.3 1400
50 19/1.78 8.9 1.4 0.18 1.8 29.1 0.3 30.6 1.5 1800
70 19/2.14 10.7 1.6 0.2 2.0 34.0 0.4 36.1 1.8 2640
95 19/2.52 12.6 1.6 0.26 2.2 38.7 0.4 40.7 2.0 3410
120 37/2.03 14.2 1.6 0.26 2.3 42.1 0.4 44.2 2.2 3900
150 37/2.25 15.8 1.8 0.18 1.6 24.2 0.3 25.8 1.3 1900
185 37/2.52 17.6 2 0.18 1.7 26.6 0.3 28.2 1.4 2310
240 61/2.25 20.3 2.2 0.2 1.8 30.1 0.4 32.2 1.6 2980
300 61/2.52 22.7 2.4 0.2 2 33.4 0.4 35.5 1.8 3750

0.6/1KV (FA-) DPYCYS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire Thick. of covering (FA-) DPYCYS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 11.3 0.3 0.9 14.6 0.6 325
2.5 7/0.67 2.01 1.0 0.14 1.2 12.2 0.3 0.9 15.5 0.6 375
4 7/0.85 2.55 1.0 0.16 1.2 13.4 0.3 1.0 16.9 0.7 455
6 7/1.04 3.12 1.0 0.16 1.3 14.4 0.3 1.0 18.1 0.9 550
10 7/1.35 4.05 1.0 0.16 1.3 16.4 0.3 1.0 20.2 1.0 710
16 7/1.70 5.1 1.0 0.16 1.4 18.7 0.3 1.1 22.6 1.1 910
25 7/2.14 6.42 1.2 0.18 1.6 22.5 0.3 1.2 26.7 1.3 1290
35 7/2.52 7.56 1.2 0.18 1.7 25.0 0.3 1.3 29.3 1.5 1620
50 19/1.78 8.9 1.4 0.18 1.8 29.1 0.3 1.4 33.6 1.7 2030
70 19/2.14 10.7 1.6 0.2 2.0 34.0 0.4 1.5 39.3 2.0 2900
95 19/2.52 12.6 1.6 0.26 2.2 38.7 0.4 1.6 44.2 2.2 3700
120 37/2.03 14.2 1.6 0.26 2.3 42.1 0.4 1.7 47.9 2.4 4320
150 37/2.25 15.8 1.8 0.18 1.6 24.2 0.3 1.2 25.8 1.3 2020
185 37/2.52 17.6 2 0.18 1.7 26.6 0.3 1.3 28.2 1.4 2500
240 61/2.25 20.3 2.2 0.2 1.8 30.1 0.4 1.4 32.2 1.6 3200
300 61/2.52 22.7 2.4 0.2 2 33.4 0.4 1.5 35.5 1.8 4000

0.6/1KV (FA-) TPYCS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire (FA-) TPYCS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 11.9 0.3 13.2 0.5 305
2.5 7/0.67 2.01 1.0 0.14 1.2 12.9 0.3 14.2 0.6 360
4 7/0.85 2.55 1.0 0.16 1.3 14.4 0.3 15.7 0.6 455
6 7/1.04 3.12 1.0 0.16 1.3 15.3 0.3 16.8 0.8 530
10 7/1.35 4.05 1.0 0.16 1.4 17.5 0.3 19.0 1.0 730
16 7/1.70 5.1 1.0 0.16 1.5 19.8 0.3 21.4 1.1 990
25 7/2.14 6.42 1.2 0.18 1.6 24.0 0.3 25.6 1.3 1400
35 7/2.52 7.56 1.2 0.18 1.7 26.7 0.3 28.2 1.4 1850
50 19/1.78 8.9 1.4 0.2 1.9 31.1 0.3 32.7 1.6 2450
70 19/2.14 10.7 1.6 0.26 2.1 36.6 0.4 38.7 1.9 3350
95 19/2.52 12.6 1.6 0.26 2.3 41.3 0.4 43.4 2.2 4390
120 37/2.03 14.2 1.6 0.26 2.4 45.0 0.4 47.1 2.4 5350
150 37/2.25 15.8 1.8 0.26 2.6 49.8 0.4 51.8 2.6 6100
185 37/2.52 17.6 2.0 0.26 2.8 54.9 0.4 57.0 2.9 7530

0.6/1KV (FA-) TPYCYS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire Thick. of covering (FA-) TPYCYS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 11.9 0.3 0.9 15.2 0.6 365
2.5 7/0.67 2.01 1.0 0.14 1.2 12.9 0.3 1.0 16.4 0.7 430
4 7/0.85 2.55 1.0 0.16 1.3 14.4 0.3 1.0 17.9 0.7 535
6 7/1.04 3.12 1.0 0.16 1.3 15.3 0.3 1.0 18.9 1.0 610
10 7/1.35 4.05 1.0 0.16 1.4 17.5 0.3 1.1 21.4 1.1 830
16 7/1.70 5.1 1.0 0.16 1.5 19.8 0.3 1.1 23.8 1.2 1100
25 7/2.14 6.42 1.2 0.18 1.6 24.0 0.3 1.2 28.2 1.4 1550
35 7/2.52 7.56 1.2 0.18 1.7 26.7 0.3 1.3 31.0 1.6 2020
50 19/1.78 8.9 1.4 0.2 1.9 31.1 0.3 1.4 35.7 1.8 2670
70 19/2.14 10.7 1.6 0.26 2.1 36.6 0.4 1.6 42.1 2.1 3650
95 19/2.52 12.6 1.6 0.26 2.3 41.3 0.4 1.7 47.0 2.3 4730
120 37/2.03 14.2 1.6 0.26 2.4 45.0 0.4 1.8 50.9 2.5 5740
150 37/2.25 15.8 1.8 0.26 2.6 49.8 0.4 1.9 55.9 2.8 6570
185 37/2.52 17.6 2.0 0.26 2.8 54.9 0.4 2.0 61.3 3.1 8080

0.6/1KV (FA-) FPYCS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire (FA-) FPYCS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 12.4 0.3 14.0 0.7 400
2.5 7/0.67 2.01 1.0 0.16 1.2 13.7 0.3 15.3 0.8 480
4 7/0.85 2.55 1.0 0.16 1.3 15.1 0.3 16.7 0.8 600
6 7/1.04 3.12 1.0 0.16 1.4 16.7 0.3 18.3 0.9 740
10 7/1.35 4.05 1.0 0.16 1.4 19.1 0.3 20.7 1.0 1030
16 7/1.70 5.1 1.0 0.18 1.5 22.0 0.3 23.6 1.2 1350
25 7/2.14 6.42 1.2 0.18 1.7 26.5 0.3 28.1 1.4 1950
35 7/2.52 7.56 1.2 0.18 1.8 29.5 0.3 31.1 1.6 2540
50 19/1.78 8.9 1.4 0.20 2.0 34.5 0.4 36.6 1.8 3480
70 19/2.14 10.7 1.4 0.26 2.2 39.5 0.4 41.6 2.1 4750
95 19/2.52 12.6 1.6 0.26 2.4 45.9 0.4 48.0 2.4 6280
120 37/2.03 14.2 1.6 0.26 2.6 50.1 0.4 52.1 2.6 7590
150 37/2.25 15.8 1.8 0.26 2.8 55.3 0.4 57.4 2.9 9150
185 37/2.52 17.6 2.0 0.26 3.0 61.2 0.4 63.2 3.2 11150

0.6/1KV (FA-) FPYCYS

Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. over bedding Dia. of steel wire Thick. of covering (FA-) TPYCYS
Size Construction O.D Nom.  overall dia. Tolerance Cable weight
mm² No./mm mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 0.14 1.2 12.4 0.3 1.0 16.0 0.8 490
2.5 7/0.67 2.01 1.0 0.16 1.2 13.7 0.3 1.0 17.4 0.9 580
4 7/0.85 2.55 1.0 0.16 1.3 15.1 0.3 1.0 18.9 0.9 720
6 7/1.04 3.12 1.0 0.16 1.4 16.7 0.3 1.1 20.5 1.0 880
10 7/1.35 4.05 1.0 0.16 1.4 19.1 0.3 1.1 23.1 1.2 1190
16 7/1.70 5.1 1.0 0.18 1.5 22.0 0.3 1.2 26.1 1.3 1550
25 7/2.14 6.42 1.2 0.18 1.7 26.5 0.3 1.3 30.9 1.5 2200
35 7/2.52 7.56 1.2 0.18 1.8 29.5 0.3 1.4 34.0 1.7 2780
50 19/1.78 8.9 1.4 0.20 2.0 34.5 0.4 1.5 39.8 2.0 3750
70 19/2.14 10.7 1.4 0.26 2.2 39.5 0.4 1.6 45.1 2.3 5280
95 19/2.52 12.6 1.6 0.26 2.4 45.9 0.4 1.8 51.8 2.6 6750
120 37/2.03 14.2 1.6 0.26 2.6 50.1 0.4 1.9 56.2 2.8 8150
150 37/2.25 15.8 1.8 0.26 2.8 55.3 0.4 2.0 61.8 3.1 1210
185 37/2.52 17.6 2.0 0.26 3.0 61.2 0.4 2.2 67.9 3.4 11980
